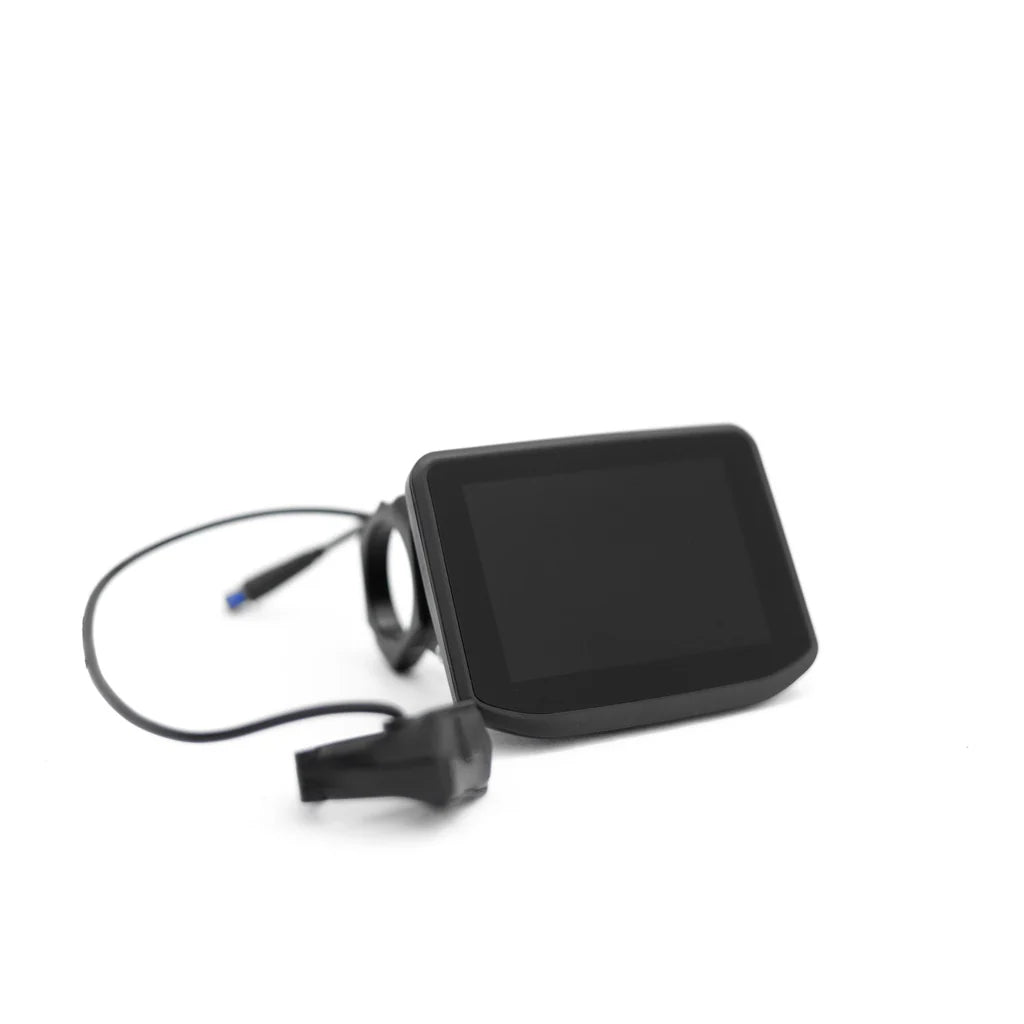

EBMX X-9000 BC351 Large Display
The EBMX BC351 is an all-new color display for the EBMX X-9000 controller, running the EBMX UI with ride data. No setup is required: just install and ride. Firmware 830 or newer is required.
✅ FITMENT
- EBMX X-9000 V2 controller
- EBMX X-9000 V3 controller
Does not fit the X-9000 V1 (2024 and earlier) or any other controller.
Not sure if it fits your bike? Email support@tbelectricmoto.com and we'll confirm before you order.
Features
- 3.5 inch color TFT display

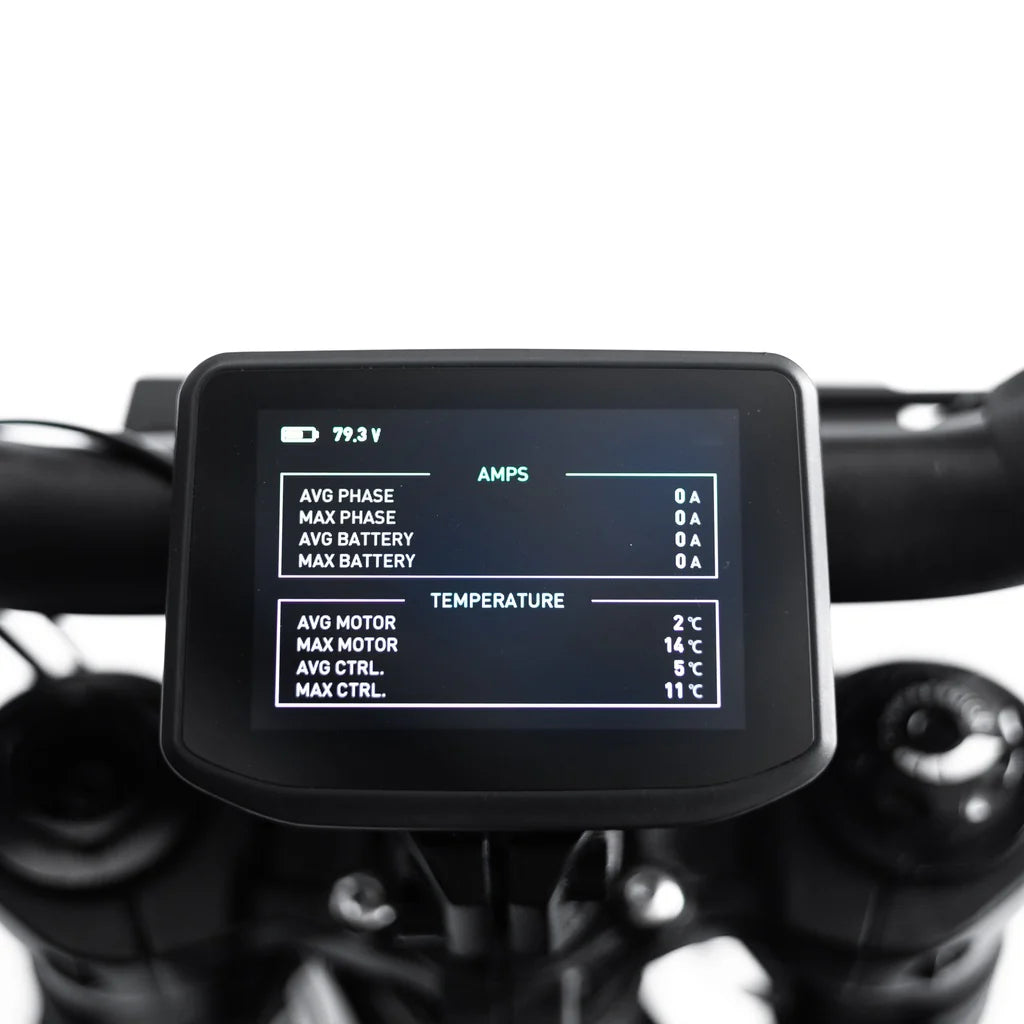

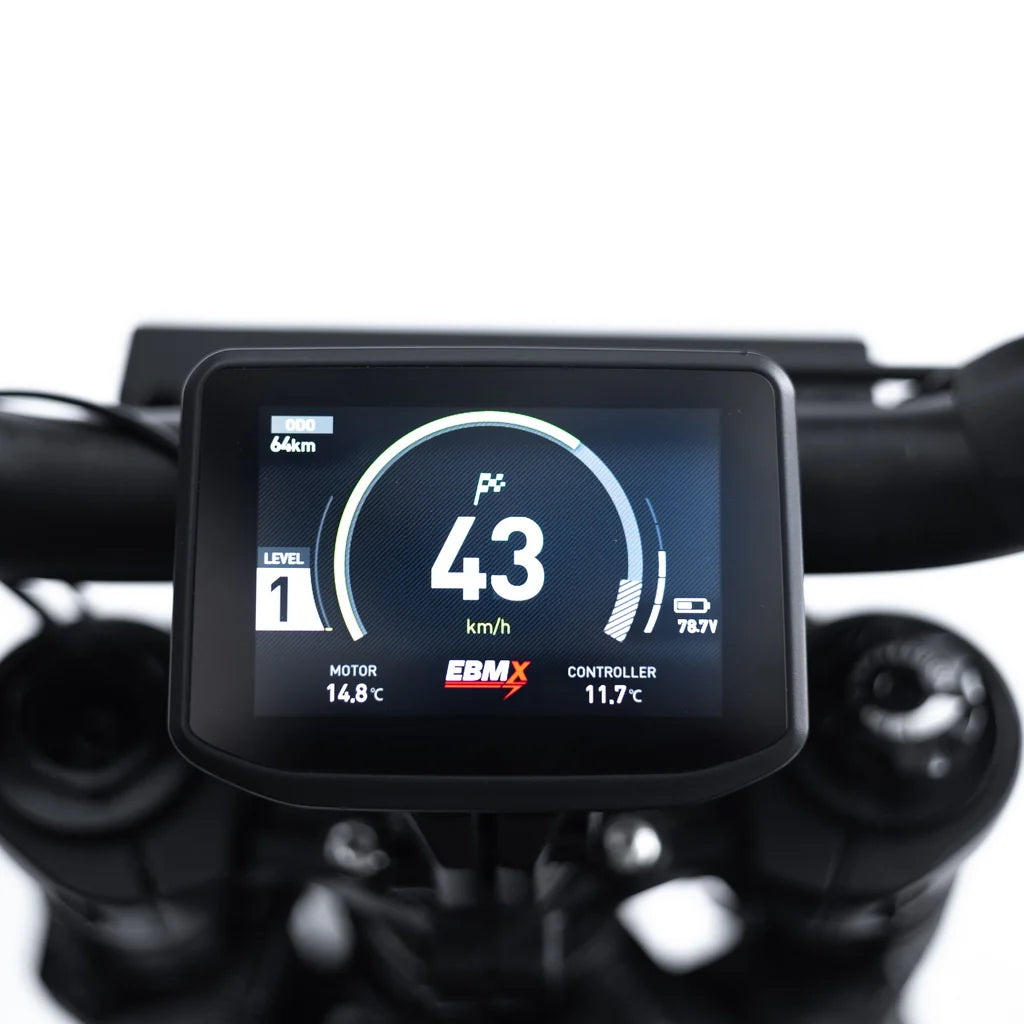

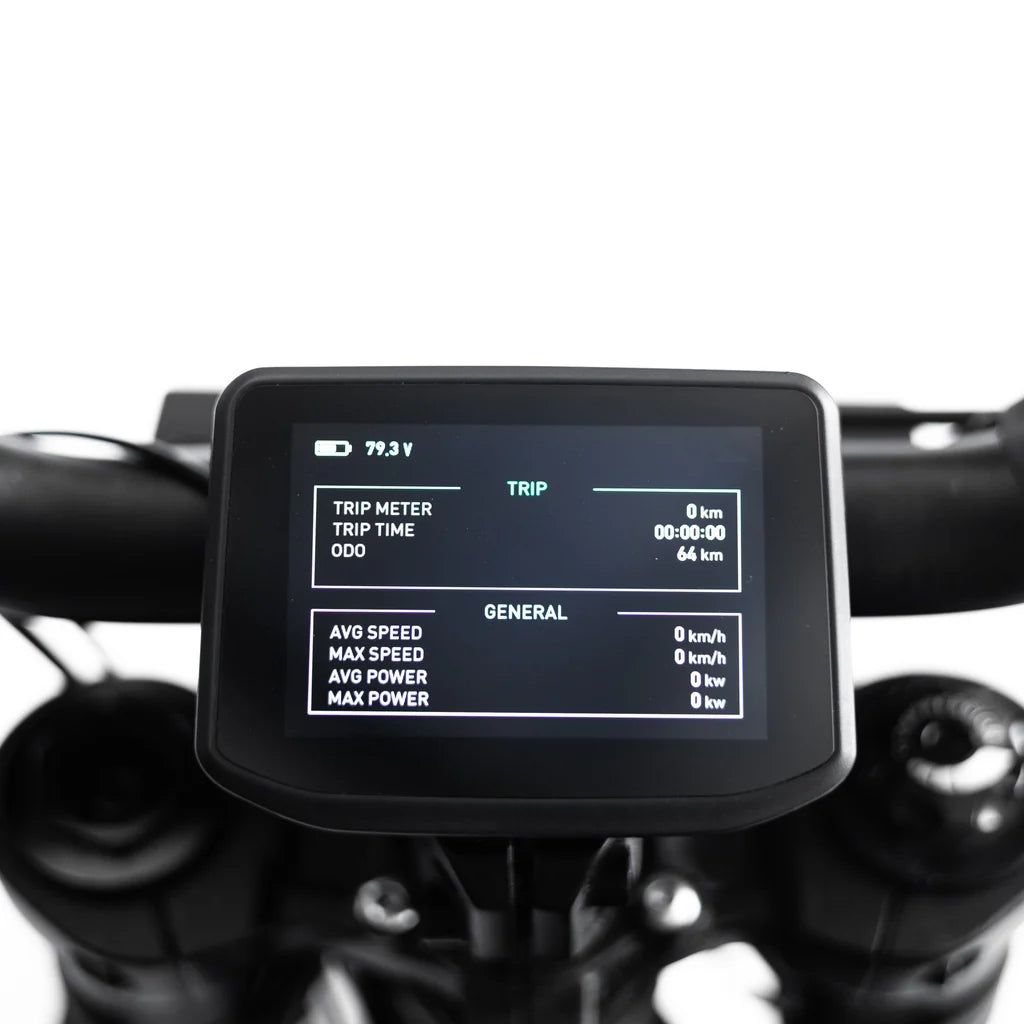

- EBMX UI with ride data

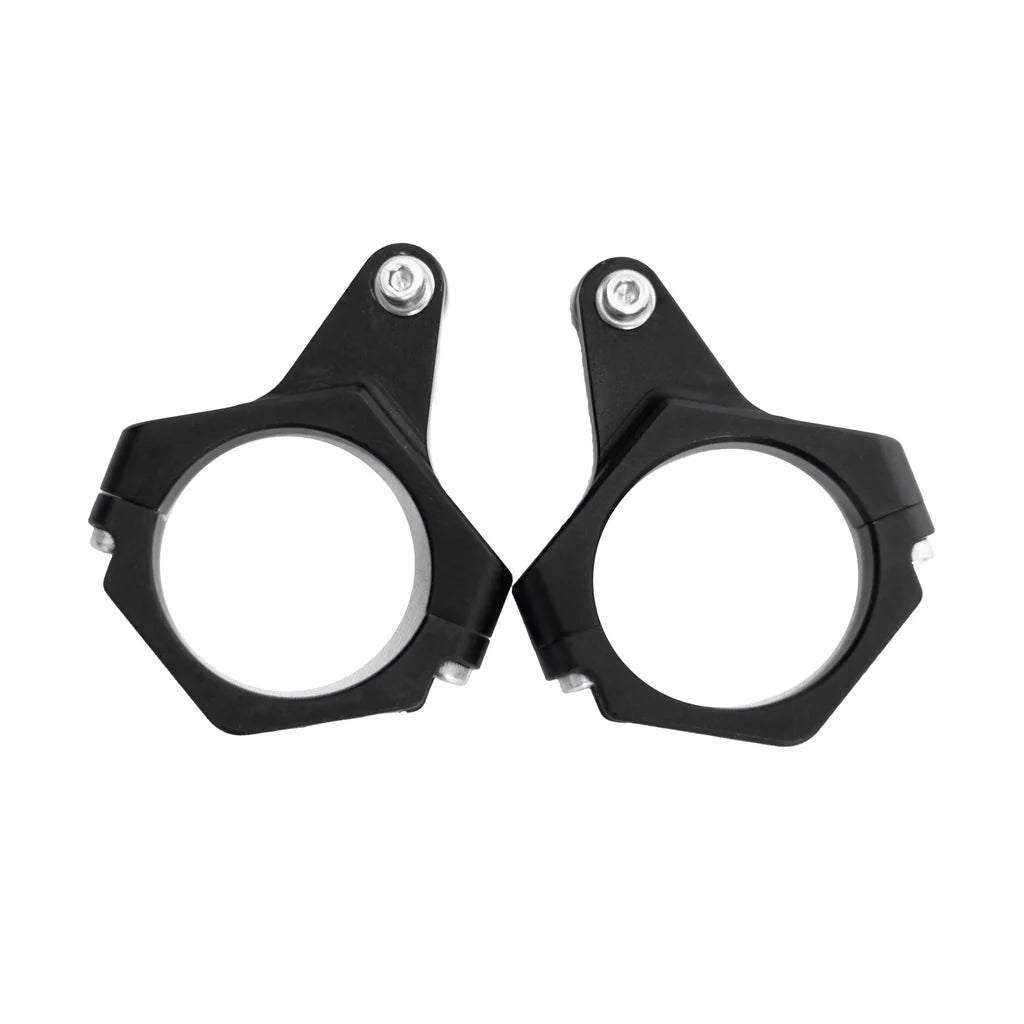

- CNC mounts for MTB and moto bars (31.8mm and 28.6mm)
- No setup required (firmware 830 or newer)
X-9000 V2
Best for: Riders running an EBMX X-9000 V2 controller.
What's Included: 3.5 inch TFT display, CNC mounts for MTB and moto bars (31.8mm and 28.6mm), and a new CAN bus 2-1 cable.
Not included: CNC display case and Ultra Bee drop-in mount (both sold separately).
X-9000 V3
Best for: Riders running an EBMX X-9000 V3 controller.
What's Included: 3.5 inch TFT display and CNC mounts for MTB and moto bars (31.8mm and 28.6mm). The V3 version uses the stock 1-2 harness that comes with the X-9000, so no extra cable is needed.
Not included: CAN bus 2-1 cable (not needed for V3), CNC display case and Ultra Bee drop-in mount (sold separately).
Available Separately
- CNC case for the display (Purple, Red, Black, Blue)
- Drop-in mount for the Surron Ultra Bee
FAQ
Q: Which controllers does the BC351 work with?
A: The EBMX X-9000 V2 and X-9000 V3. Choose the version that matches your controller.
Q: Does it work with the X-9000 V1?
A: No. It is not compatible with the X-9000 V1 (2024 and earlier) or any other controller.
Q: What firmware do I need?
A: Firmware 830 or newer is required.
Q: Does it need any setup?
A: No setup is required. Just install and ride.
Q: What bar sizes do the mounts fit?
A: The CNC mounts fit MTB and moto bars, 31.8mm and 28.6mm.
Q: Is the CNC case included?
A: No. The CNC case (Purple, Red, Black, Blue) and the Ultra Bee drop-in mount are sold separately.
Q: Why does only the V2 version include a cable?
A: The V2 version includes a new CAN bus 2-1 cable. The V3 version uses the stock 1-2 harness that comes with the X-9000.
