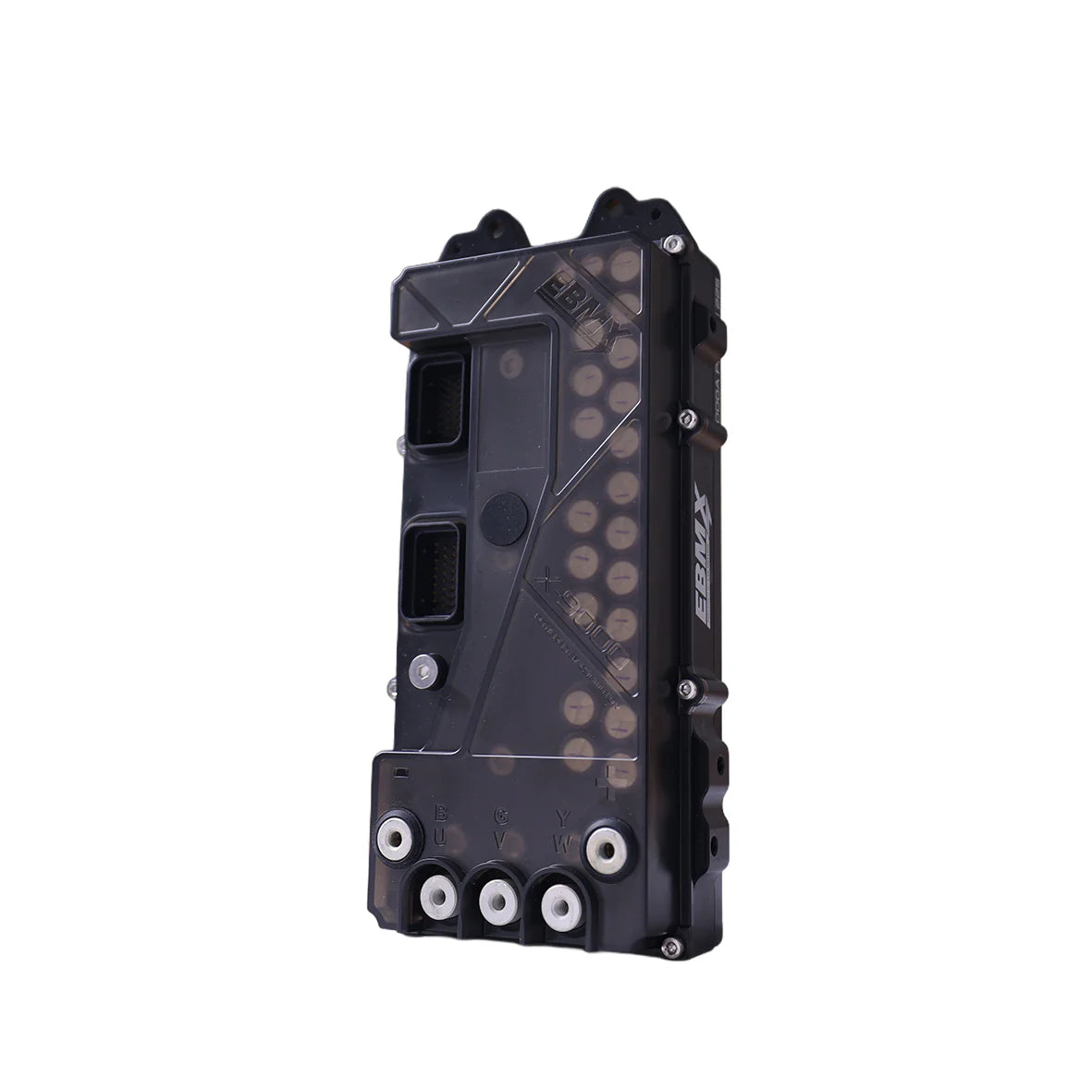

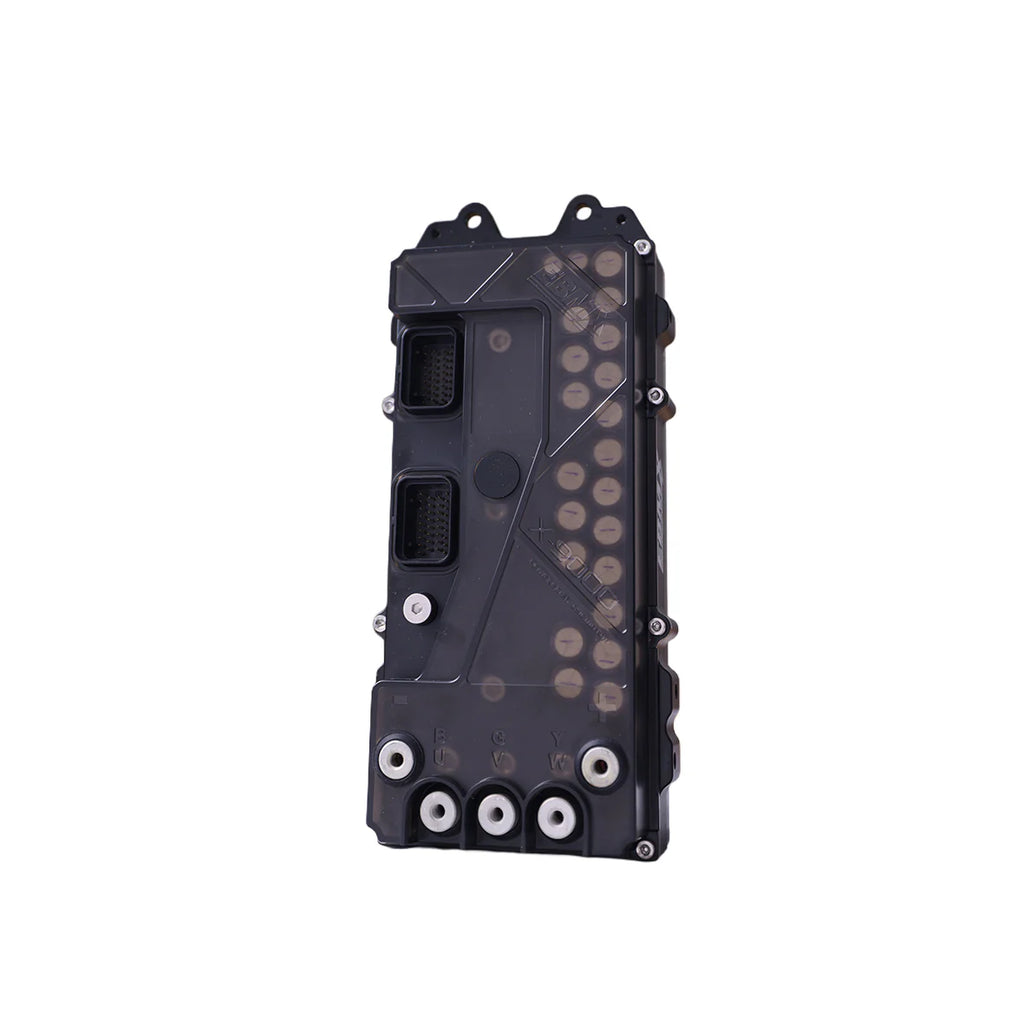

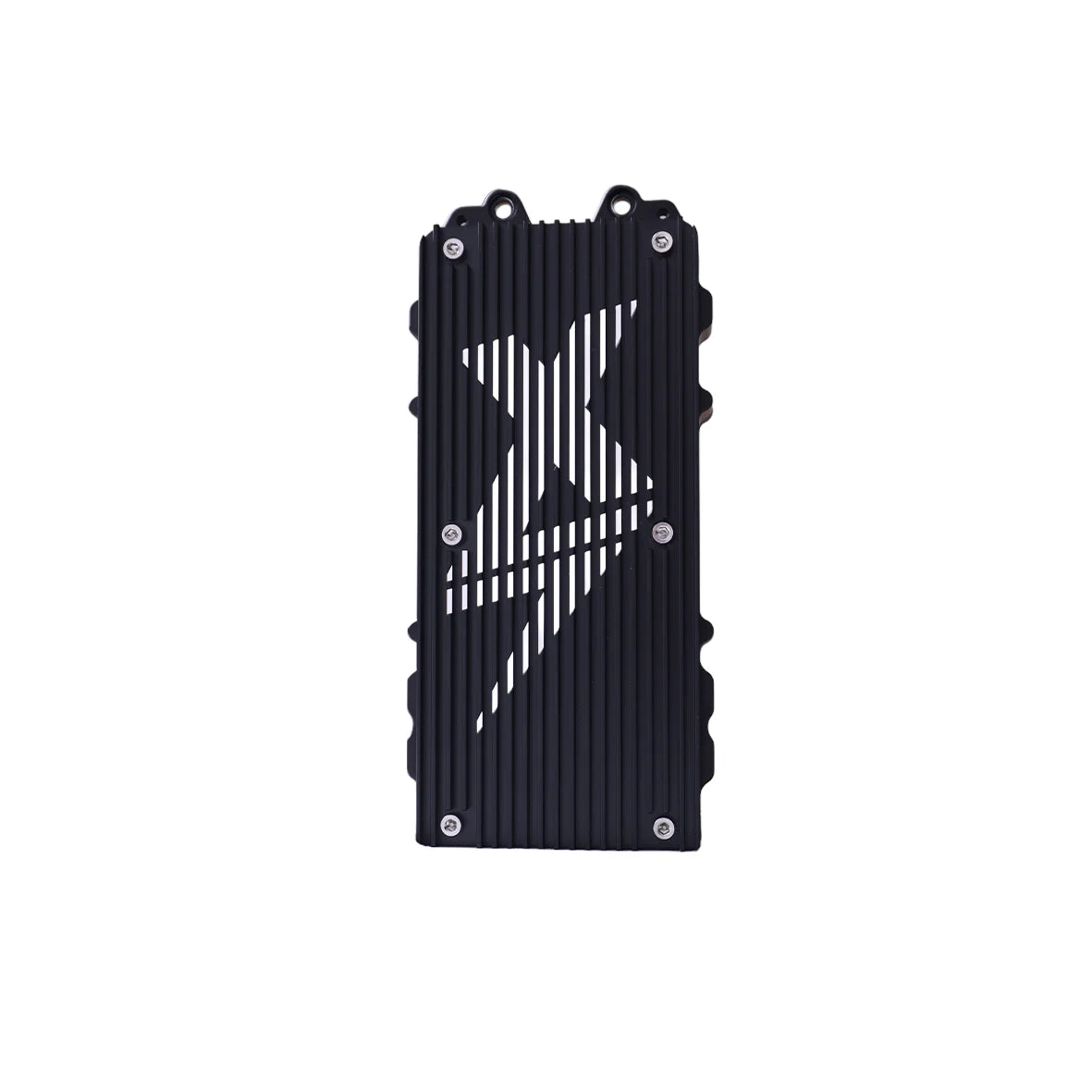

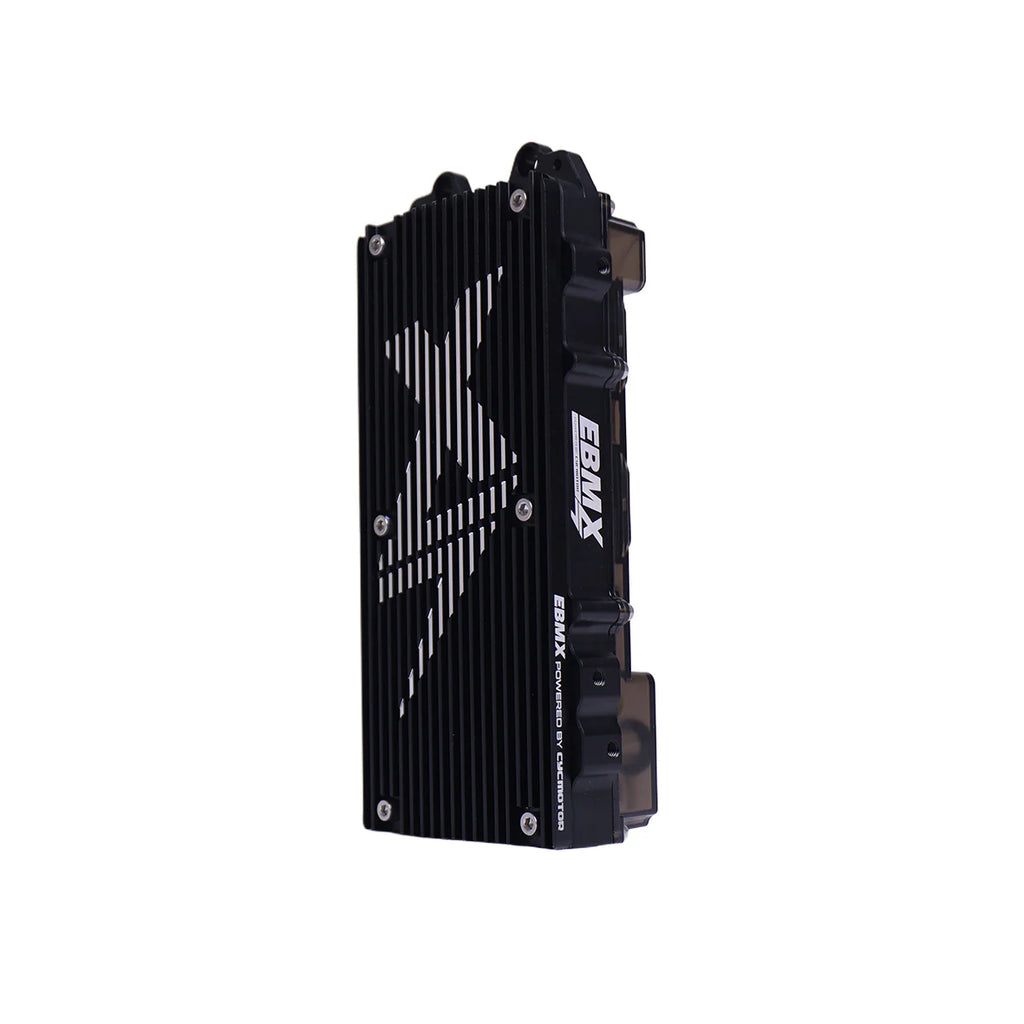

EBMX X-9000 V3 Upgraded Controller

EBMX X-9000 V3 Upgraded Controller

Built from the ground up for serious riders and racers, the EBMX X-9000 V3 is more than a controller: it's a complete performance ecosystem. With a re-engineered power stage, a new logic system and a redesigned user interface, it's EBMX's most advanced, rider-tuned controller, delivering power, precision and customization on the trail or the racetrack. Buy it as the controller only, or as a kit with the bike-specific mounting and wiring harness for your Sur-Ron, Talaria, E-Ride Pro or Rerode.

✅ BIKE FITMENT

• 2017-2024 Surron Light Bee X
• 2025 Surron Light Bee X
• 2026 Surron Light Bee X
• Surron Light Bee S
• Surron Ultra Bee
• Talaria Sting MX3
• Talaria Sting MX4
• Talaria Sting MX5
• Talaria XXX
• Talaria XXX Pro
• E-Ride Pro SS 1.0
• E-Ride Pro SS 2.0 (with V3 battery plug)
• E-Ride Pro SS 3.0 (with or without breaker)
• E-Ride Pro SR
• E-Ride Pro S
• Rerode R1
• QS138 motor builds

Note: There is no dedicated kit option for the Surron Light Bee S, E-Ride Pro S or E-Ride Pro SS 1.0. Email us before ordering so we can confirm which harness you need.

Does not fit V2 X-9000 wiring harnesses. V2 harnesses are NOT compatible with the V3 controller (colored V2 heatsinks are compatible).

Not sure if it fits your bike? Email support@tbelectricmoto.com and we'll confirm before you order.

Power Meets Control

• 50kW output | 1000A phase current | 1600A burst
• 30 x 120V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned multilayer PCB and CNC copper busbars for superior thermal control
• Water-cooling option for race-level endurance
• IP67-rated CNC alloy case, built to take the punishment

Next Gen Logic

• Industry-leading 68 IO support: runs anything from race bikes to full-featured builds
• Custom EBMX VESC firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control and greater efficiency
• Integrated IMU for wheel-lift assist: fully programmable for launch control, anti-loop or stunt mode
• Dual hall throttle ready: two ADC inputs for increased throttle safety and reliability

Race-Ready, Rider Tuned

• 6 fully customizable power levels (Race + Street modes)
• Graphical UI for throttle tuning, regen braking and EBMX E-Clutch
• Load and go battery profiles: over 15 plug-and-play setups
• Preloaded motor tunes: 30+ motors supported out of the box
• One-touch updates: OTA firmware and compatibility expansion

In the Box

• Controller
• Display
• Bluetooth module
• 1-2 harness

Choose the controller only, or a kit with the bike-specific harness.

This listing has 13 options. They are grouped below by bike; each heading uses the exact option names.

Controller Only (No Harness)

Best for: Riders who already have a compatible X-9000 V3 harness, or custom builds.

What's Included: The X-9000 V3 controller. The In the Box list above also names the display, Bluetooth module and 1-2 harness; email us to confirm exactly what ships with the controller-only option.

Not included: The bike-specific plug-and-play harness and mount kit. V2 X-9000 harnesses are not compatible.

Surron Light Bee Kit / Surron Ultra Bee Kit

Best for: Surron Light Bee X (Surron Light Bee Kit) or Surron Ultra Bee (Surron Ultra Bee Kit) owners who want a plug-and-play install.

What's Included: X-9000 V3 controller plus the bike-specific plug-and-play harness and mount kit, with the kit contents listed in the specifications (black air-cooled heat sink, SW102T color display, thumb throttle, Bluetooth module and 1-2 harness).

Not included: Colored heatsinks (sold separately). V2 X-9000 harnesses are not compatible.

Talaria Sting MX3/4/5 Kit / Talaria XXX Kit / Talaria XXX Pro Kit

Best for: Talaria Sting MX3, MX4 or MX5 (Talaria Sting MX3/4/5 Kit), Talaria XXX (Talaria XXX Kit) or Talaria XXX Pro (Talaria XXX Pro Kit) owners.

What's Included: X-9000 V3 controller plus the bike-specific plug-and-play harness and mount kit, with the kit contents listed in the specifications (black air-cooled heat sink, SW102T color display, thumb throttle, Bluetooth module and 1-2 harness).

Not included: Colored heatsinks (sold separately). V2 X-9000 harnesses are not compatible.

E-Ride Pro SS 2.0 V3 Battery Lead (With Breaker) Kit / E-Ride Pro SS 2.0 V3 Battery Lead (No Breaker) Kit / E-Ride Pro SS 3.0 (With Breaker) Kit / E-Ride Pro SS 3.0 (No Breaker) Kit / E-Ride Pro SR Kit

Best for: E-Ride Pro owners. For the SS 2.0 (with the V3 battery lead) and the SS 3.0, pick the With Breaker or No Breaker option that matches your bike. Pick the E-Ride Pro SR Kit for the SR.

What's Included: X-9000 V3 controller plus the bike-specific plug-and-play harness and mount kit, with the kit contents listed in the specifications (black air-cooled heat sink, SW102T color display, thumb throttle, Bluetooth module and 1-2 harness).

Not included: Colored heatsinks (sold separately). V2 X-9000 harnesses are not compatible.

Rerode R1 Kit

Best for: Rerode R1 owners.

What's Included: X-9000 V3 controller plus the bike-specific plug-and-play harness and mount kit, with the kit contents listed in the specifications (black air-cooled heat sink, SW102T color display, thumb throttle, Bluetooth module and 1-2 harness).

Not included: Colored heatsinks (sold separately). V2 X-9000 harnesses are not compatible.

QS138 Harness Kit

Best for: Builds running a QS138 motor.

What's Included: X-9000 V3 controller with the QS138 harness kit.

Not included: Colored heatsinks (sold separately). V2 X-9000 harnesses are not compatible.

Compatible Motors

The current list of motors the X-9000 is compatible with:

• OEM Surron Light Bee
• OEM Surron Ultra Bee
• OEM Talaria Sting MX3
• OEM Talaria Sting R MX4
• OEM Talaria Sting MX5
• EBMX XLB-60
• EBMX XTA-60
• EBMX XUB-80
• KO RS Surron
• KO F Spec Surron
• KO F Spec Talaria
• QS138 90H
• QS138 70H
• OEM E-Ride Pro SS 2.0
• OEM E-Ride Pro SS 3.0
• OEM E-Ride Pro SR

Colored Heatsinks (Sold Separately)

Please note: all X-9000 controllers sent from July 2025 are Version 3. Colored V2 heatsinks are compatible with the V3 controller. V2 wiring harnesses are NOT compatible.

EBMX X-9000 V3 Specifications

FAQ

Q: Does the X-9000 V3 come with a harness for my bike?
A: The Controller Only (No Harness) option does not. The bike kits add the bike-specific plug-and-play harness and mount kit.

Q: Will my X-9000 V2 harness work with the V3?
A: No. V2 wiring harnesses are not compatible with the V3. Colored V2 heatsinks are compatible.

Q: How much power can it handle?
A: 50kW output with 1000A continuous and 1600A burst phase current, on a 48V-93V (22S) working voltage range.

Q: Which motors does it support?
A: It comes with 30+ preloaded motor tunes, including OEM Surron, Talaria and E-Ride Pro motors, EBMX XLB-60, XTA-60 and XUB-80, KO motors and QS138 motors.

Q: Is it waterproof?
A: Yes. The CNC alloy case is IP67 rated.

Q: Which display comes in the kit?
A: The kit contents list an SW102T color display, plus a thumb throttle and Bluetooth module.

Q: What warranty does it have?
A: 2 years.

Not for use on public roads. May increase power beyond factory specs, void your bike's manufacturer warranty, and make your vehicle non-compliant with local laws. Riders must be at least 16 years old and are responsible for following all local laws and regulations.

Off-road competition use only.
