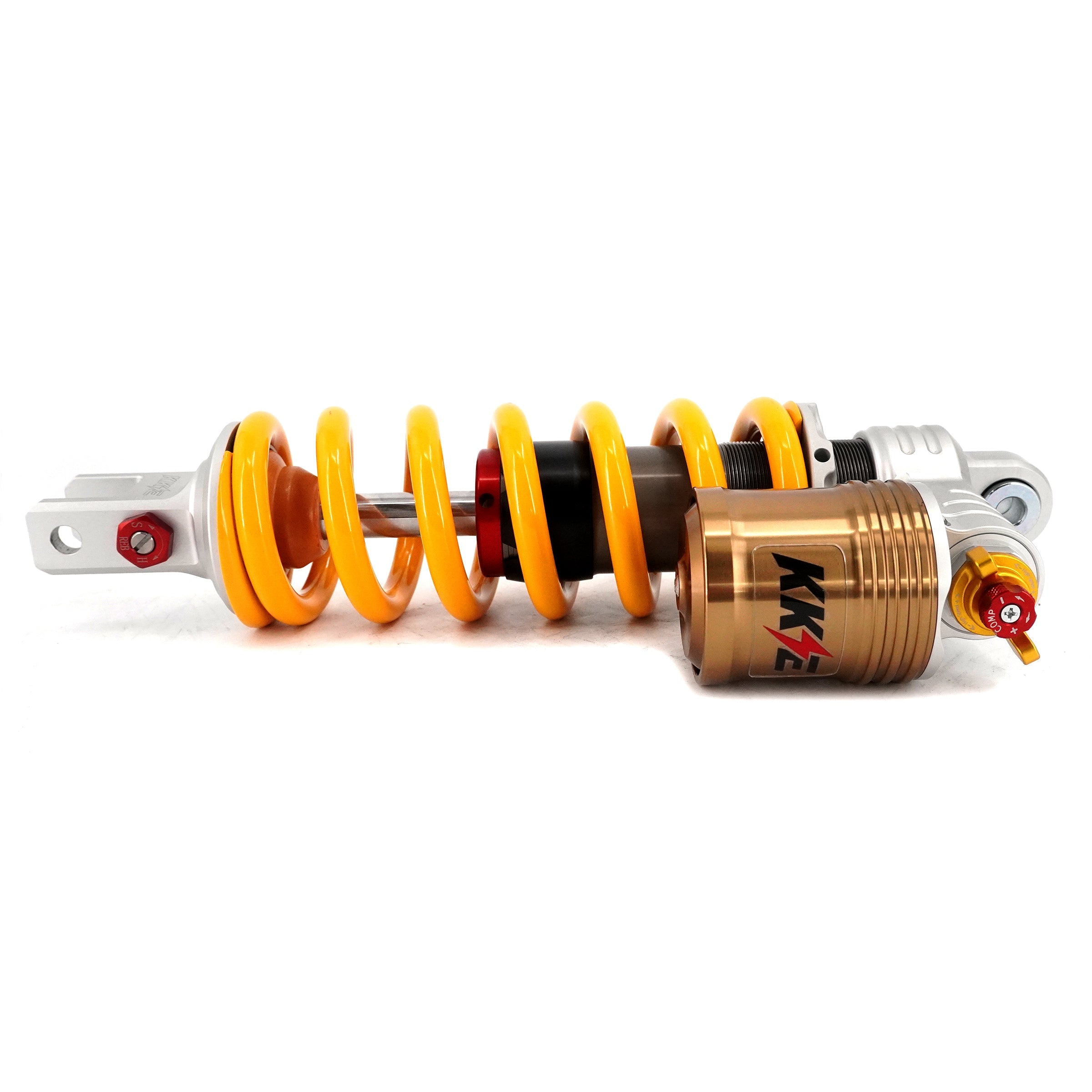

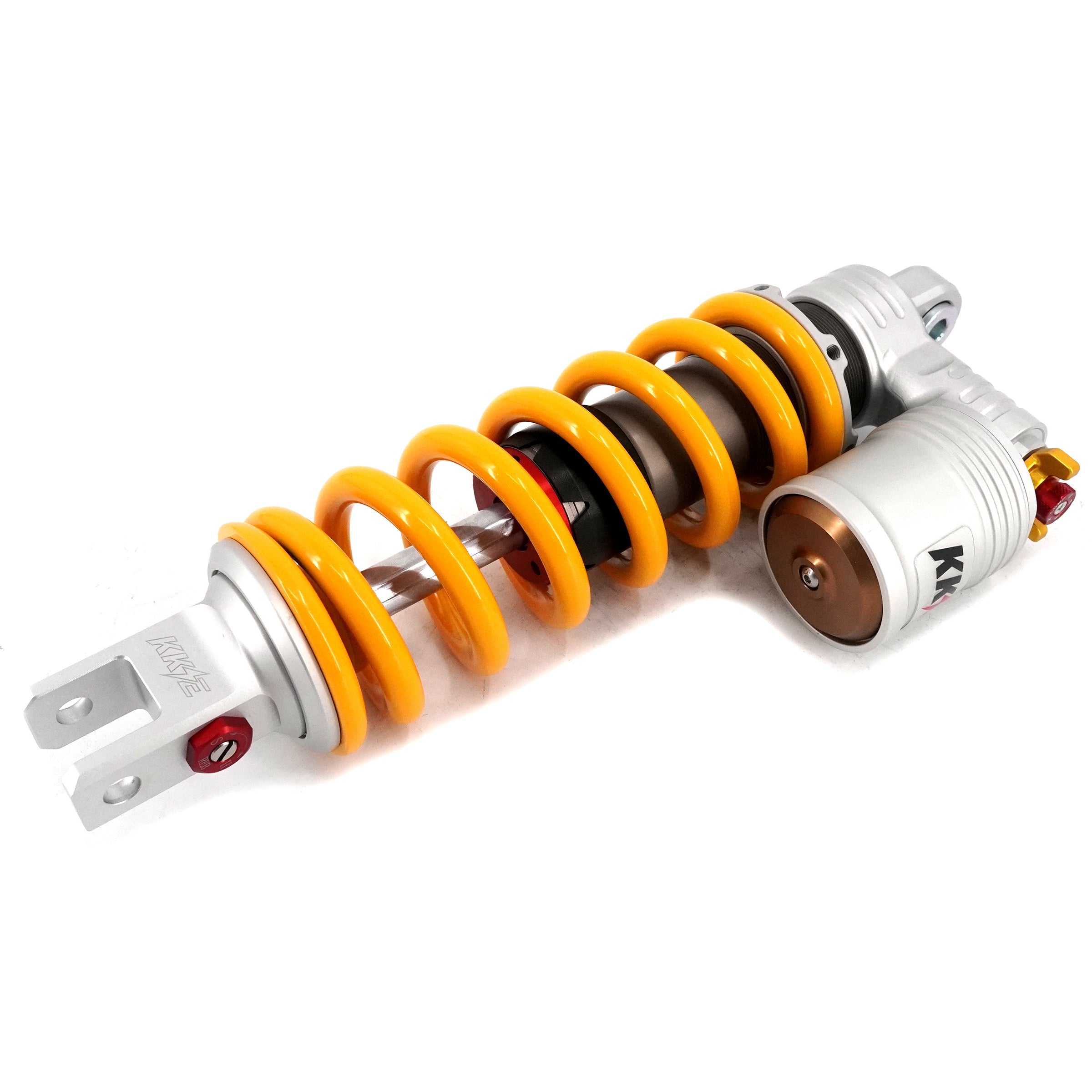

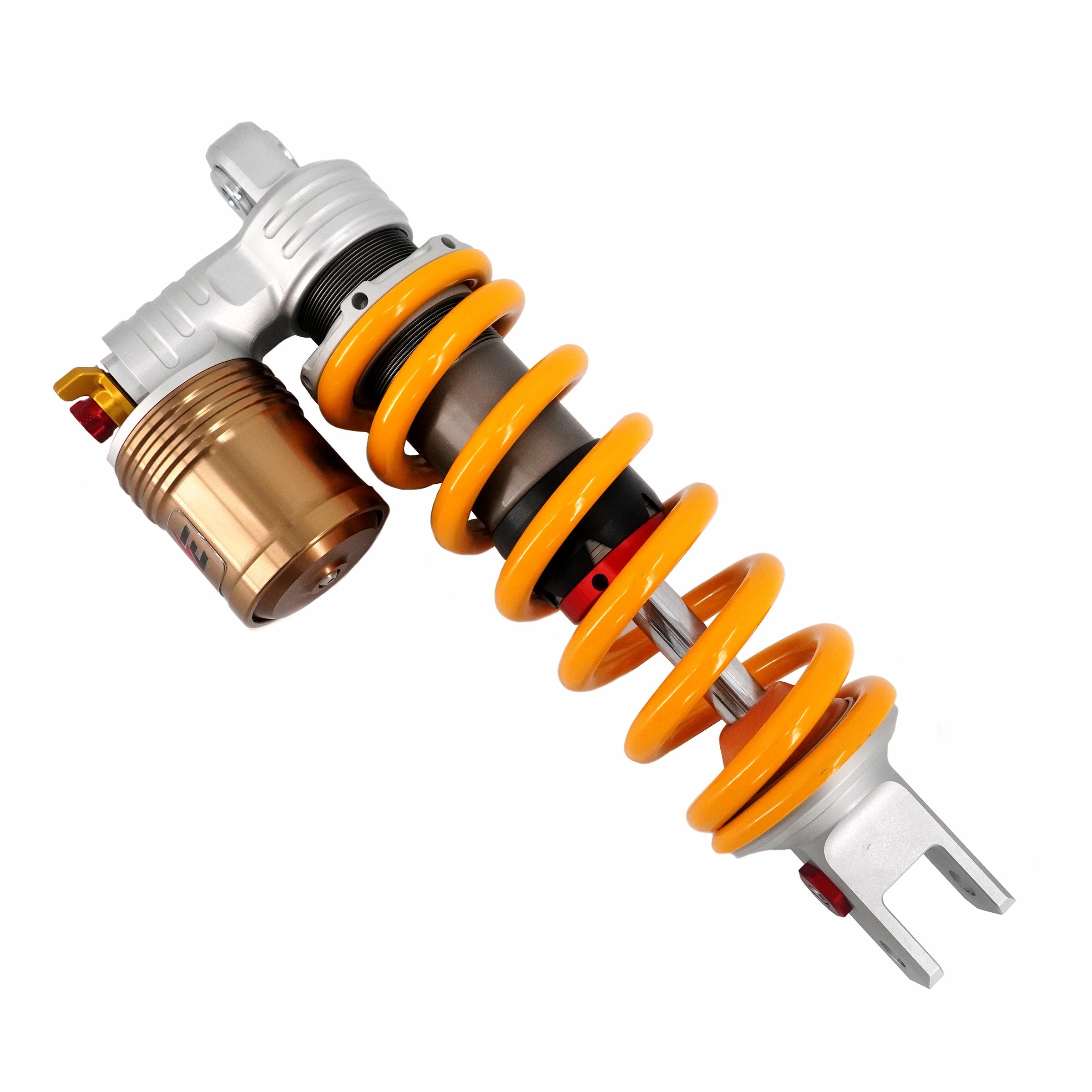

Specifications:
-
Total Length: 320mm
-
Top Mounting Size: 10x24
-
Bottom Fork: 10x24.2
-
Upper Mount: AL6061-T6, matte silver/black, full CNC machining
-
Lock Nut: AL6061-T6, matte silver/black, full CNC machining
-
Spring Guide Bushing: POM, black, oil cylinder protection
-

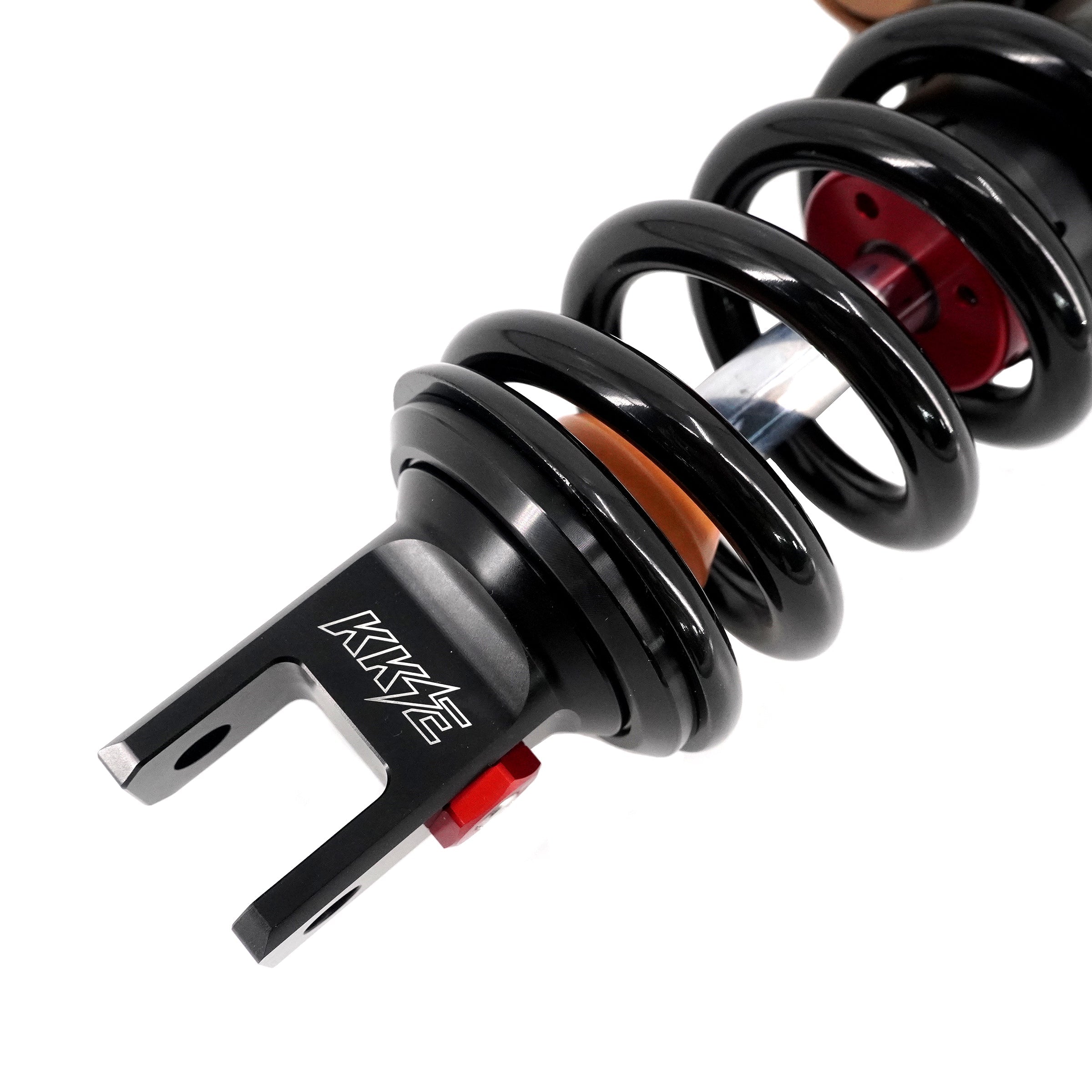

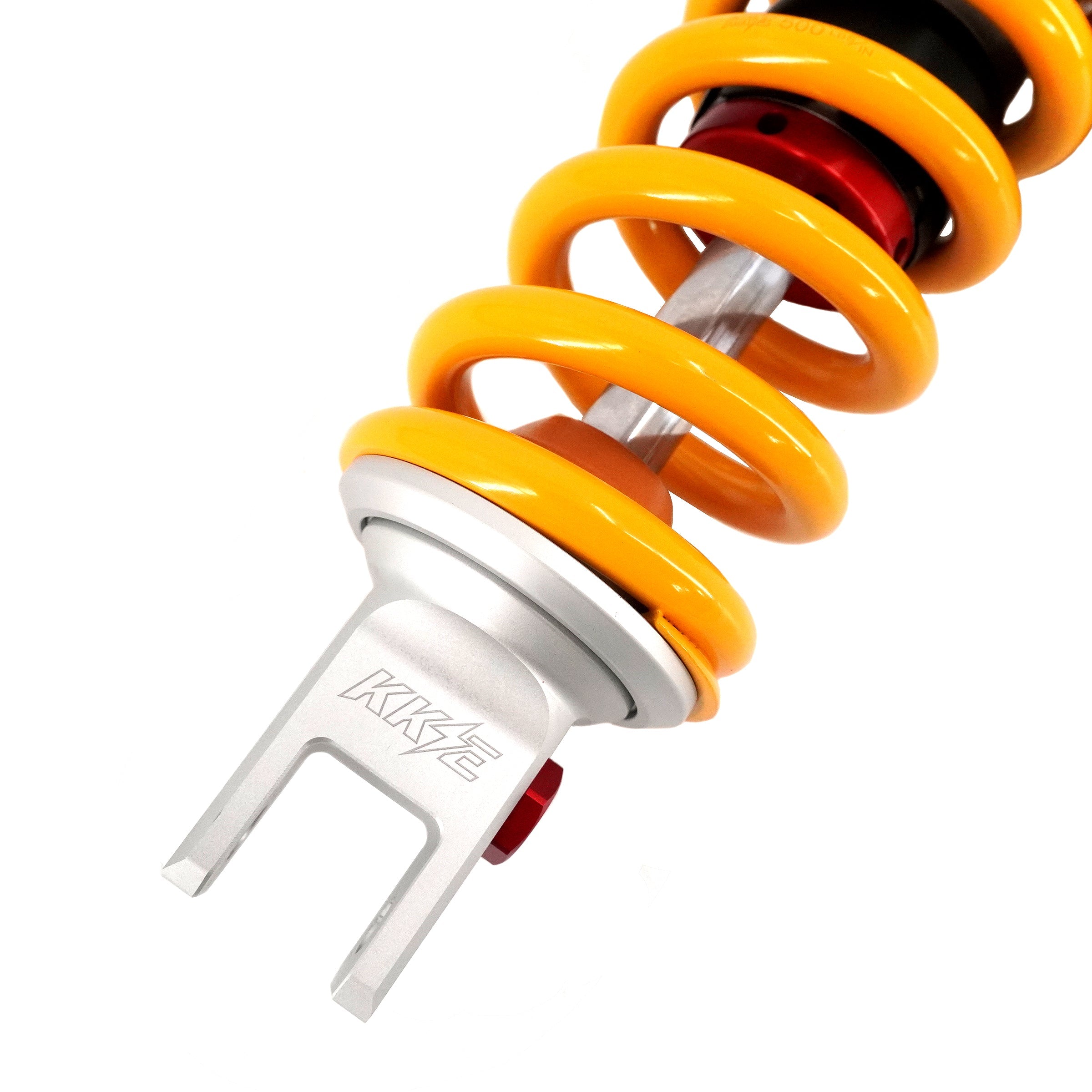

Lower Fork: AL6061-T6, matte silver/black, full CNC machining
-
Compression High-speed Adjustment: AL6061-T6, gold, full CNC precision machining
-
Compression Low-speed Adjustment: AL6061-T6, red, full CNC precision machining
-

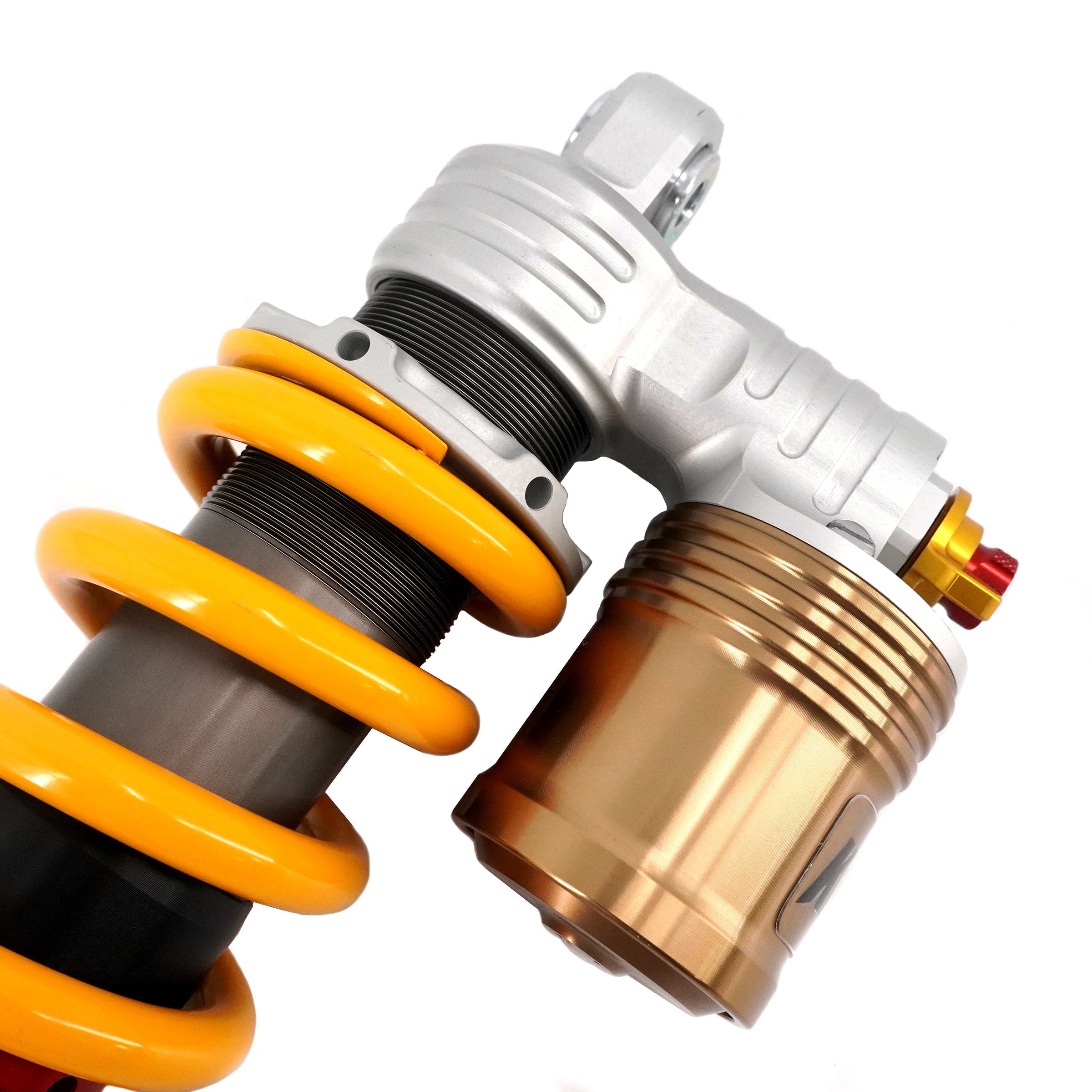

Air Chamber: AL6061-T6, matte silver/champagne gold, precision-drawn tube
-
Oil Chamber: AL7075-T6, raw aluminum, precision machining (honing process)
-
Piston Rod: 40Cr, hard chrome-plated finish, nickel plating first and then chrome plating on the surface
-

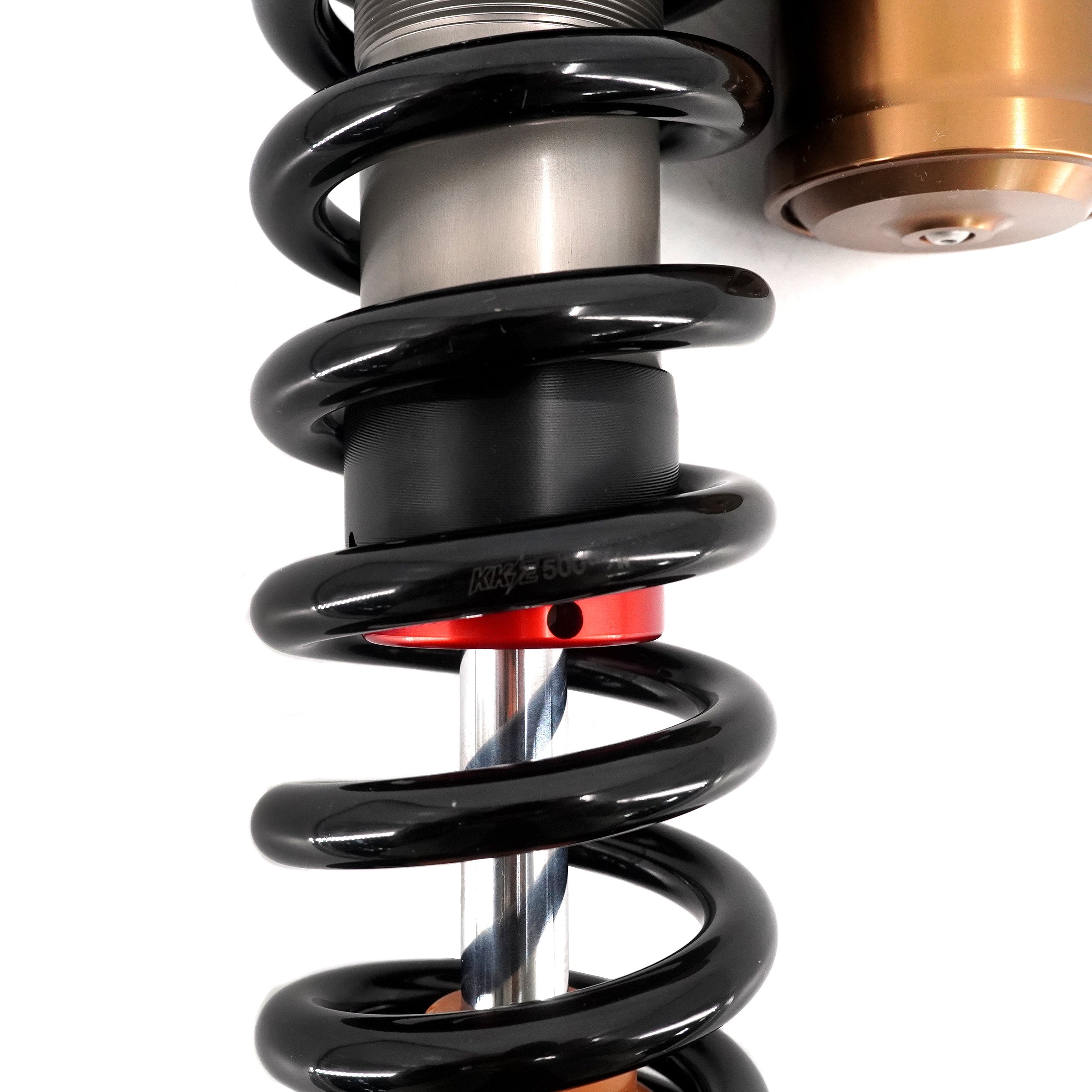

Shock Spring: 55CrSi-C-GB, yellow/white/black option, high-performance left-hand Spring
-
Shock Pad: Polyurethane, yellow, automotive high-performance
Features:
- 40mm large cylinder bore diameter, more tunable damping

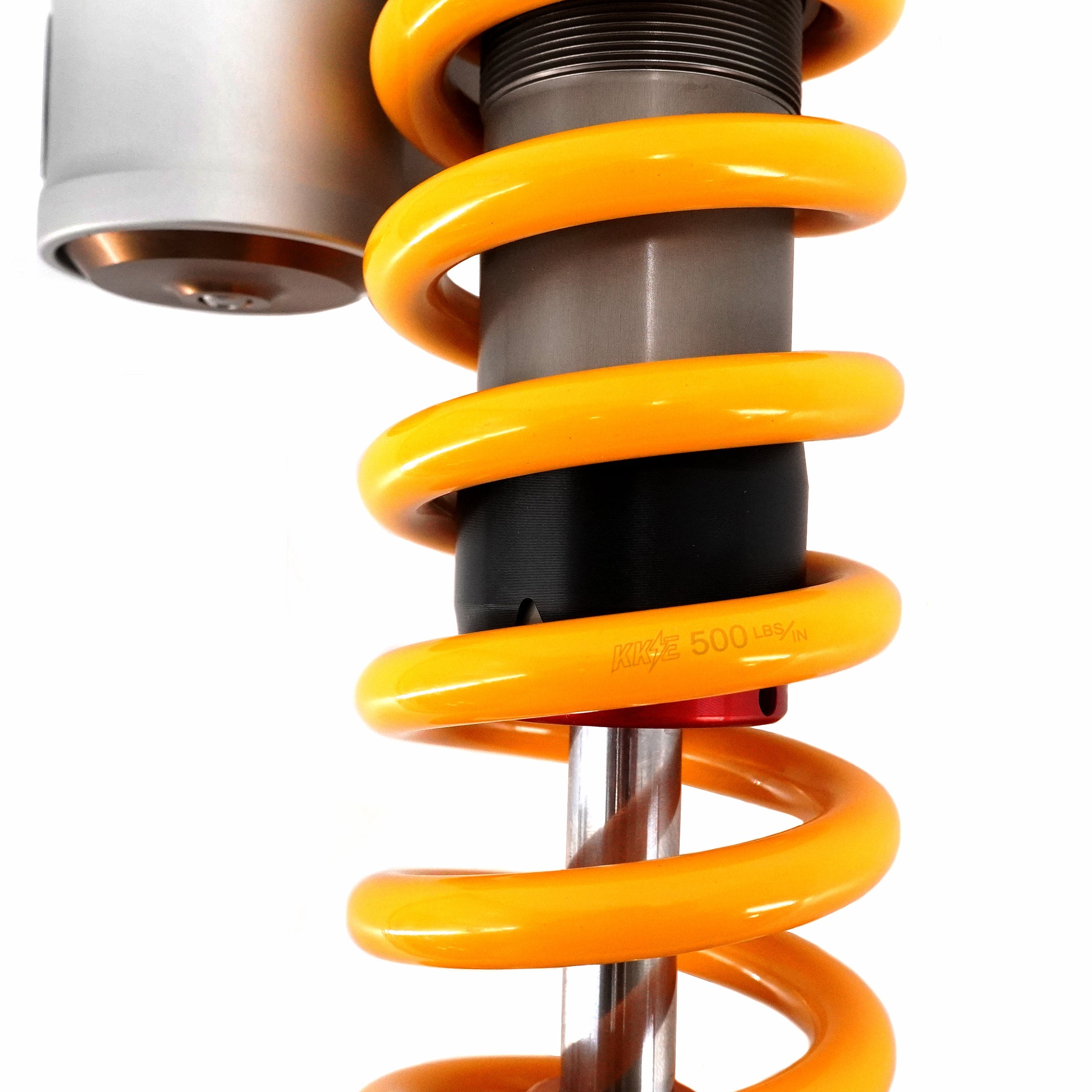

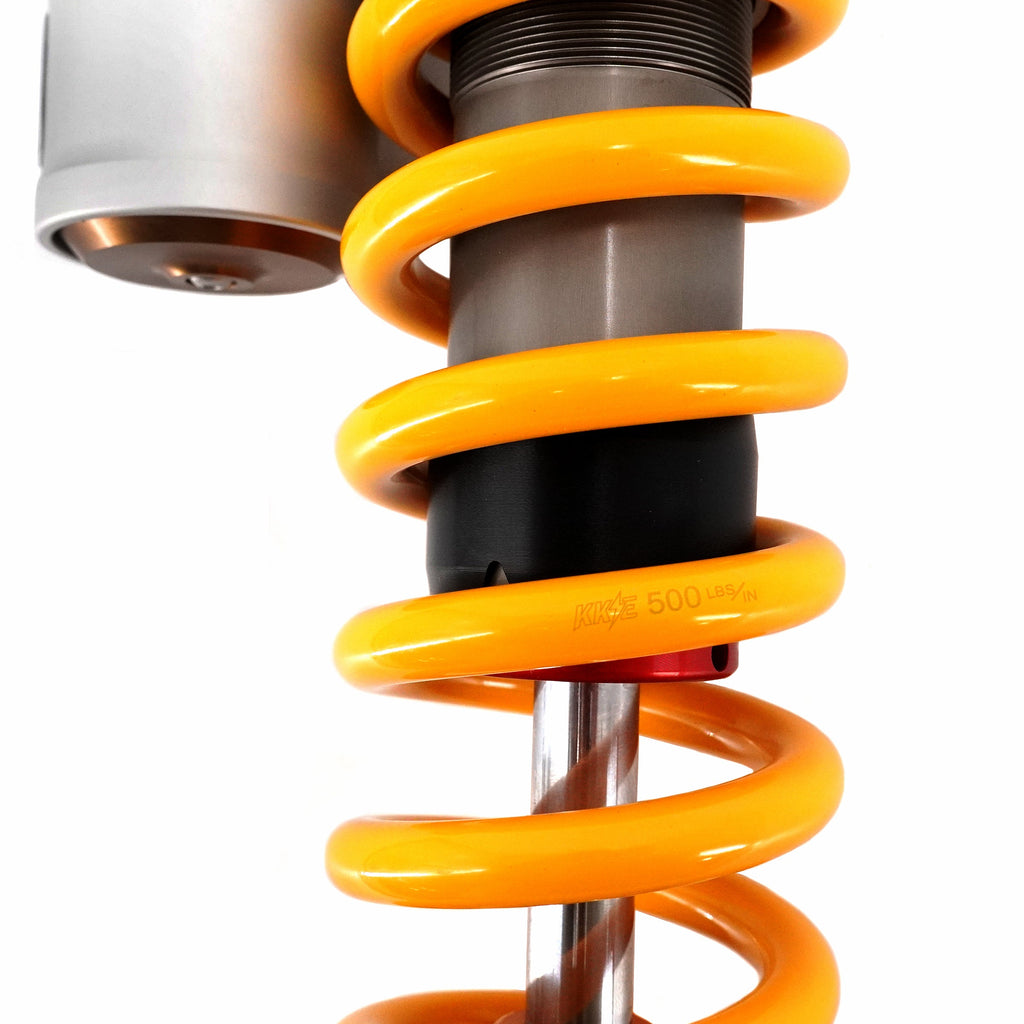

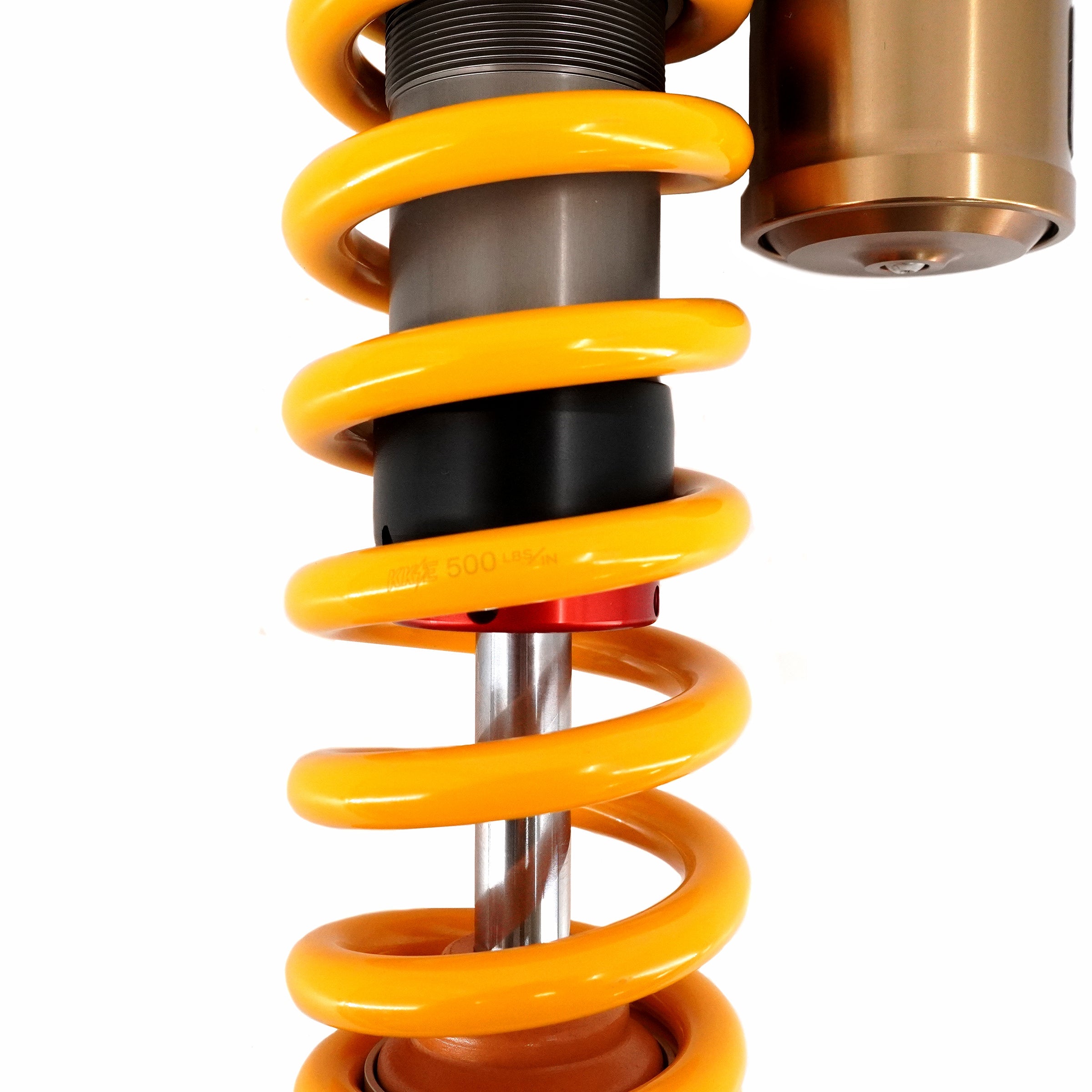

- Spring load upgraded to 500lbs, stronger support
- 16.0mm piston rod, optimizes the internal rebound and compression oil volume ratio to the ideal level
- Added high-pressure adjustment, wider compression tuning range
- Added internal hydraulic cushioning, all internal rubber components are upgraded to full-metal parts
- Professionally calculated oil channels, maximized shock performance
- New shock pad, extra support via special structure
- Imported high-performance shock oil, stable damping & low temperature fade
- Professionally tuned damping (extensively tested), award-winning performance
Recommendation for Riders:
- KKE Rear Shock with 500lbs spring Fit 65–85kg Riders Weight
Note: handles 90% of road conditions via click adjustment
Fitment:
-
For Surron Ultra Bee 2023-2025

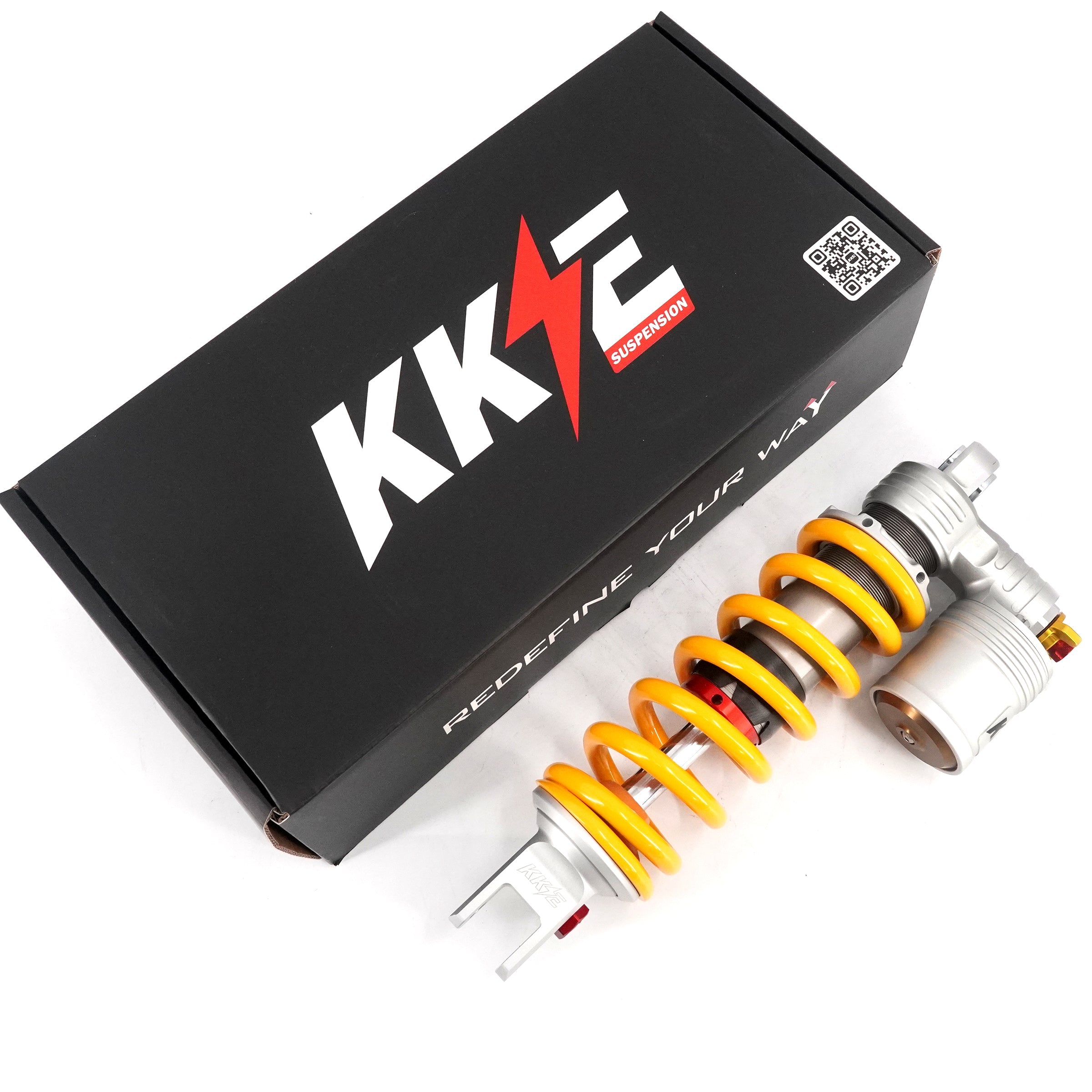

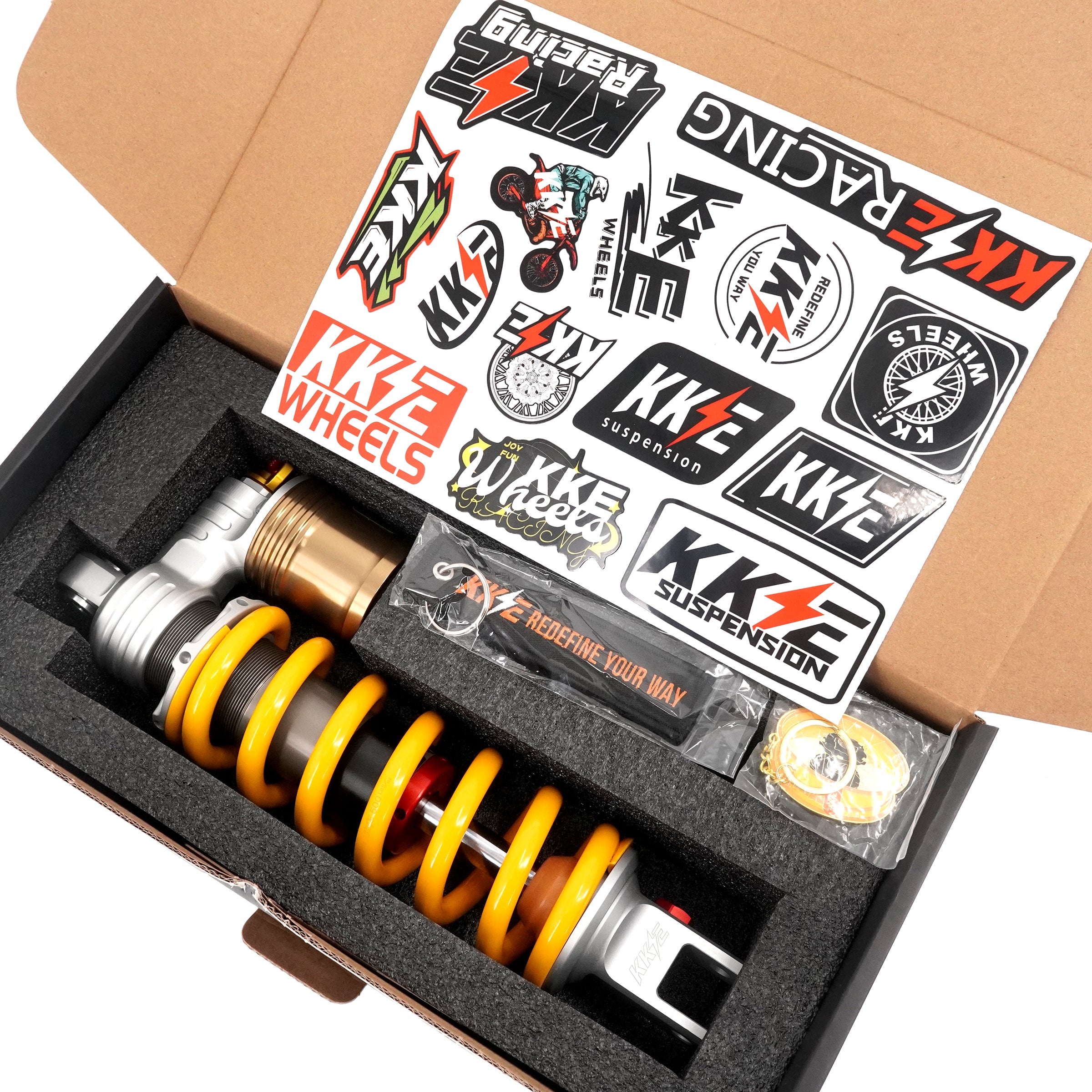

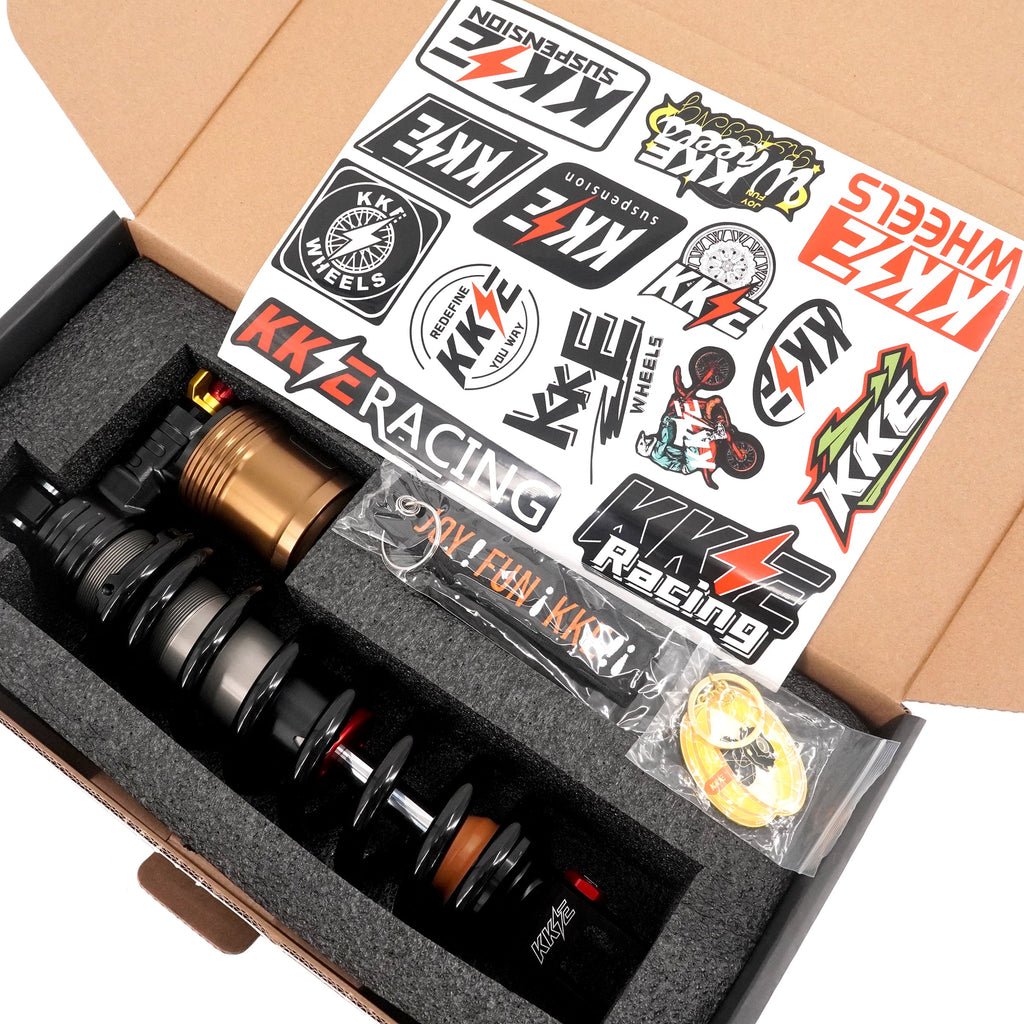

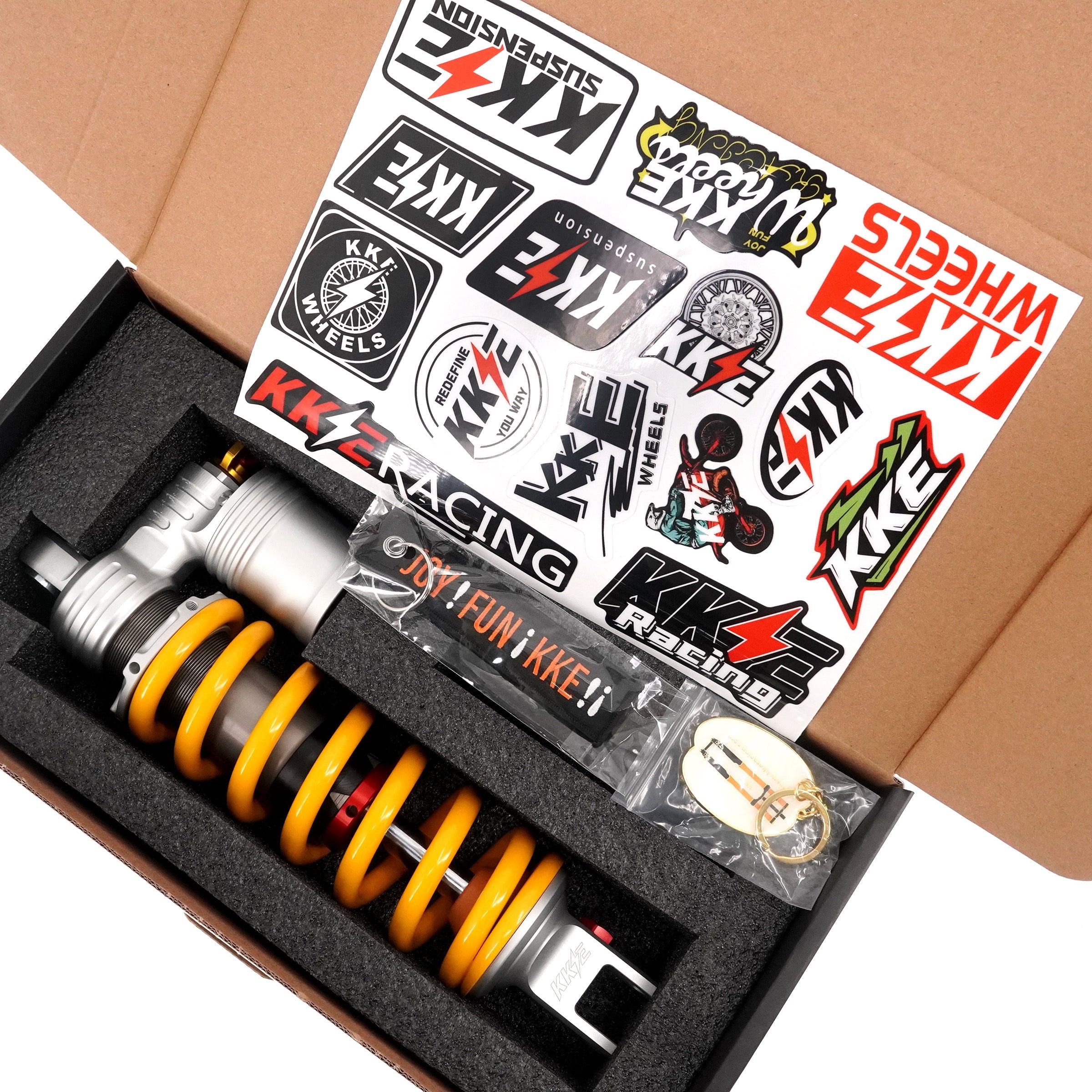

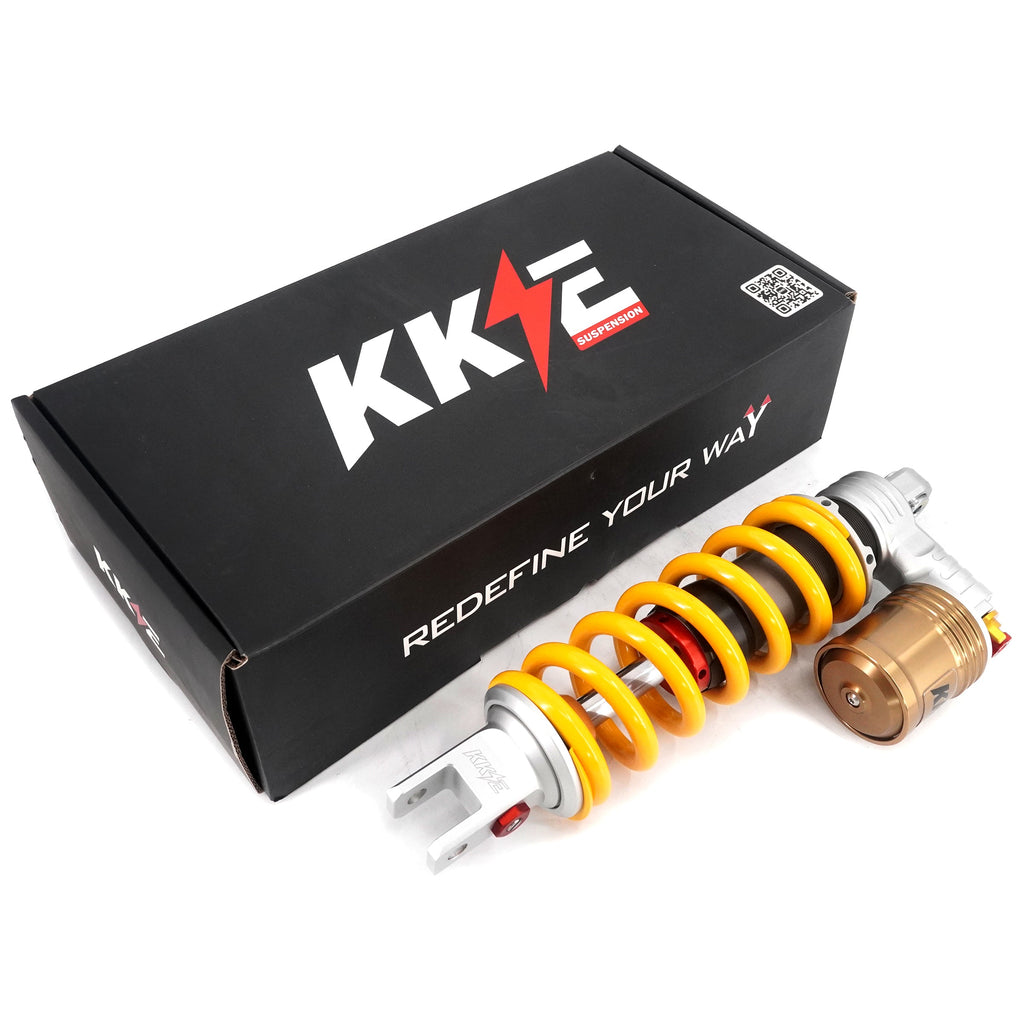

Package Included:
- Rear shock absorber assembled with 500Ibs Spring 1set
- KKE premium sticker 1pcs
- KKE special-design keychain 2pcs
Color Option:
-

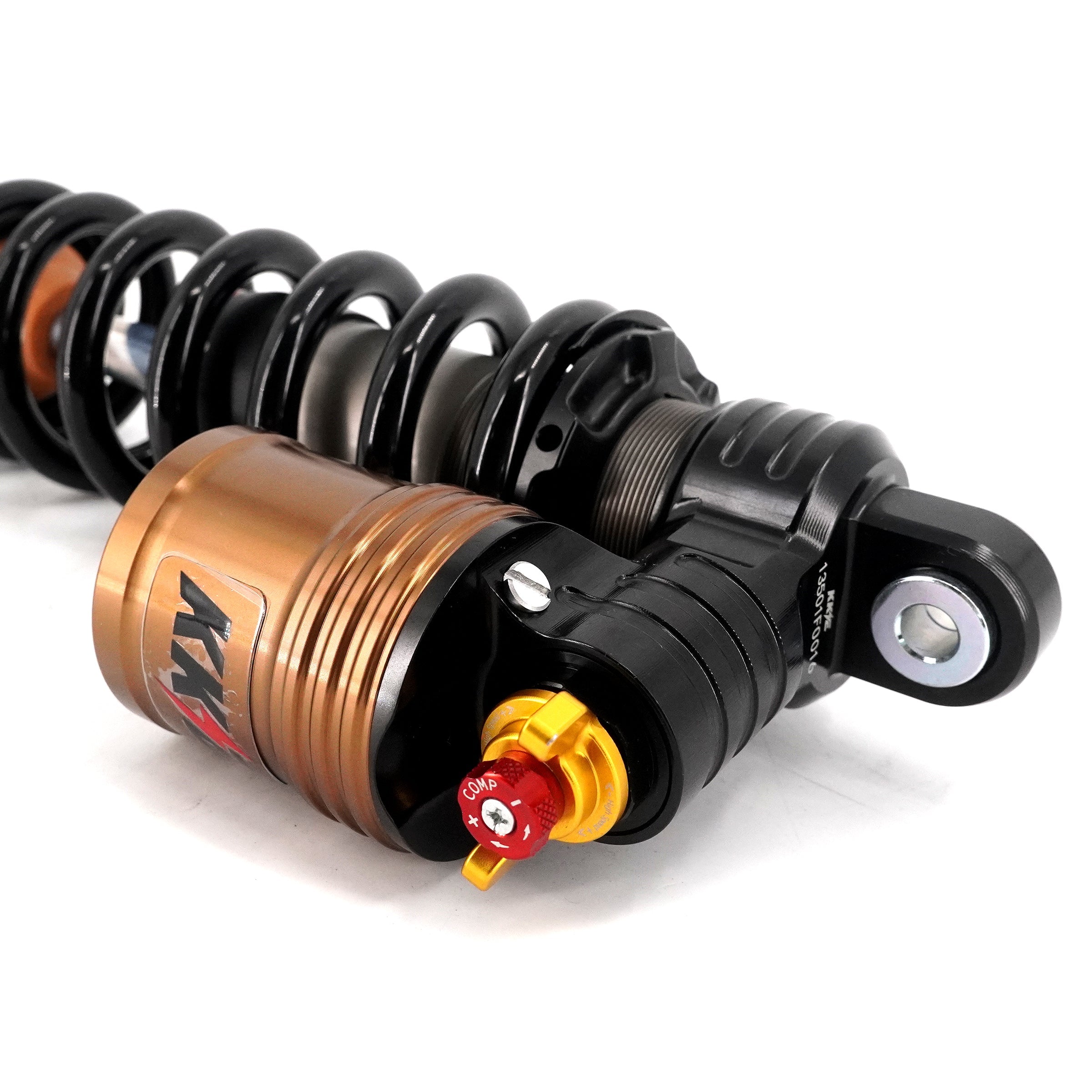

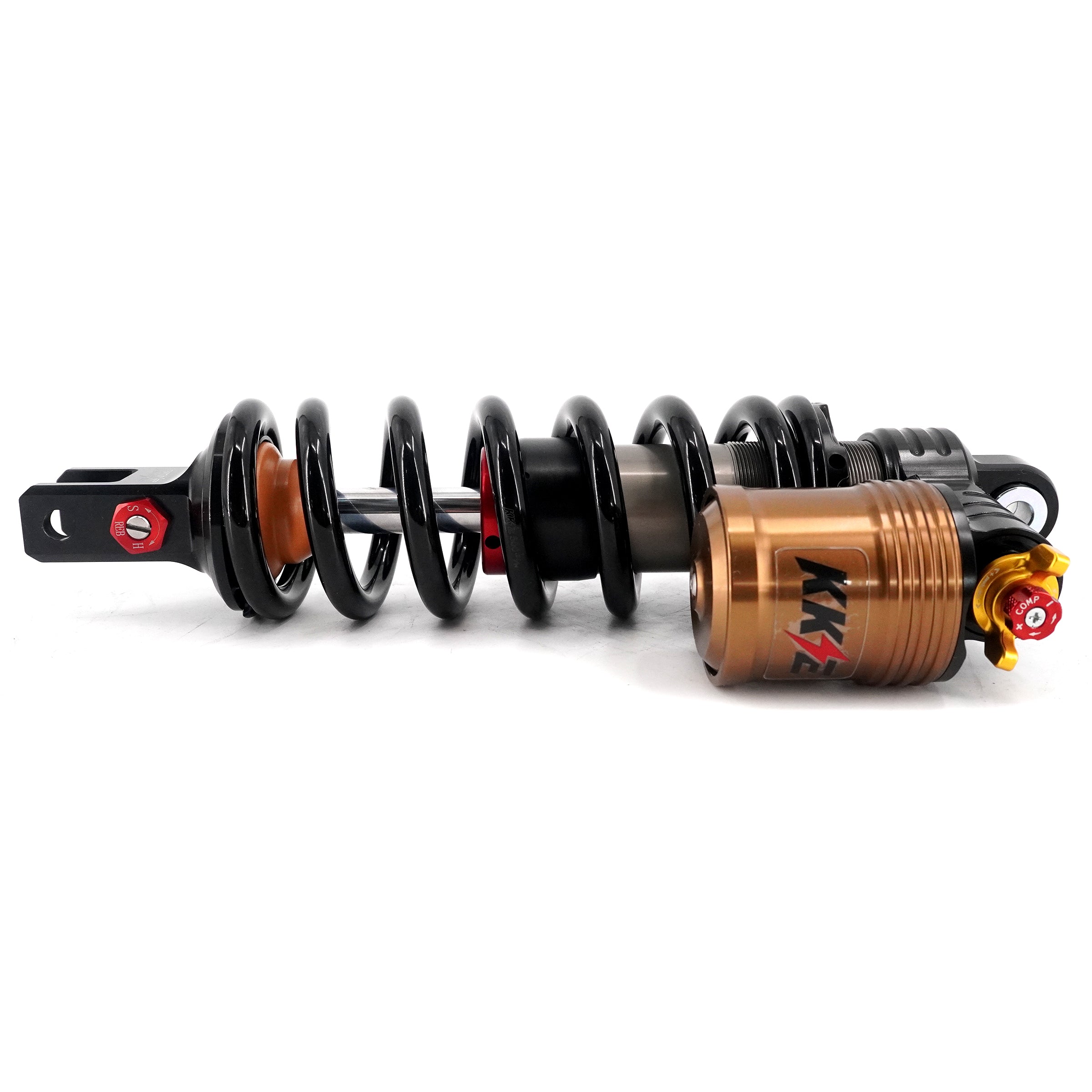

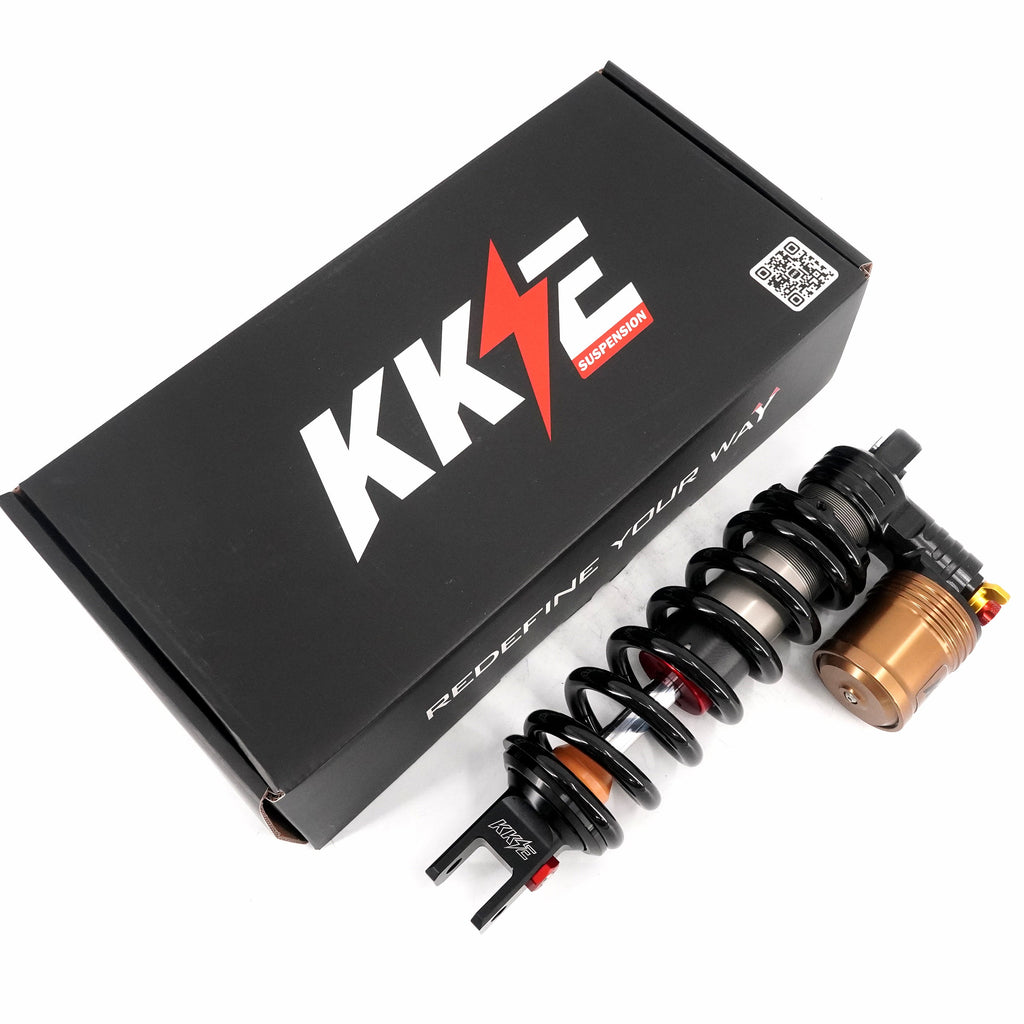

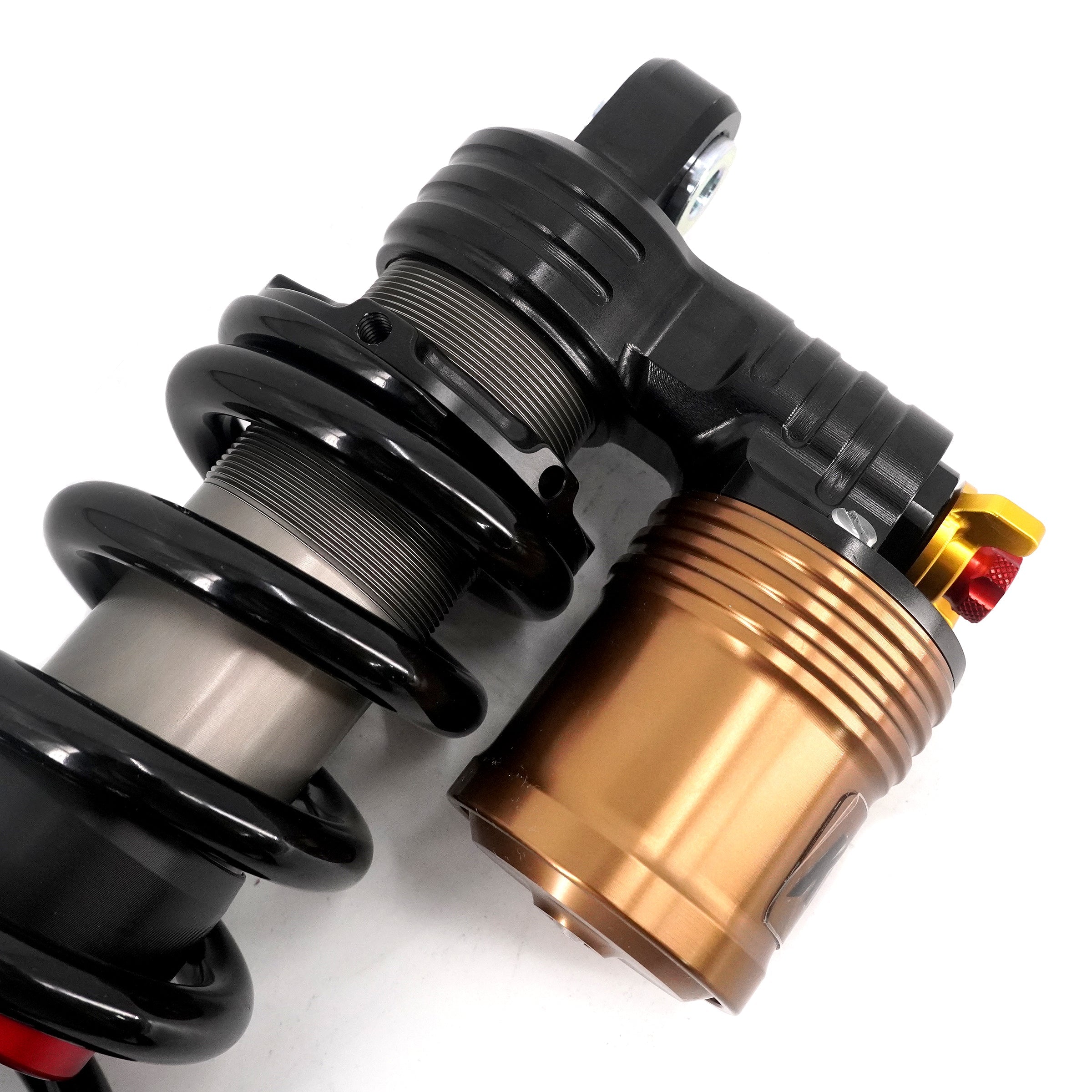

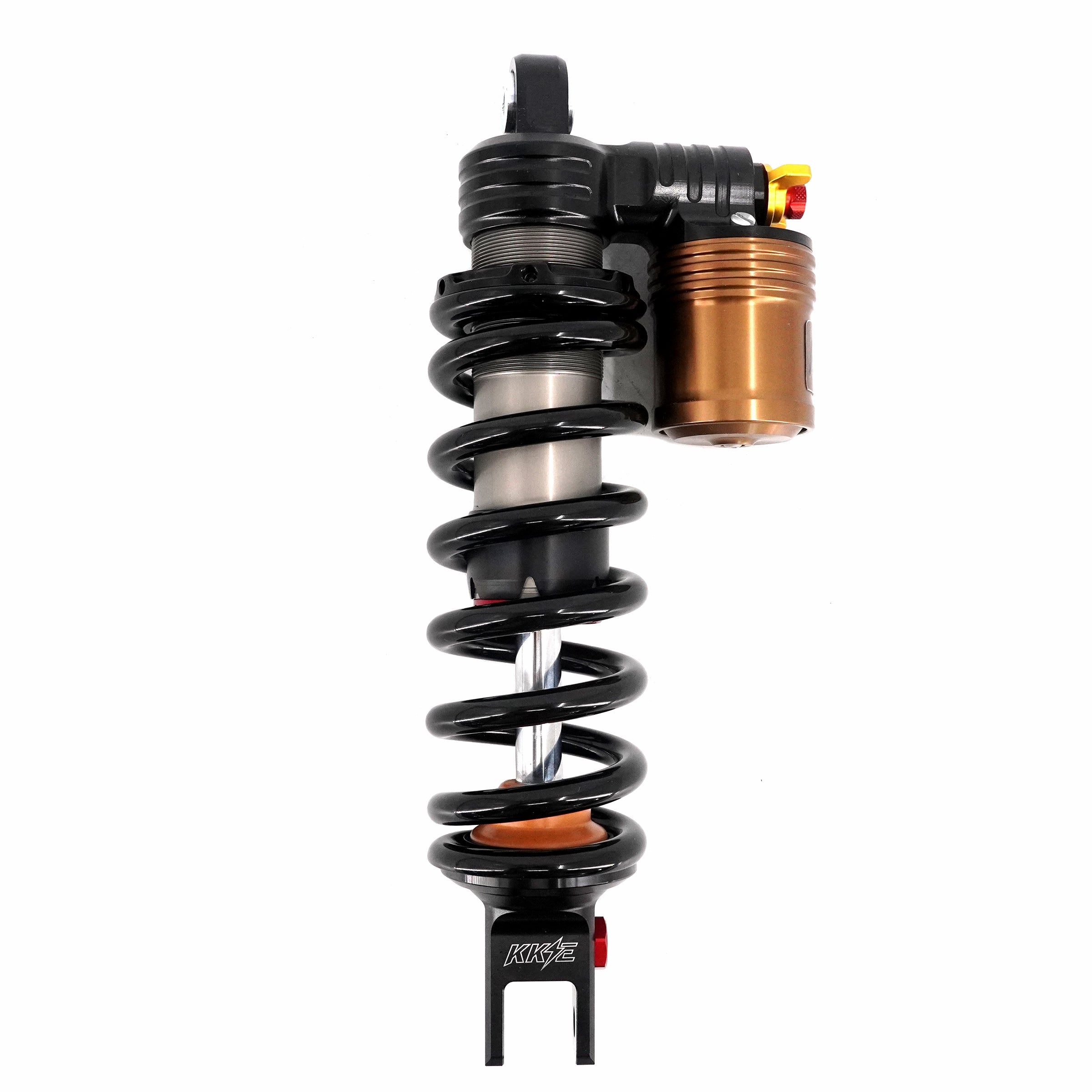

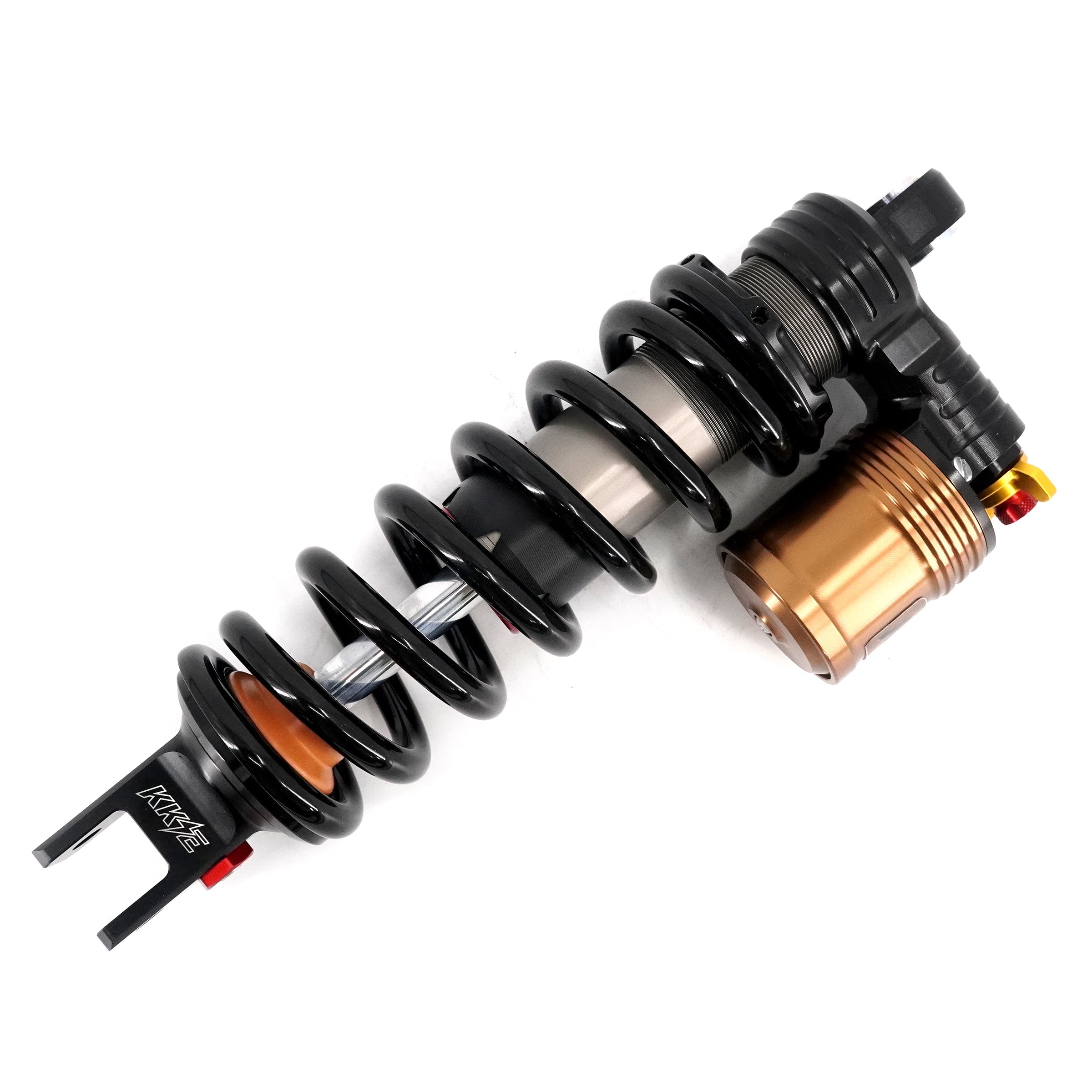

Black shock spring with Bronze air chamber

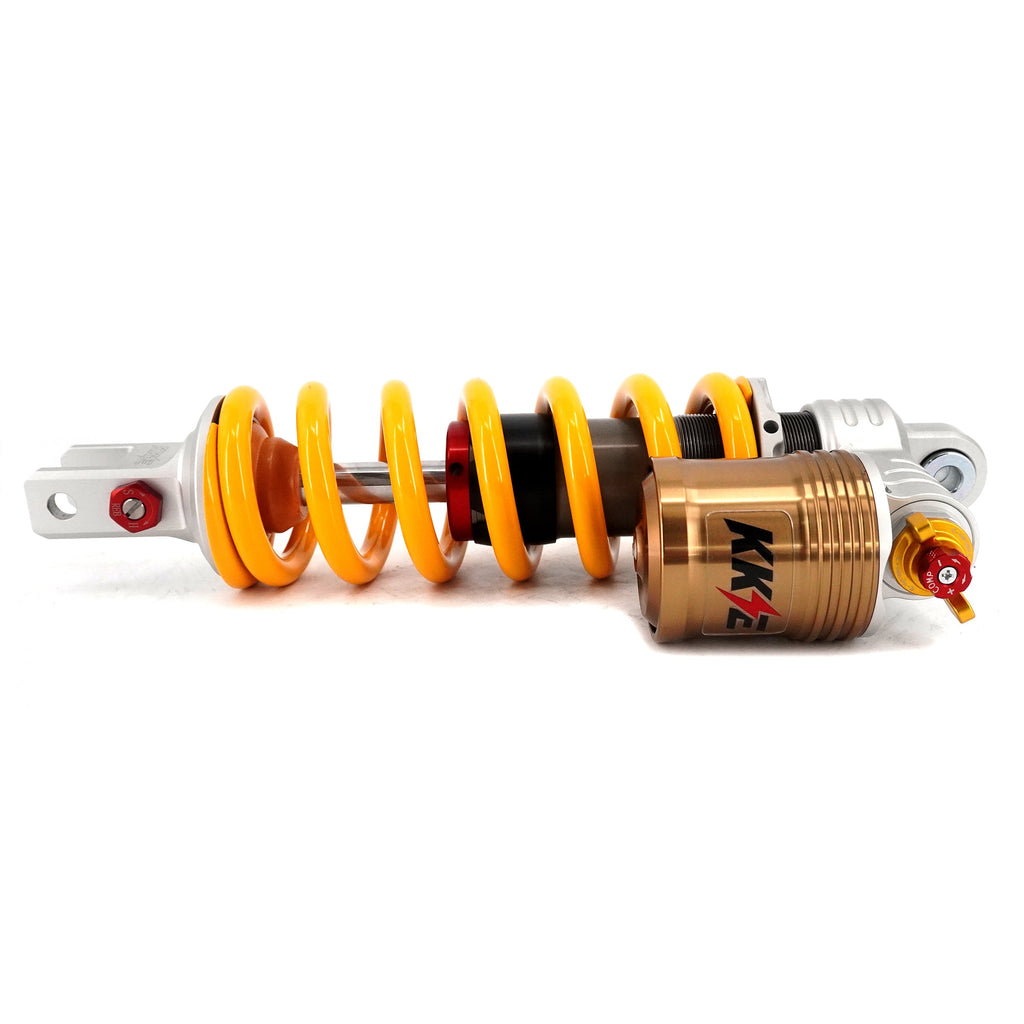

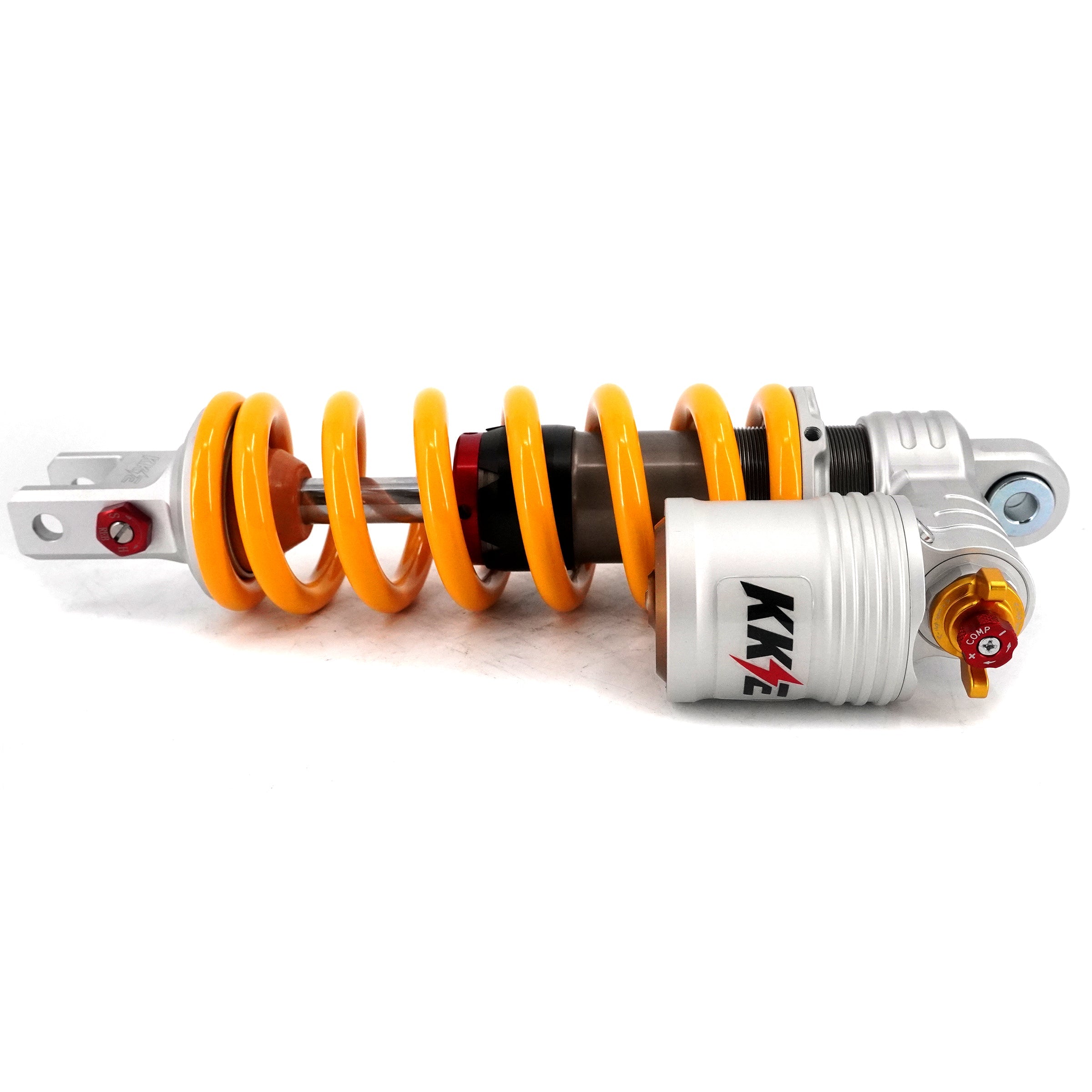

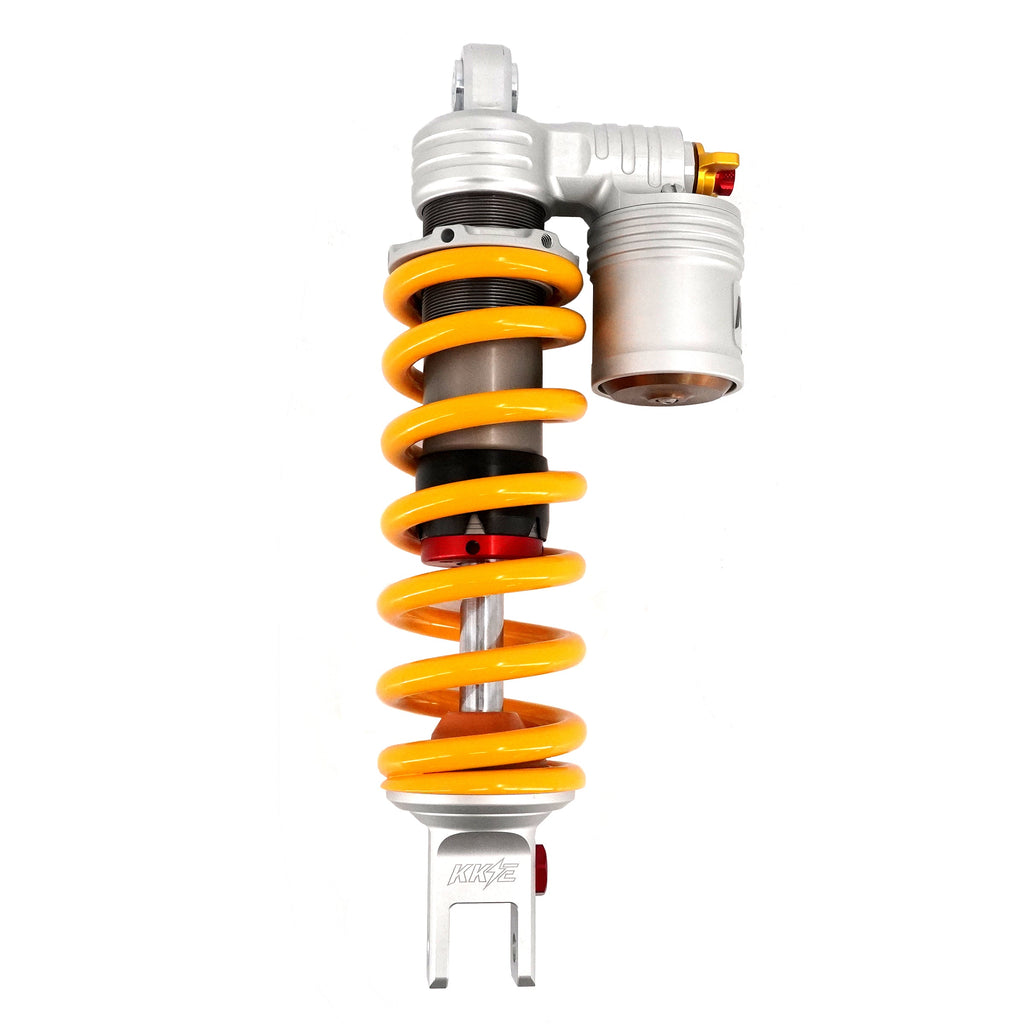

- Gold shock spring with Silver air chamber
-
Gold shock spring with Bronze air chamber
Core Function Introduction:

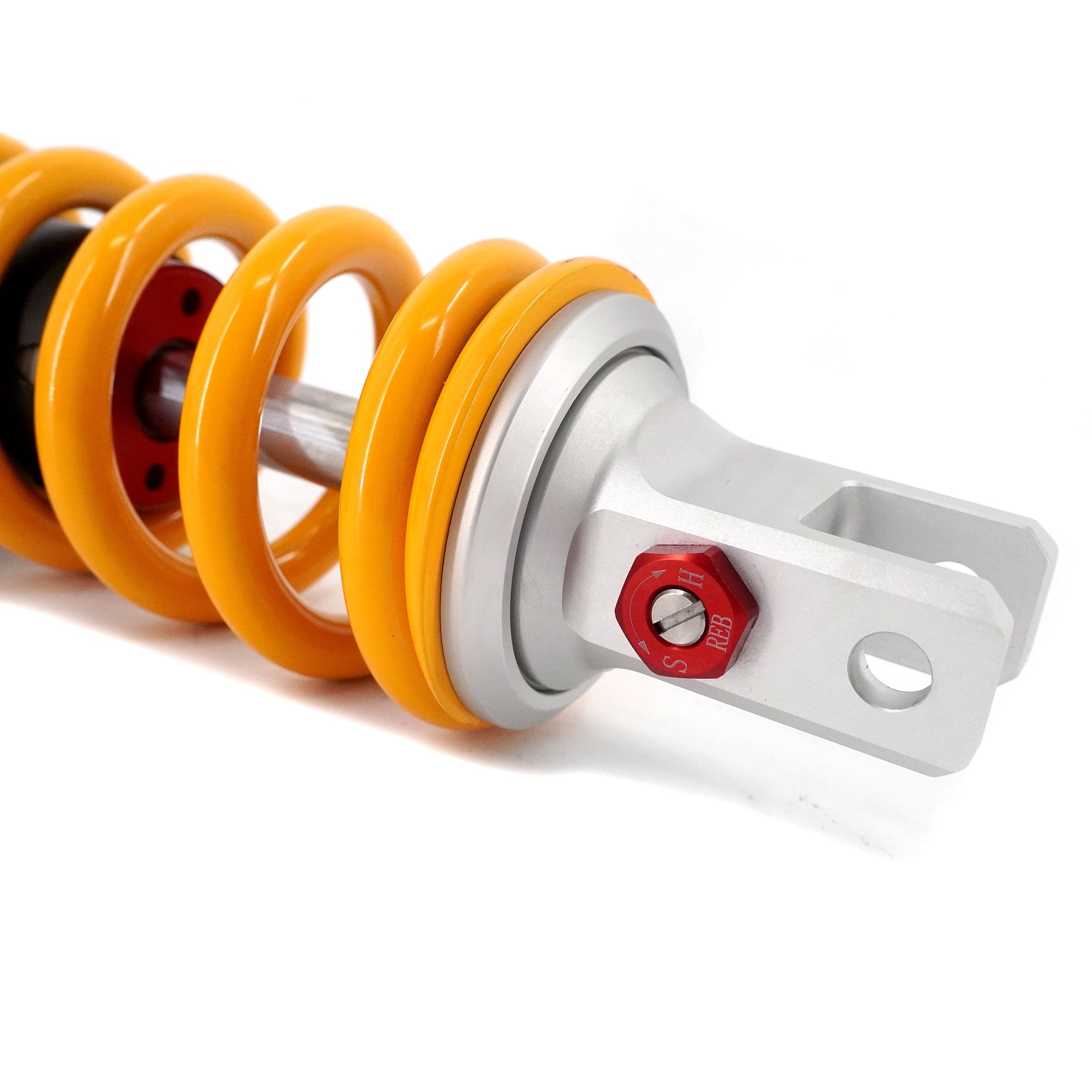

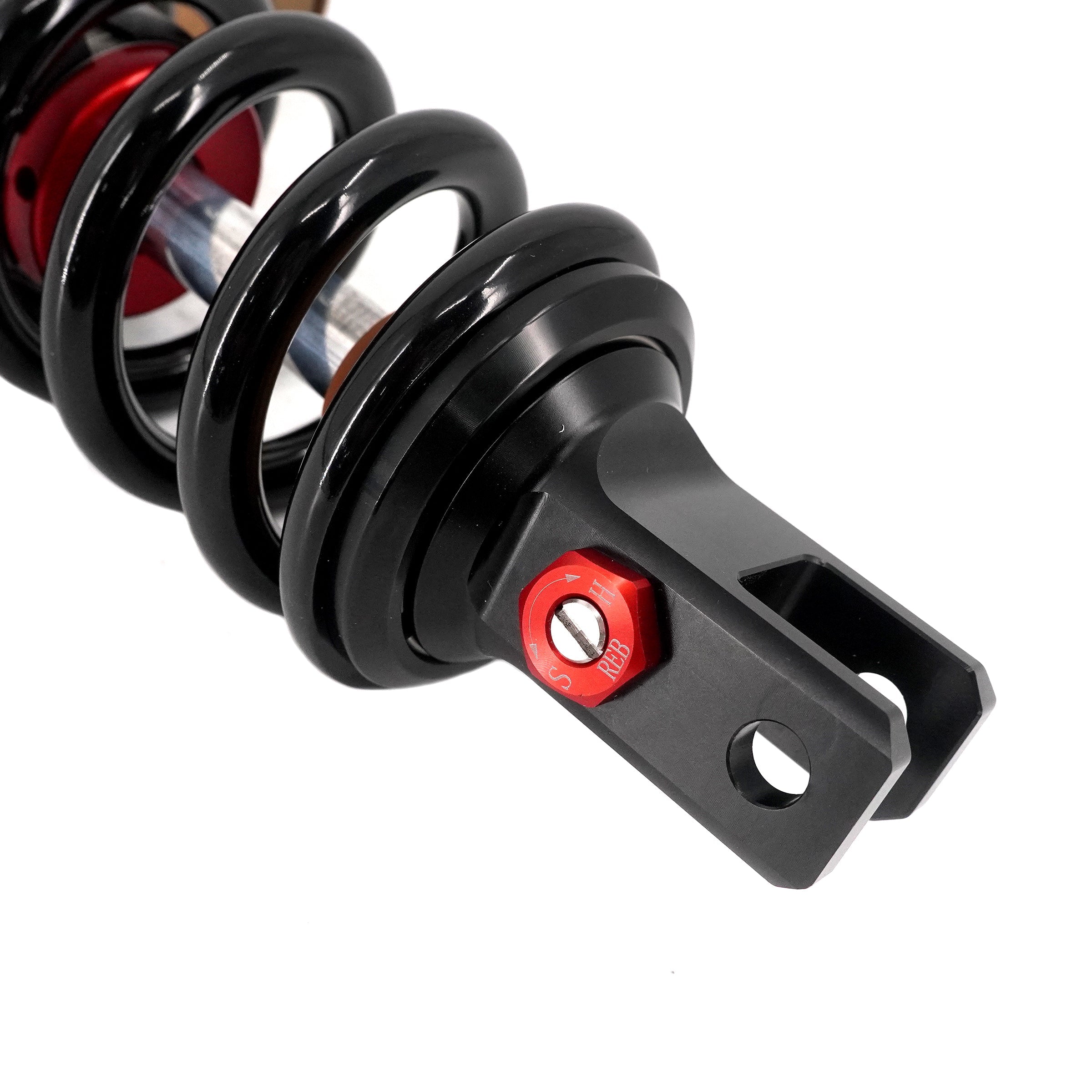

Rebound Adjustment: (15±2 clicks)

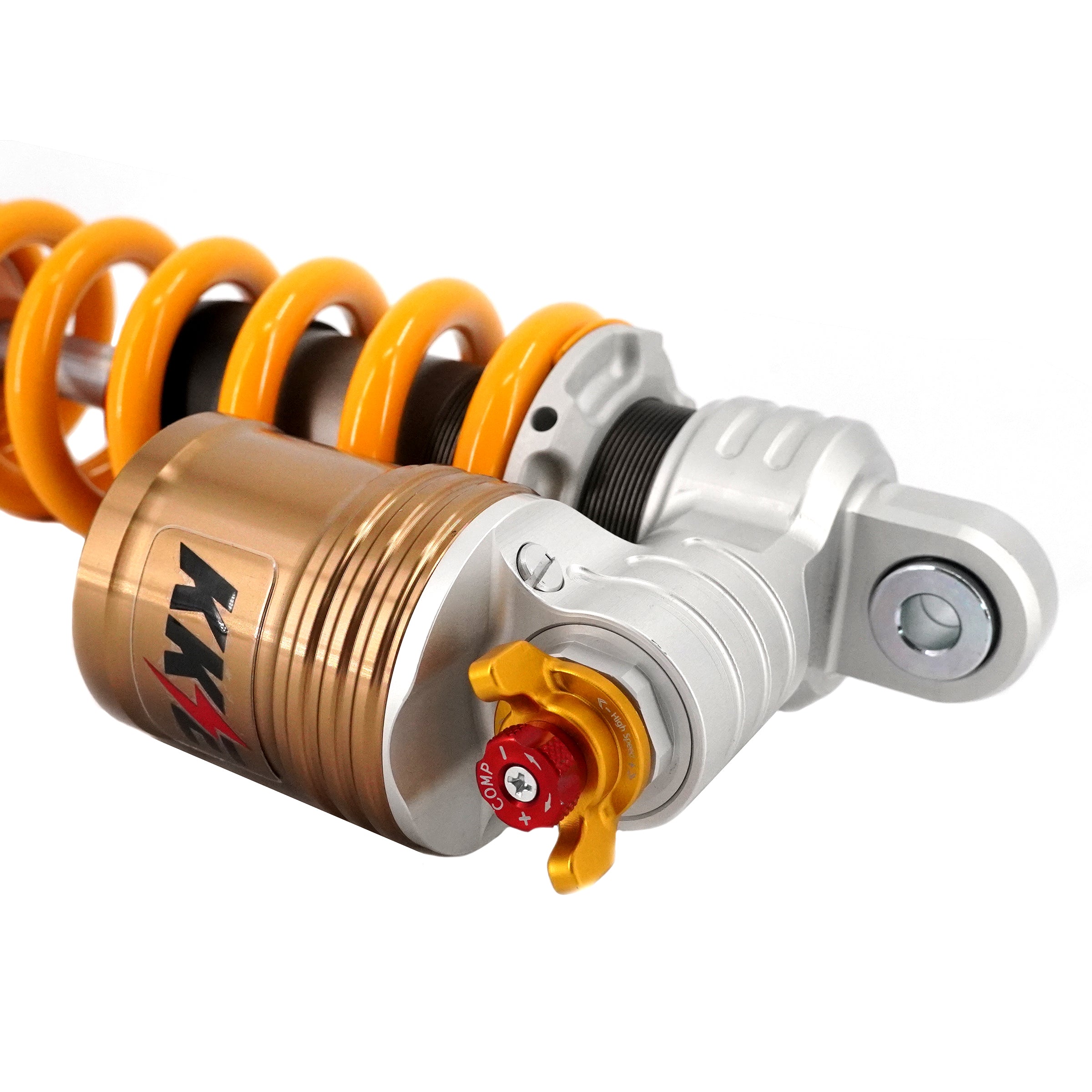

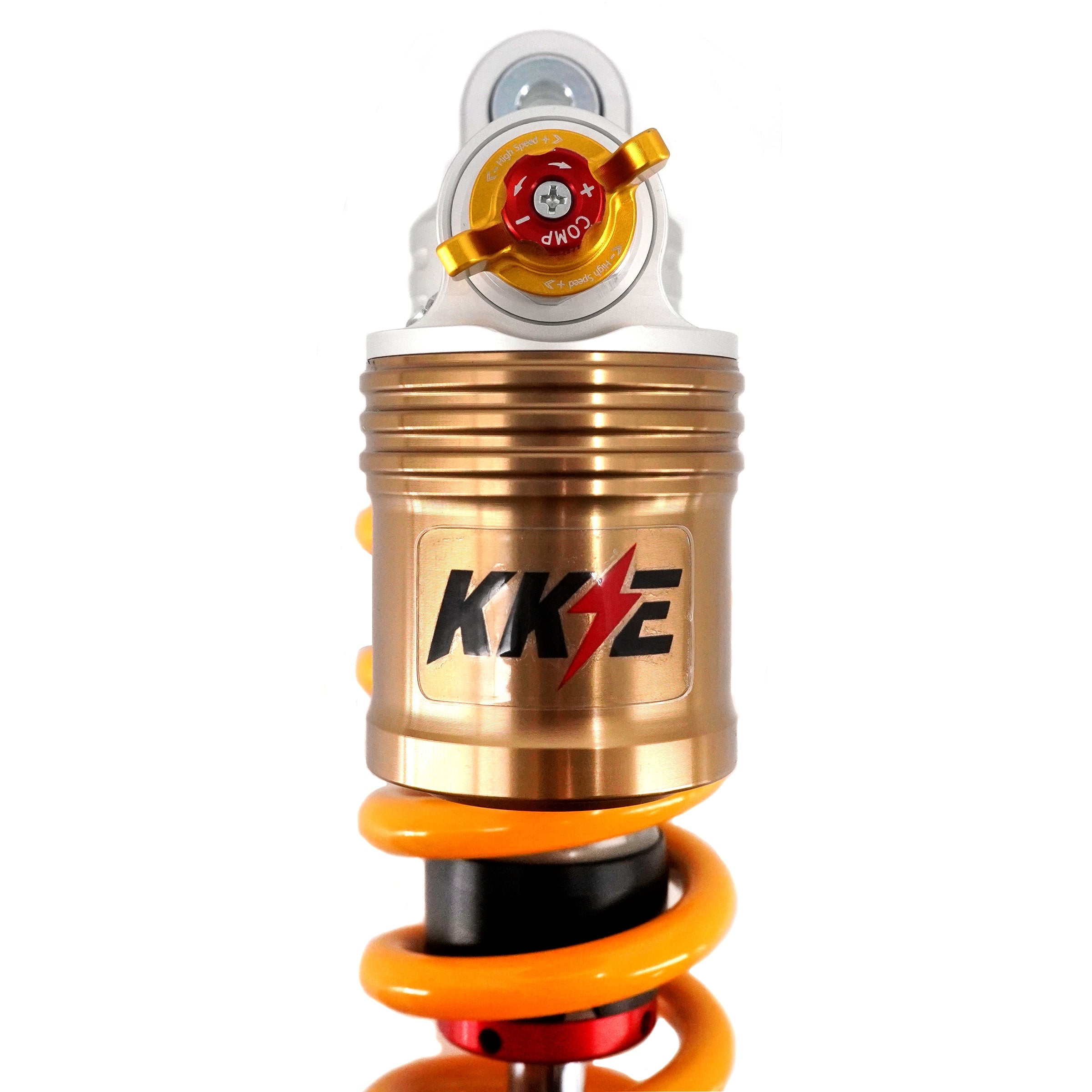

Low-Pressure Adjustment: (18±3 clicks) – Adjusts compression damping force

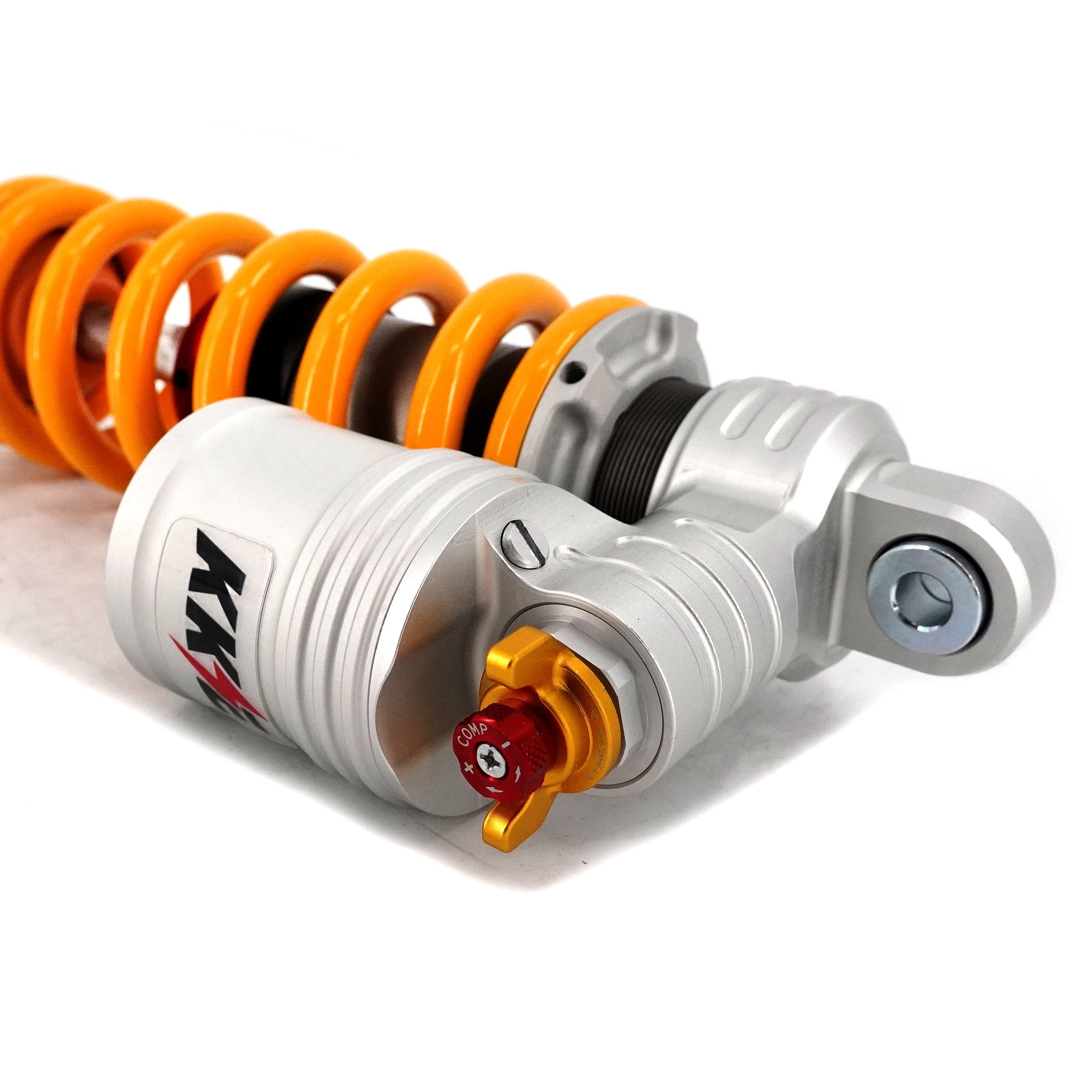

High-Pressure Adjustment: (18±3 clicks) – Increases high-speed damping (enhances support)
Preload Adjustment: (0–10mm) – Loosen/tighten the locking screw during adjustment
