Note: This fork is designed based on the E Ride Pro 3.0/SR specifications. Pre-install bearing kit & Directly install no need extra parts.
Fitment Bike: E Ride Pro 3.0 / SR
Weight for 203mm travel fork: (compatible with 19“/21” inches)
- 45lbs spring - ≤100kg
- 60lbs spring - 100kg-130kg (for lots of jump)
- 45-60lbs progressive spring - 80kg-130kg
Weight for 228mm travel fork: (compatible with 19“/21” inches)
- 45lbs spring - ≤100kg
- 55lbs spring - 100kg-130kg
FEATURES:
-
Center Distance: 750-800mm
-
Main Piston Travel: 203-228mm
-
Tube Diameter: ∅37mm
-
Caliper Mount Spacing: 99.5mm
-
Disc Brake Size: ∅220mm (Upgradeable)
-
Suitable For: Electric Dirt Bikes, Downhill Bikes
-

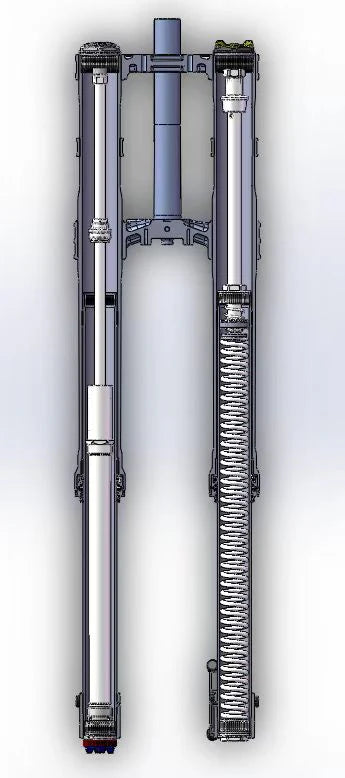

Damping System: Inverted Oil-Spring
-
Adjustments: Multi-stage High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload
-
Material: AL6061-T6 Forged Aluminum Alloy Bottom Brackets, AL7075-T6 Aluminum Fork Tubes
-
Spring Wire: 55CRSI
-

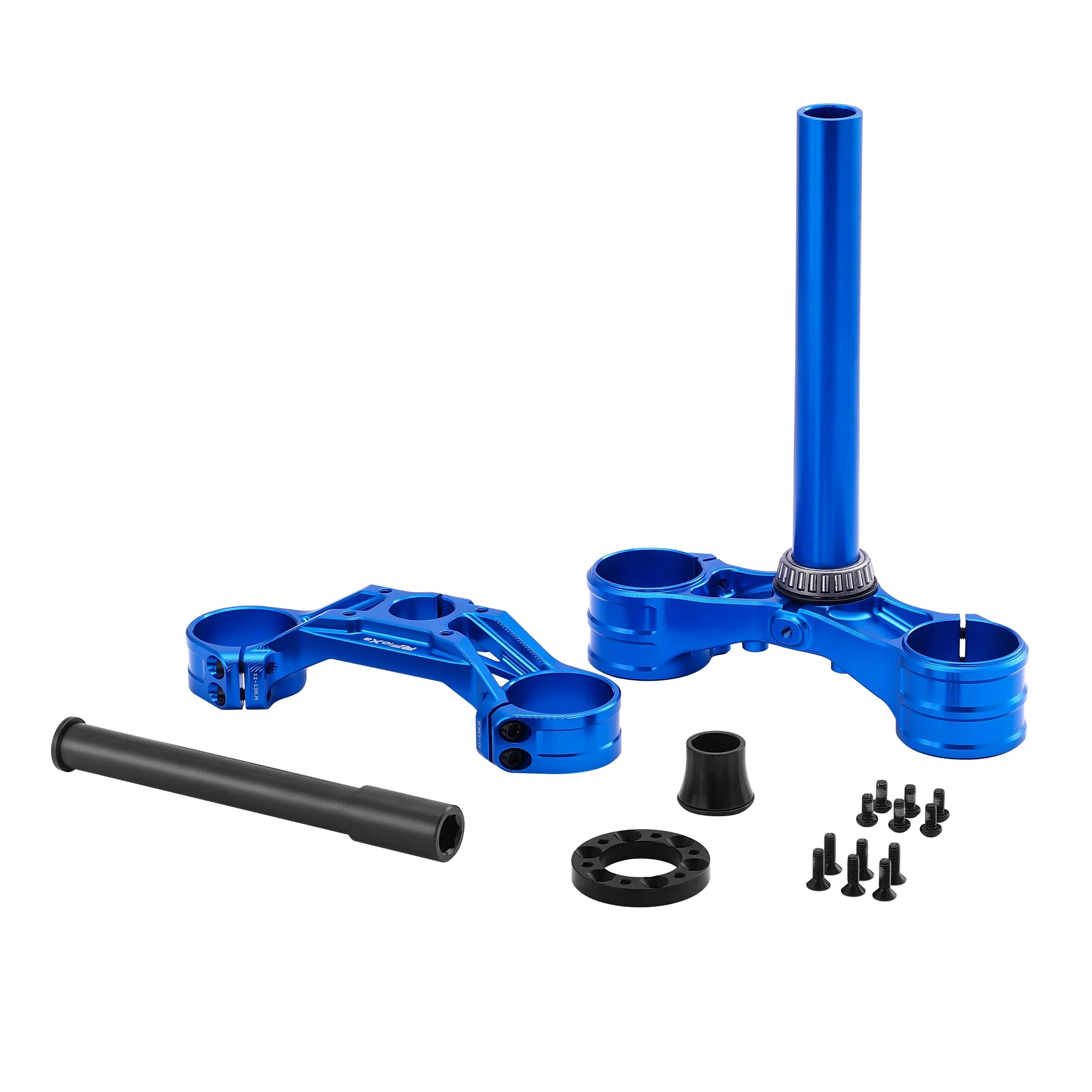

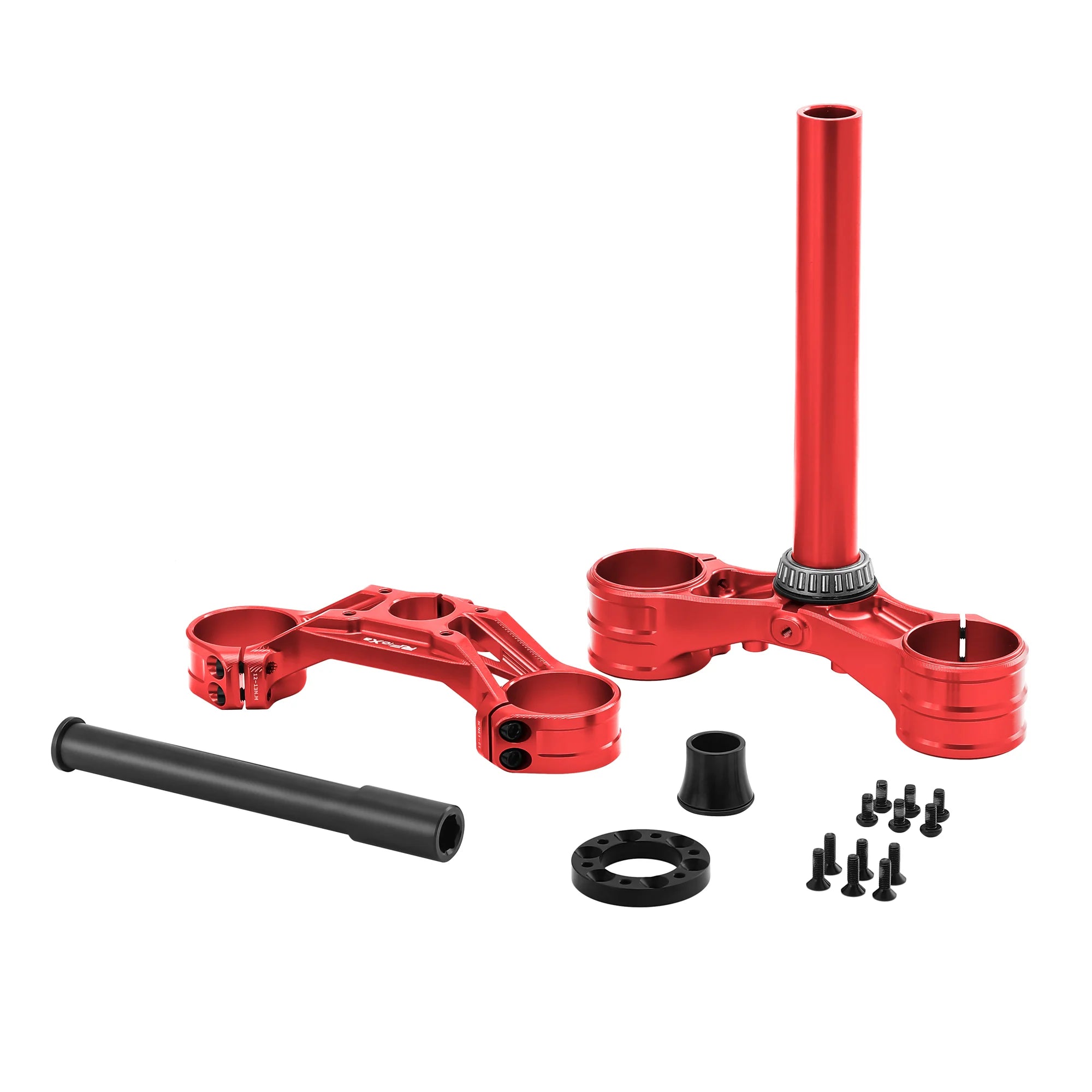

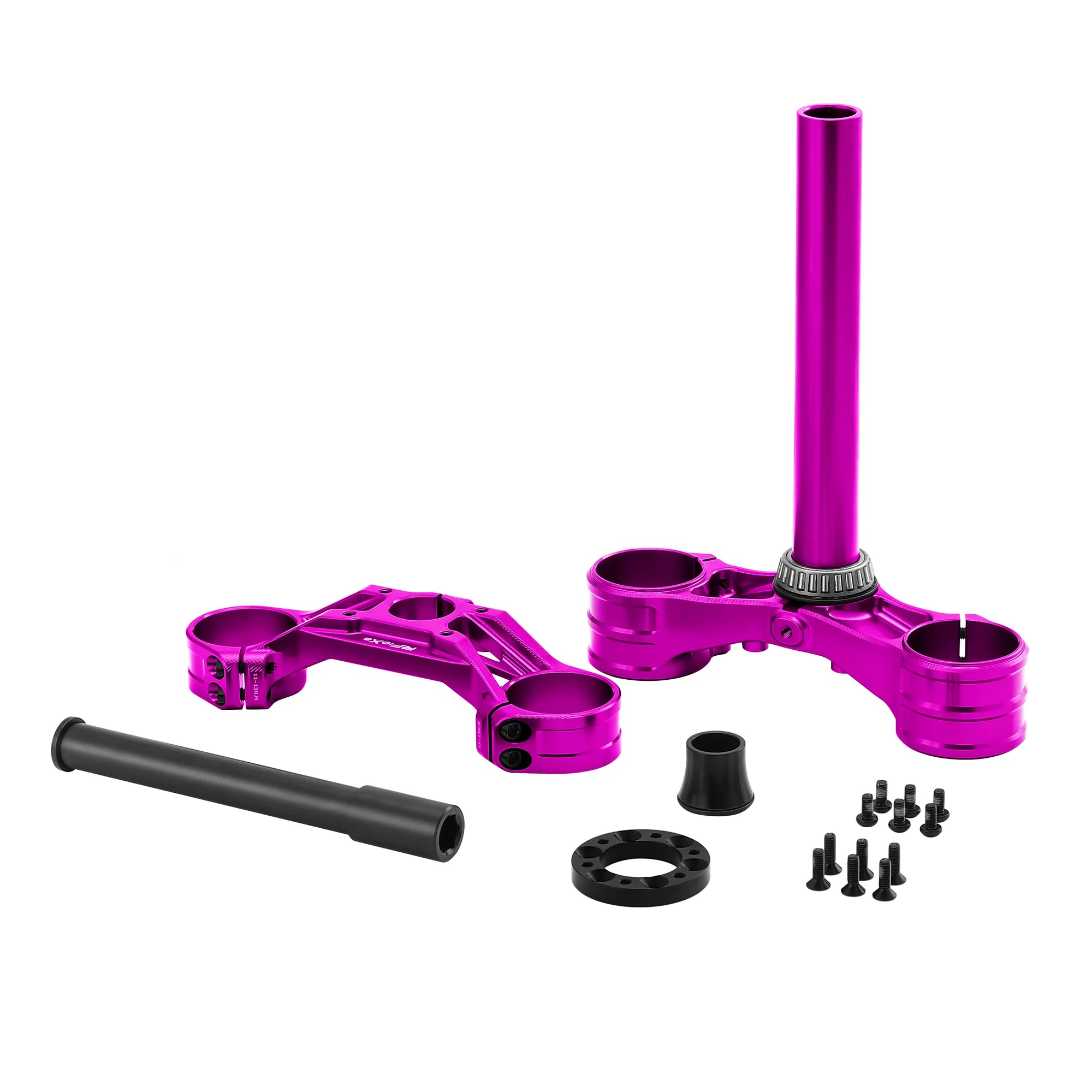

MAX Triple Clamp: CNC Precision Machined
