This hardware shimming kit is designed to fine-tune the install of your front or rear brake caliper when installing the 250mm Race Spec rotor and caliper adapter.
Please note that most OEM Surron/Talaria applications will not need this shim kit however, some late model fork and aftermarket caliper combinations will need some fine-tuning with the post-mount system and shims to get proper alignment and clearance from the rotor.
Some people get upset when they realize they need shims, but this is the reality of the standard post-mount system in the MTB world as not all OEM calipers and aftermarket calipers and integrated post-mounts on forks are dimensioned exactly the same. There can be up to 3mm of difference between some model calipers and fork post mounts.

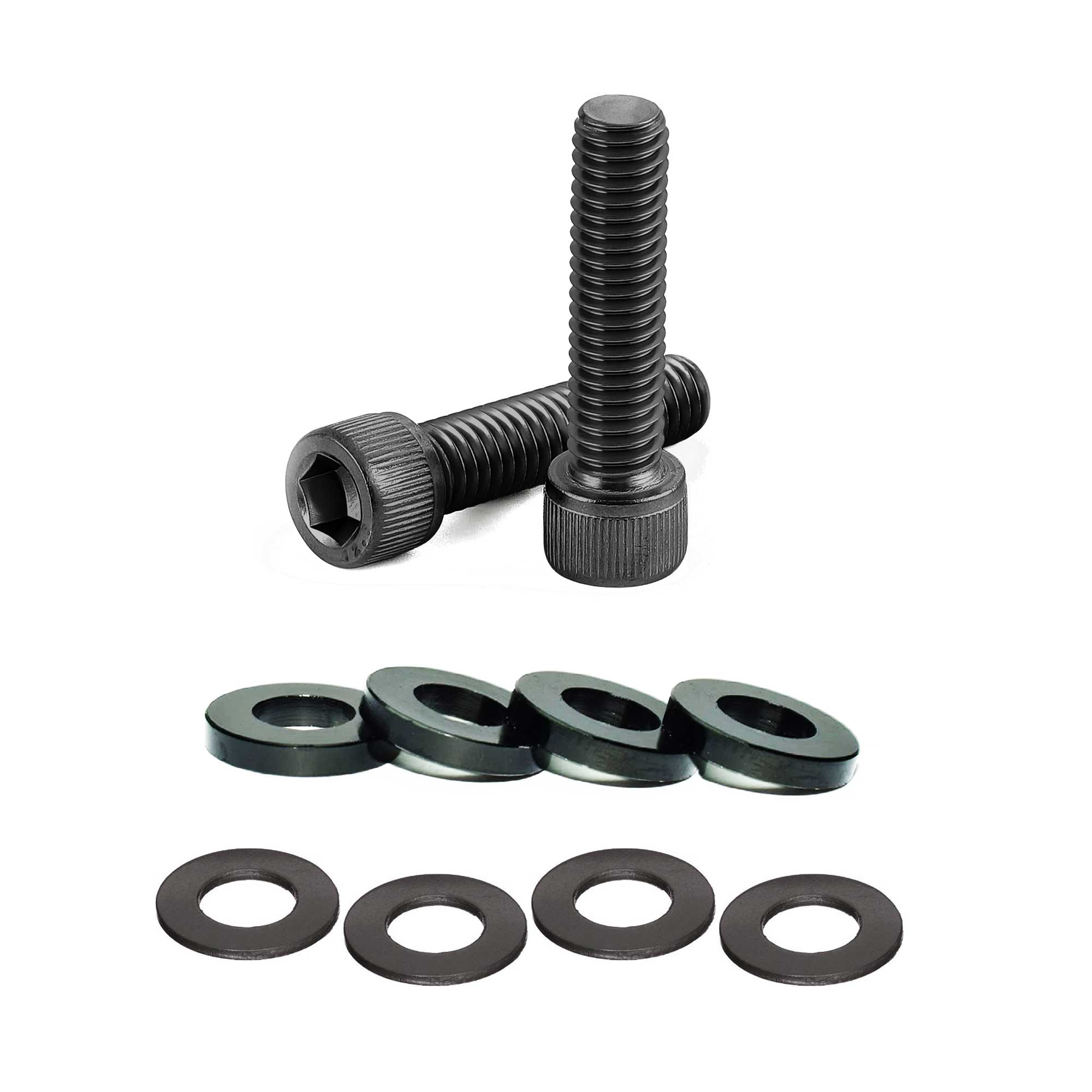

This kit includes (4) M6 x 2mm anodized black aluminum washers, (4) M6 x 1mm carbon steel (stainless) washers and (2) M6 x 20 allen bolts (shorter for some caliper adapter to fork applications).
It is almost impossible for us to identify every application where shims and shorter bolts are needed but here is a short list:
Front Forks Requiring Shims:
- FOX40s
- Talaria Factory Forks 2022.5+
- Bomber58s
- Fastace
Calipers Requiring Shims:
- Magura MT5/7s
- EVO TRPs
- Hope Tech V4
- Hayes Dominion
