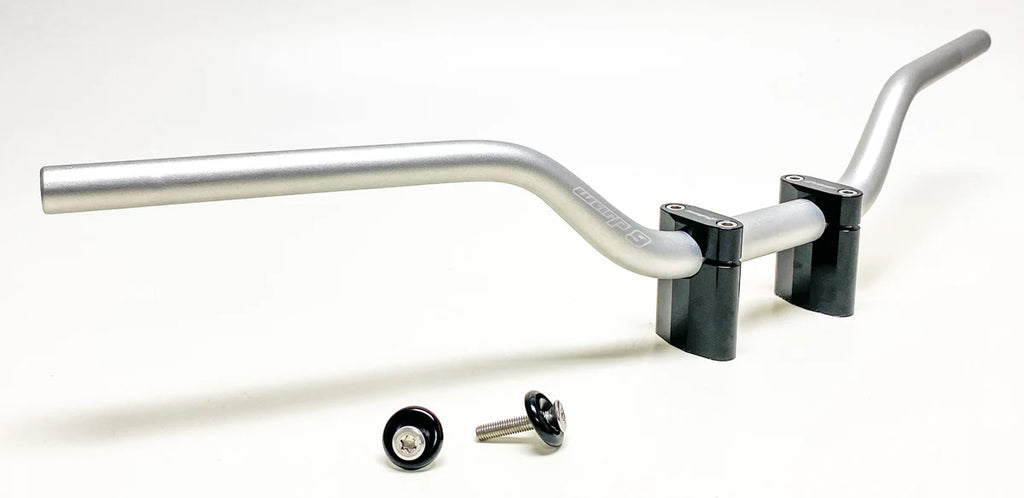

Say goodbye to fidgety handguard expansion plugs with Warp 9 tapped MX handlebars. The bar ends are plugged and tapped with an M8x1.25 threaded insert, giving you a secure, reliable mounting point for aftermarket wrap-around handguards. No more plugs pulling out or spinning in a crash.
✅ BIKE FITMENT
1 1/8" (28.6mm) bar clamp size:
- Surron Ultra Bee
- Talaria Komodo
- Zero XE
- Yozma IN10 and IN10 Pro
- Throne Strike Shadow, Shadow SVT and Shadow SX
- Tasaca T500 Pro and T500-58V
- Valtinsu EM-5 and EM-5 Pro
- Y-Volt Surge V
-
Warp 9 bar mount (with the included spacers)
- Other bikes with 1 1/8" bar clamps
Not included: Handlebar clamps.
Features
- Bar ends plugged and tapped with an M8x1.25 threaded insert for wrap-around handguards
- Comes with aluminum grip guards and stainless bolts to protect your grips and throttle tube if you're not running handguards
- Oversized 1 1/8" (28.6mm) clamping diameter that tapers to 7/8" (22.2mm) for standard controls
- 7010-T6 aluminum tubing with computer-extruded variable wall thickness to reduce vibration and improve comfort
- Available in Black, Red, Blue, Purple, Magnesium, Gold, Silver and Green
Warp 9 Tapped Bar Specs (mm)
| Bend |
Width |
Height |
Rise |
Clamp Area Width |
Sweep |
| CR High |
790 |
101 |
71 |
142 |
73 |
| KTM SX |
808 |
95 |
70 |
152 |
38 |

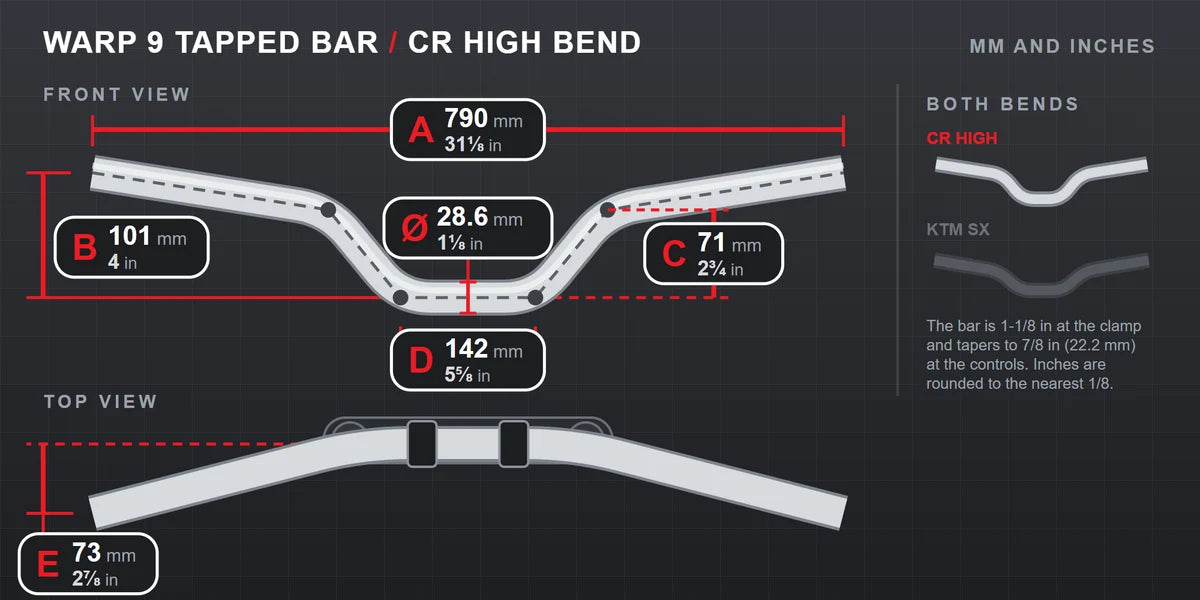

CR High
Best for: Riders who want a taller bend with more sweep (101mm height, 71mm rise, 73mm sweep, 790mm wide).
What's Included: Tapped MX handlebar, aluminum grip guards and stainless bolts.
Not included: Handlebar clamps, handguards.
KTM SX
Best for: Riders who want a wider, flatter bend with less sweep (808mm wide, 95mm height, 70mm rise, 38mm sweep).
What's Included: Tapped MX handlebar, aluminum grip guards and stainless bolts.
Not included: Handlebar clamps, handguards.
Frequently Asked Questions
Q: What clamp size are these bars?
A: 1 1/8" (28.6mm) at the clamp, tapering to 7/8" (22.2mm) for standard controls.
Q: Are bar clamps included?
A: No. These handlebars do not come with handlebar clamps.
Q: What thread are the bar ends?
A: M8x1.25 threaded inserts for mounting wrap-around handguards.
Q: What if I don't run handguards?
A: Each set comes with aluminum grip guards and stainless bolts to protect your grips and throttle tube.
Q: What's the difference between CR High and KTM SX?
A: CR High is taller with more sweep. KTM SX is wider with a flatter, lower-sweep bend. See the spec table above.
Q: What are they made of?
A: 7010-T6 aluminum tubing with variable wall thickness.
