Ebike Garage Complete Rear Moto Brake + Footbrake Conversion Kit
Ultra Bee Rear Brake + EBG Footbrake — Single Caliper Hand & Foot Brake System
The ultimate rear brake upgrade for your E-Ride Pro. This complete conversion bundle replaces your stock rear brake, stock rotor, and stock caliper mount with a full Ultra Bee moto-grade rear brake system AND integrates the Ebike Garage Footbrake using a single caliper setup.
Using the Ebike Garage pass-through footbrake design, both your hand brake and footbrake connect directly to the footbrake master cylinder and operate a single Ultra Bee rear caliper — giving you true moto-level stopping power with full hand and foot brake control.
If you're running more power, riding aggressively, or want true moto-grade braking performance and control, this is the complete rear brake solution.
🔗 Choose Your Setup — Other Versions of This Kit
This kit comes in three different configurations. Pick the one that fits how you ride:
-
Single Caliper — Hand + Foot Brake (This Kit)— One Ultra Bee rear caliper actuated by both your handbrake AND footbrake. Clean setup, full braking control from either input.
-
Dual Caliper — Hand + Foot Brake — Two independent Ultra Bee rear calipers: one for the handbrake, one for the footbrake. Fully separated systems for maximum redundancy and braking power.
-
Footbrake Only — Single Ultra Bee rear caliper actuated by the footbrake only. Handbrake is removed entirely for a clean, dedicated foot-operated rear brake.
Not sure which version is right for you? Email us or use the chatbox — we'll help you pick the right setup for your build and riding style.
⚙️ FITMENT
This kit is built for: E-Ride Pro S / SS 2.0
- E-Ride Pro S
- E-Ride Pro SS 2.0
Designed specifically for the E-Ride Pro platform.

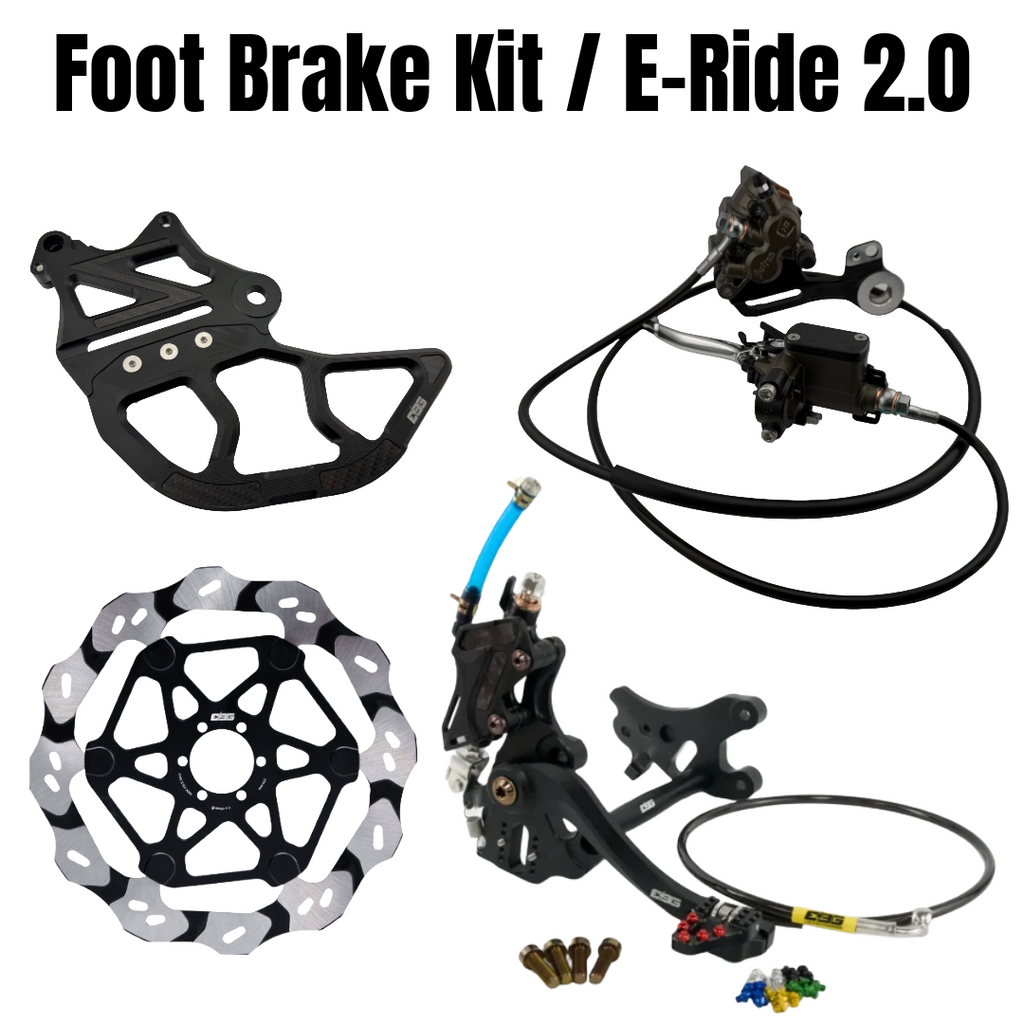

What's Included
-
Ebike Garage 230mm Rear Floating Brake Rotor — oversized moto rotor.
-
Ebike Garage 230mm Rear Ultra Bee Caliper Mounting Bracket (Black or Silver – select option)
-
Sur-Ron Ultra Bee Full Rear Brake — OEM master cylinder, hose, and caliper
-
Ebike Garage Footbrake Kit (Black or Silver – select option)
- Pedal assembly and mounting bracket
- Genuine Nissin master cylinder
- Kevlar-braided brake line
- Bronze titanium hardware kit
- Handbrake connection valve
- Syringe for brake bleeding
-
FREE M10 Hose — connects the handbrake to the footbrake master cylinder for single-caliper hand + foot operation
- All required mounting hardware
This is the complete rear-only conversion kit — everything you need in one bundle.
How the Kit Works
This kit replaces your stock rear brake, stock rear rotor, and stock caliper mount, and replaces them with:
- The Ebike Garage rear bracket / rotor guard
- The 230mm Ebike Garage floating moto rotor
- The Sur-Ron Ultra Bee rear brake (caliper, master cylinder, and hose)
- The Ebike Garage Footbrake with pass-through master cylinder
The system uses a single Ultra Bee rear caliper. Thanks to the Ebike Garage pass-through footbrake design, the hand brake and caliper both connect straight to the footbrake master cylinder — giving you full hand + foot brake control of one powerful rear caliper.
How It Connects (Hose Routing)
You'll end up with two hoses running to the footbrake master cylinder:
-
Free M10 hose → from the footbrake master cylinder to the rear caliper. This is the new dedicated line that feeds the Ultra Bee caliper from the footbrake.
-
Stock Ultra Bee hose → from the handbrake to the footbrake master cylinder. Disconnect the included Ultra Bee hose from the rear caliper and re-route it so it runs from the handbrake into the footbrake cylinder's pass-through port.
The result: the handbrake feeds into the footbrake cylinder, and the footbrake cylinder feeds the rear caliper — so either lever (or pedal) actuates the same Ultra Bee caliper.
Why Upgrade?
The stock E-Ride Pro rear brake was never designed for higher power builds or aggressive riding. This kit transforms your rear brake into a true moto-grade system with the added control of a footbrake.
Ultra Bee Rear Brake Advantages
- Significantly increased rear stopping power
- Improved braking modulation and pedal feel
- Higher heat capacity for aggressive riding
- Reduced brake fade under heavy load
- Larger piston size and stronger clamping force
- OEM Sur-Ron reliability
230mm Floating Moto Rotor
- Oversized rotor for increased braking leverage
- Improved heat dissipation
- Floating design for consistent performance under heat
- Designed for proper Ultra Bee caliper alignment
Precision CNC Caliper Bracket / Rotor Guard
- Available in Black or Silver
- Engineered specifically for 230mm Ultra Bee setup
- Integrated rotor guard for off-road protection
- Built for aggressive off-road riding
Ebike Garage Footbrake
Ebike Garage is the industry leader in high-performance footbrake systems and brake integrations for e-motos. Their precision-engineered kits deliver unmatched braking control, durability, and professional-level performance trusted by serious riders.
- CNC-machined 7075 aluminum foot brake pedal
- Genuine Nissin master cylinder
- Kevlar-braided high-pressure brake line
- Lightweight titanium hardware
- Pass-through valve allows hand + foot operation on a single caliper
- Improved control during technical off-road riding, steep descents, stunts, wheelies, and aggressive terrain
- Better throttle control with precise rear brake modulation underfoot
Performance Benefits
- Massive upgrade over stock rear brake
- True moto-level rear braking performance
- Hand brake + footbrake on a single caliper (clean, lightweight setup)
- Designed for higher power E-Ride Pro builds
- Improved downhill and technical braking control
- Better rear brake consistency under heavy load
- Professional-grade components throughout
Installation Notes
- Direct bolt-on replacement for the stock rear brake system
- A brake bleeding kit and DOT4 brake fluid are required for installation (not included)
- Brake bleeding is required after installation
- Ensure proper caliper and rotor alignment
- Professional installation recommended if unfamiliar with brake systems
