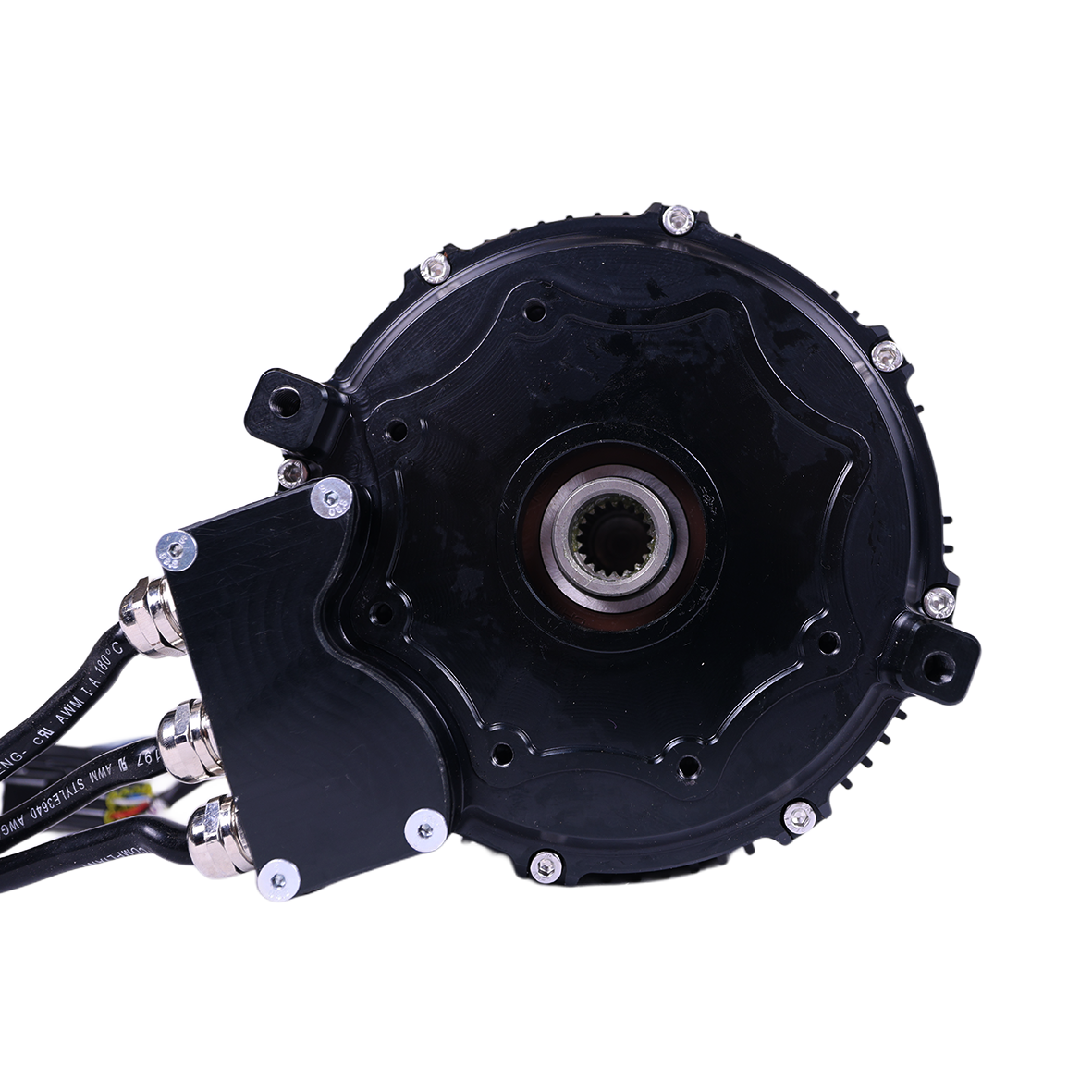

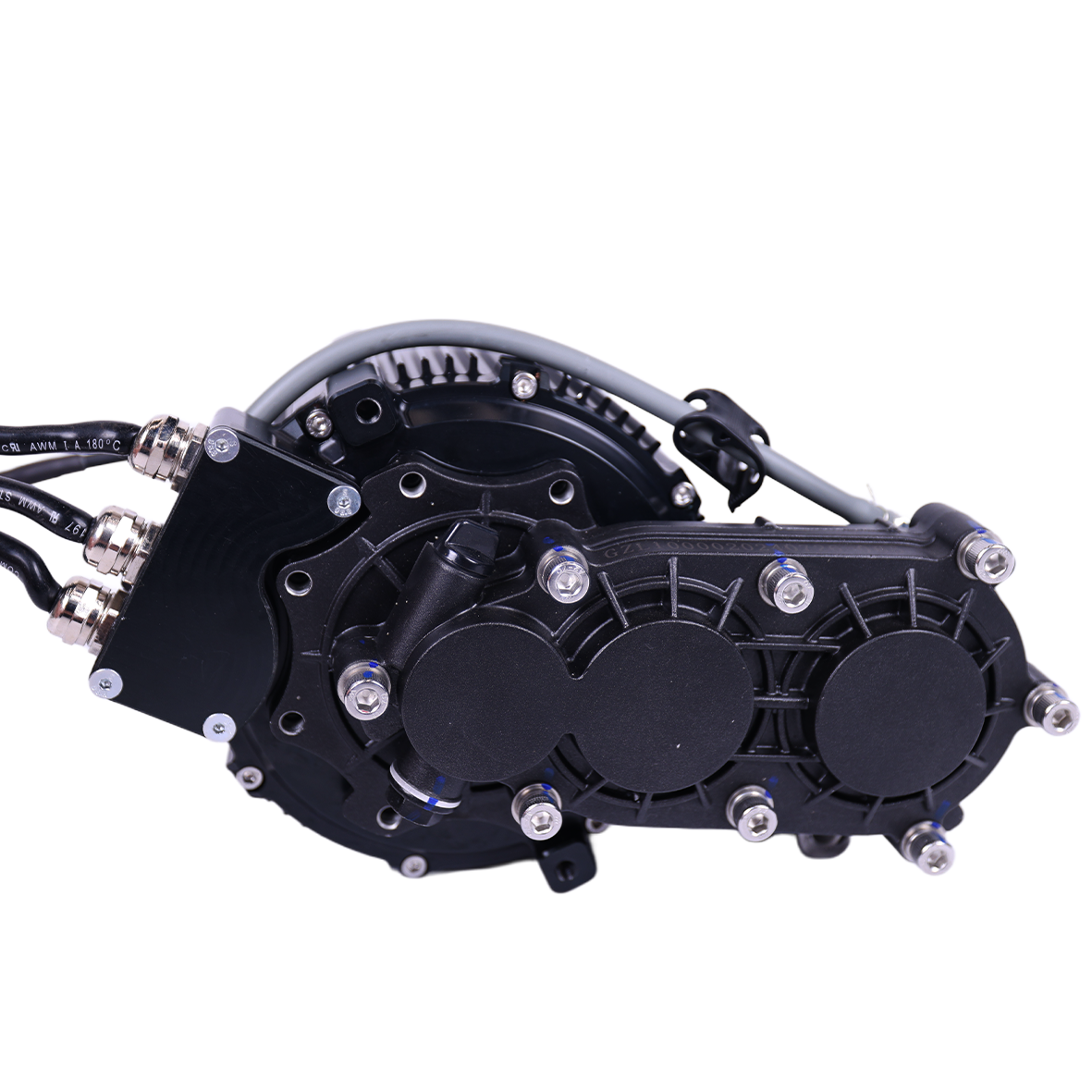

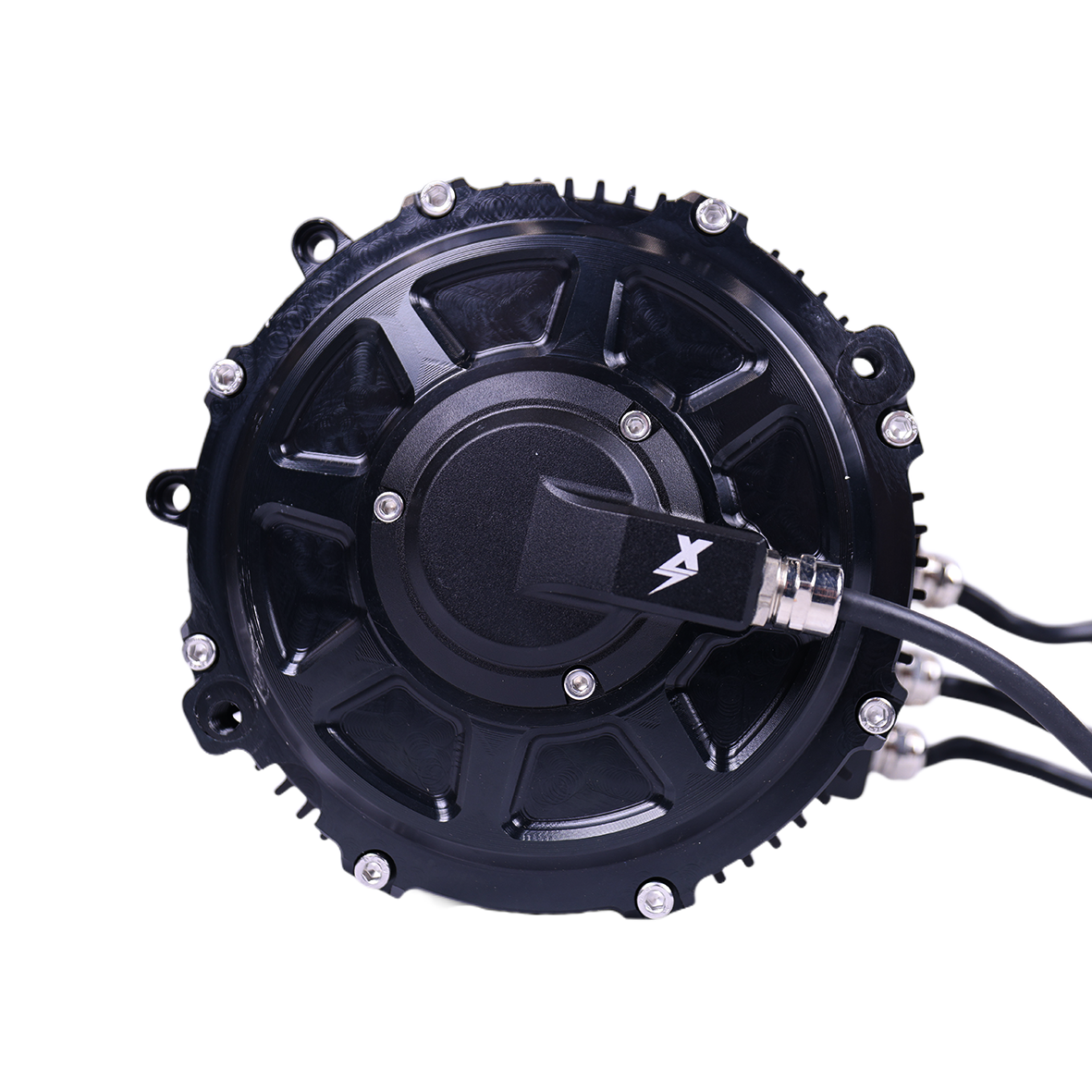

EBMX XTA-60 Upgraded Motor for Talaria Sting
The EBMX XTA-60 Talaria motor delivers an unmatched performance profile designed for serious riders. Paired with an EBMX X-9000, this setup is built for precision and durability.
✅ BIKE FITMENT
- Talaria Sting MX3
- Talaria Sting MX4
- Talaria Sting MX5
Includes hardware for fitment on the MX3 and MX4. The Talaria Sting MX5 requires the EBMX XTA-60 Talaria MX5 Motor Adapter Kit (sold separately).
Not sure if it fits your bike? Email support@tbelectricmoto.com and we'll confirm before you order.
Engineered to Dominate
Using the EBMX high-RPM rotor design from the proven XLB-60 range, this motor features an advanced stator architecture that spins with reduced resistance, delivering rapid acceleration and high-speed performance. With a higher KV setup, it delivers strong low-end torque and instant throttle response, along with an extended power band for sustained performance across all speeds.
Tech Specs
-
Stator: 55mm
-
Power: 40kW peak under load testing at 90V and 1000 phase amps
-
Real-world results: 35kW on a 72V battery with a 16 inch rear wheel and 42T sprocket
-
Max rated RPM: 12,000
-
Recommended off-road gearing: 18 inch wheel: 48T sprocket. 16 inch wheel: 42T sprocket.
-
Warranty: 2 years
What's Included
- 1x EBMX XTA-60 motor
- Hardware for fitment on the Talaria Sting MX3 and MX4
Not included: EBMX XTA-60 Talaria MX5 Motor Adapter Kit (required for the MX5, sold separately).
FAQ
Q: Does it fit the Talaria Sting MX5?
A: Yes, with the EBMX XTA-60 Talaria MX5 Motor Adapter Kit (sold separately). Hardware for the MX3 and MX4 is included.
Q: How much power does it make?
A: 40kW peak under load testing at 90V and 1000 phase amps, and 35kW in real-world results on a 72V battery with a 16 inch rear wheel and 42T sprocket.
Q: What gearing do you recommend?
A: For off-road use: a 48T sprocket with an 18 inch wheel, or a 42T sprocket with a 16 inch wheel.
Q: What is the max RPM?
A: 12,000 rated RPM.
Q: What is the warranty?
A: 2 years.
Q: What size is the stator?
A: 55mm.
Off-road competition use only. Not for use on public roads. May increase power beyond factory specs, void your bike's manufacturer warranty, and make your vehicle non-compliant with local laws. Riders must be at least 16 years old and are responsible for following all local laws and regulations.
