EXT Suspension Upgrade Bundle

Save 20%
No reviews

Price:
Sale price$2,520.00 Regular price$3,150.00

Check Bike Fitment Before Purchasing

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

The EXT Ferro Fork Requires a Hub boost spacer for your Brake Rotor, check that box if you don't already have one.



If you have 18/21 in wheel set you must get a drop crown.

We also recommend a drop crown for most other bikes and tire sizes. it gives you much more adjustment.



At EXT Racing Shox, the research and development of new technologies never
stops. They are focused on progress, bringing the best solution to the market with
the aim to satisfy the needs of the most demanding riders.


Since the growing worldwide success of electric dirt bikes, we saw the
opportunity to take our extraordinary decades-long know-how on dampers, implementing a new custom solution to achieve the highest performance products for our customers. Something that brings your E-MX to the next level!

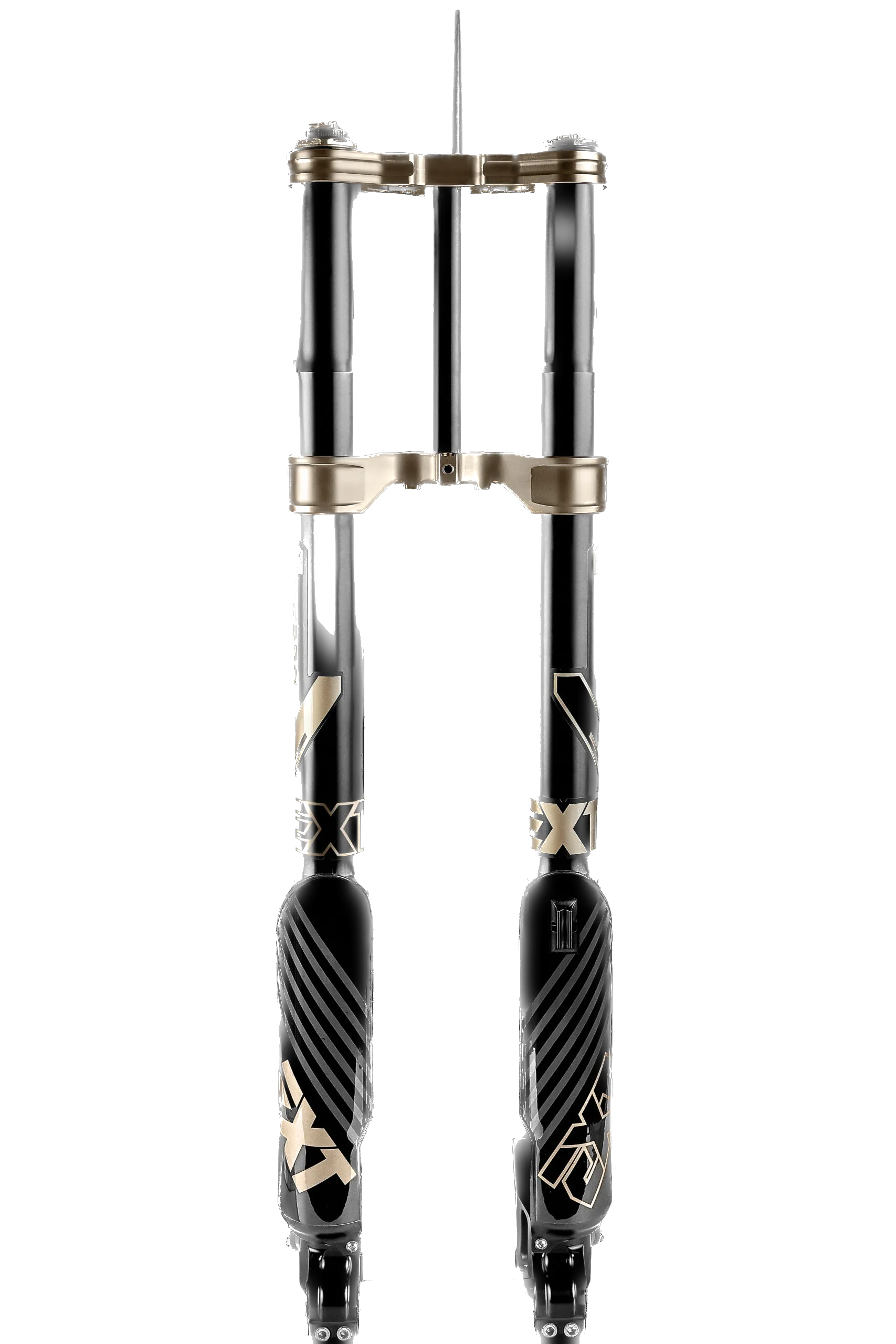

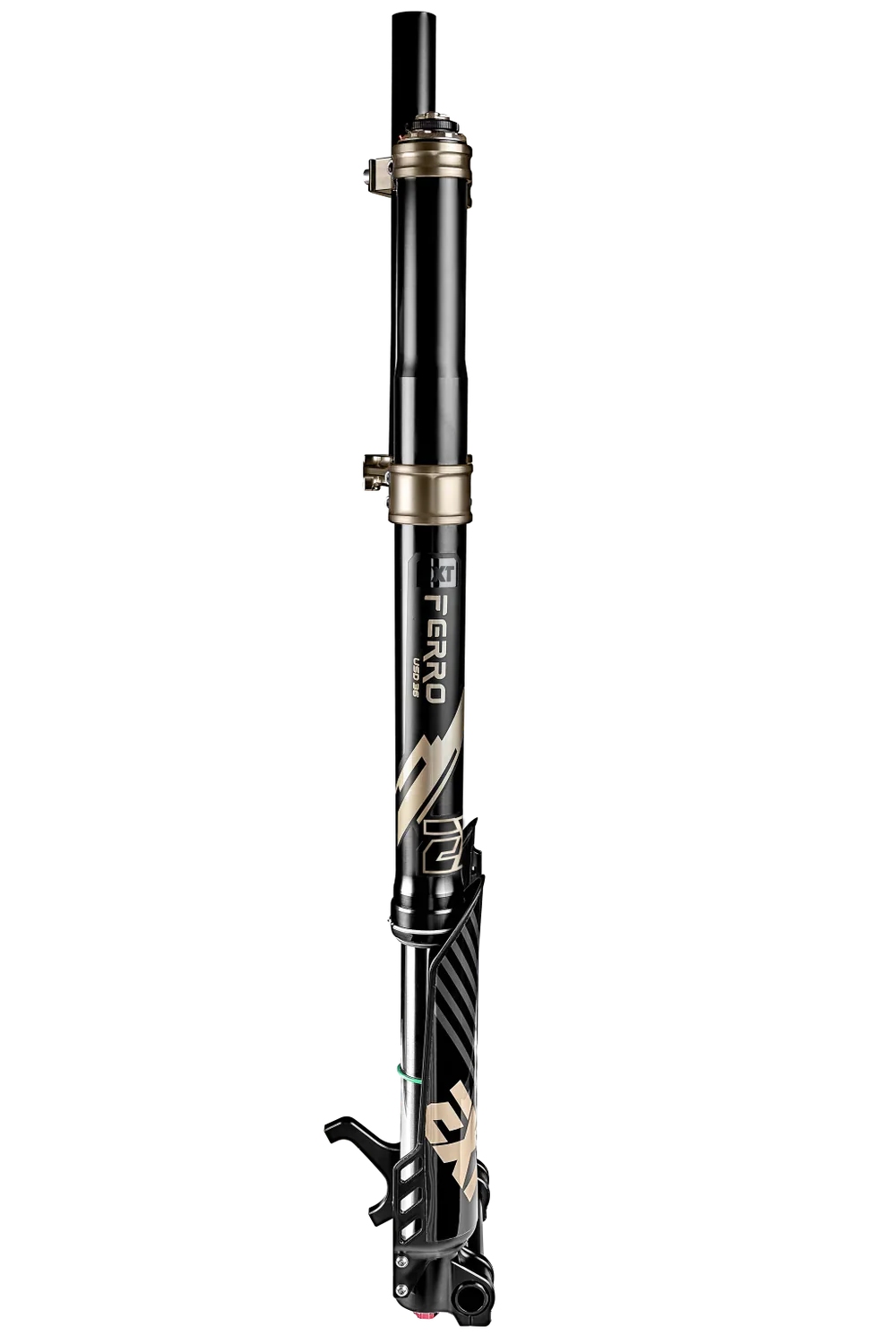

EXT Racing Shox is extremely proud to introduce the brand new FERRO USD 36,
an upside-down 36mm stanchion fork which is going to complete our E-MX
line-up.


Hard heat-treated chrome moly steel stanchions (Superfinish surface treatment),
7000 series aluminum construction upper legs and a 205mm travel design
with a dedicated triple clamp, make the core of the new 36mm USD fork,
developed for minimum friction and high stiffness.

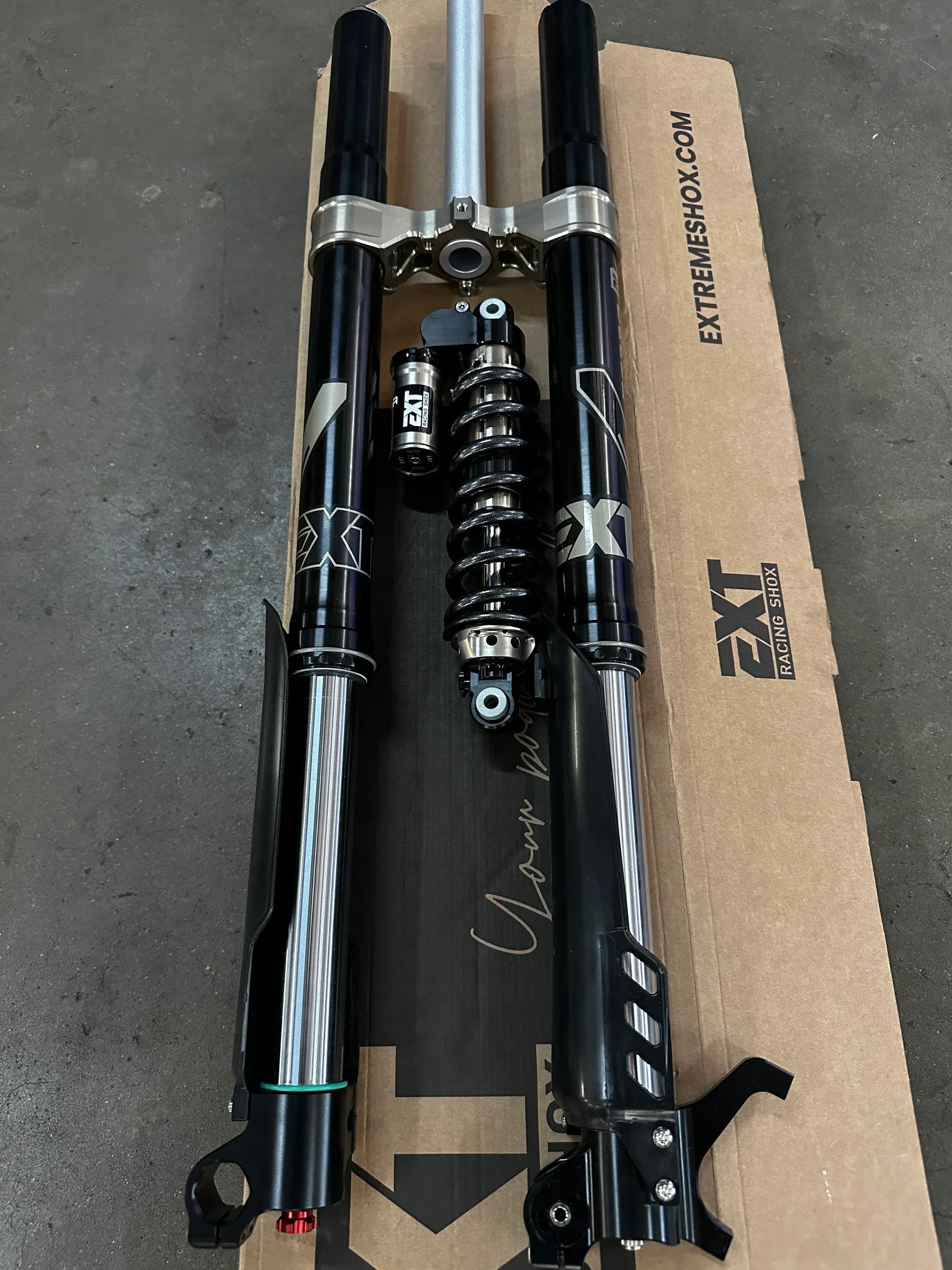

Together with the popular ARMA MX, already known for its industry leading
reliability and performance, you can now have access to
the best upgrade suspensions package on the market, purposely
built to boost the performance of your electric dirt-bike.

CORE FEATURES

Robust dual crown inverted MX design (USD)

36mm Ø hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment

HS3 3- twin positive air system ¬+ 1 large negative self-balancing air chamber, allows for an optimum level of support through all the travel

High flow 3-way cartridge damper system with independent high & low speed compression plus rebound damping adjustment.

Superfinish inner tube coating

External pressure air release system on both legs

Twin hexagonal floating axle, boost compatible ∅20mm

Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on

side loads)

Large piston design for best damping control and separate IFP/coil energized compression valve

No cavitation and low hysteresis

Self-hydraulic cartridge bleeding

Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance

and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)

205 mm of travel and 44 mm offset

200 mm post mount brake

Weight 4000gr

Pressure release one-way valves on both legs

Compatible with stock fender design

Boost Hub Spacing for more flexibility with after market wheel sets.


HS3

The FERRO USD 36 fork uses the HS3 technology, the unique hybrid
air spring system, already been famous with the appreciated ERA V2.
Two separate positive air chambers work with one, high volume
self-equalizing negative air chamber; HS3 is focused on mid-stroke
support around the dynamic sag position while offering amazing
sensitivity and bottom-out protection

Fork Structure

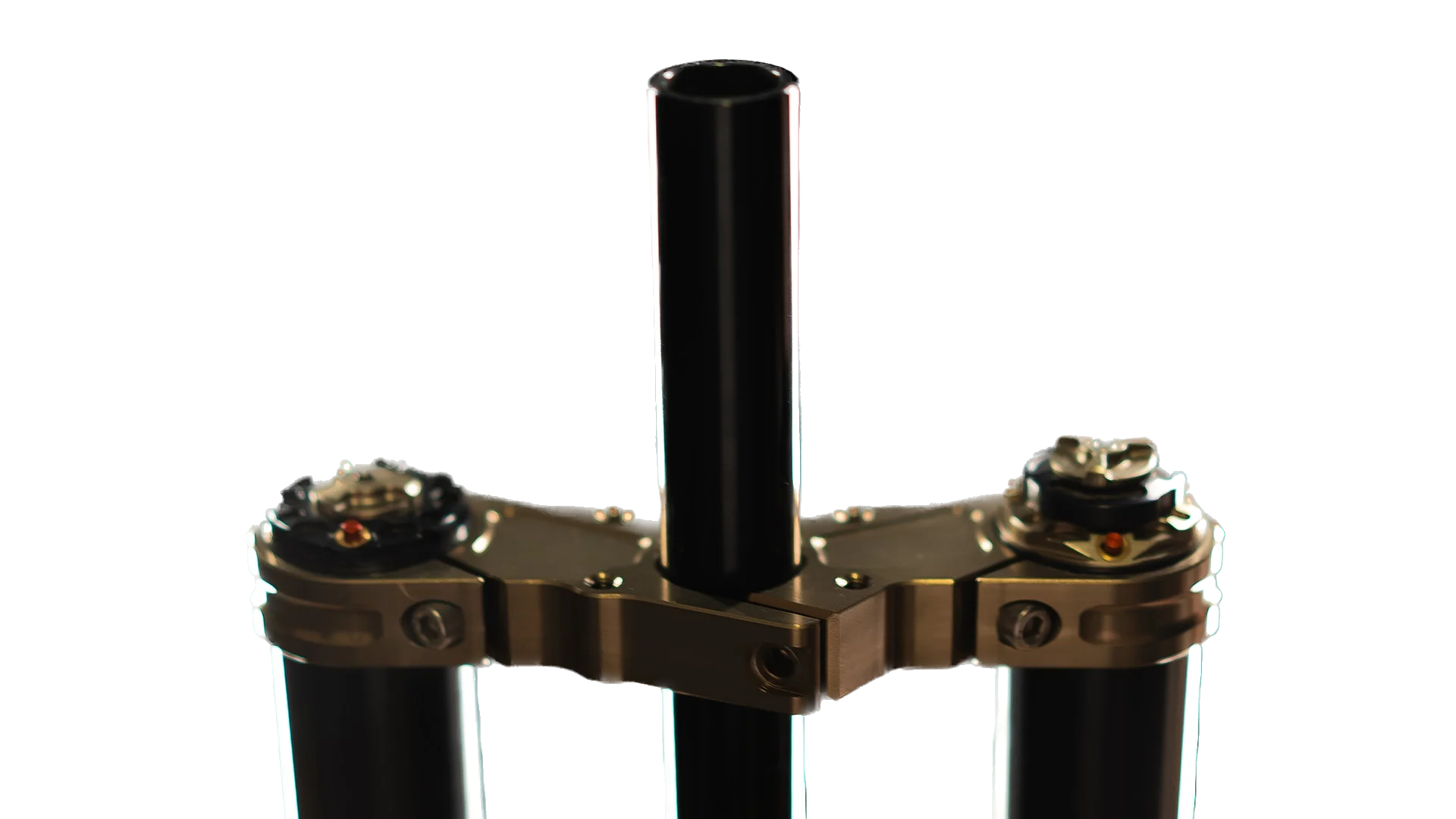

Dual Crown Structure:

The robust double crown design in 7075 aluminum ensures maximum stiffness. Crown design is compatible with stock fender designs.

Sliding Bushings:

 We looked at everything that needed a low friction solution to improve smoothness and sensitivity. This process took us back to our 14 World Rally Championship wins, that make EXT the most succesful suspension manufacturer in WRC. Our new DU bushing material used in the new FERRO USD 36 fork are sized to a defined tolerances for each fork assembly and works in harmony with our dedicated EXT oil. This guarantees zero stiction and super low friction properties even when combined with high side loads.
The dedicated DU guiding system made with a specific superlong bushing overlap ensures the maximum guidance and the best torsional rigidity of the stanchions. (We’ve called it, CGB, Continuously Guided Bushing system which also helps to increase the
dynamic stiffness).

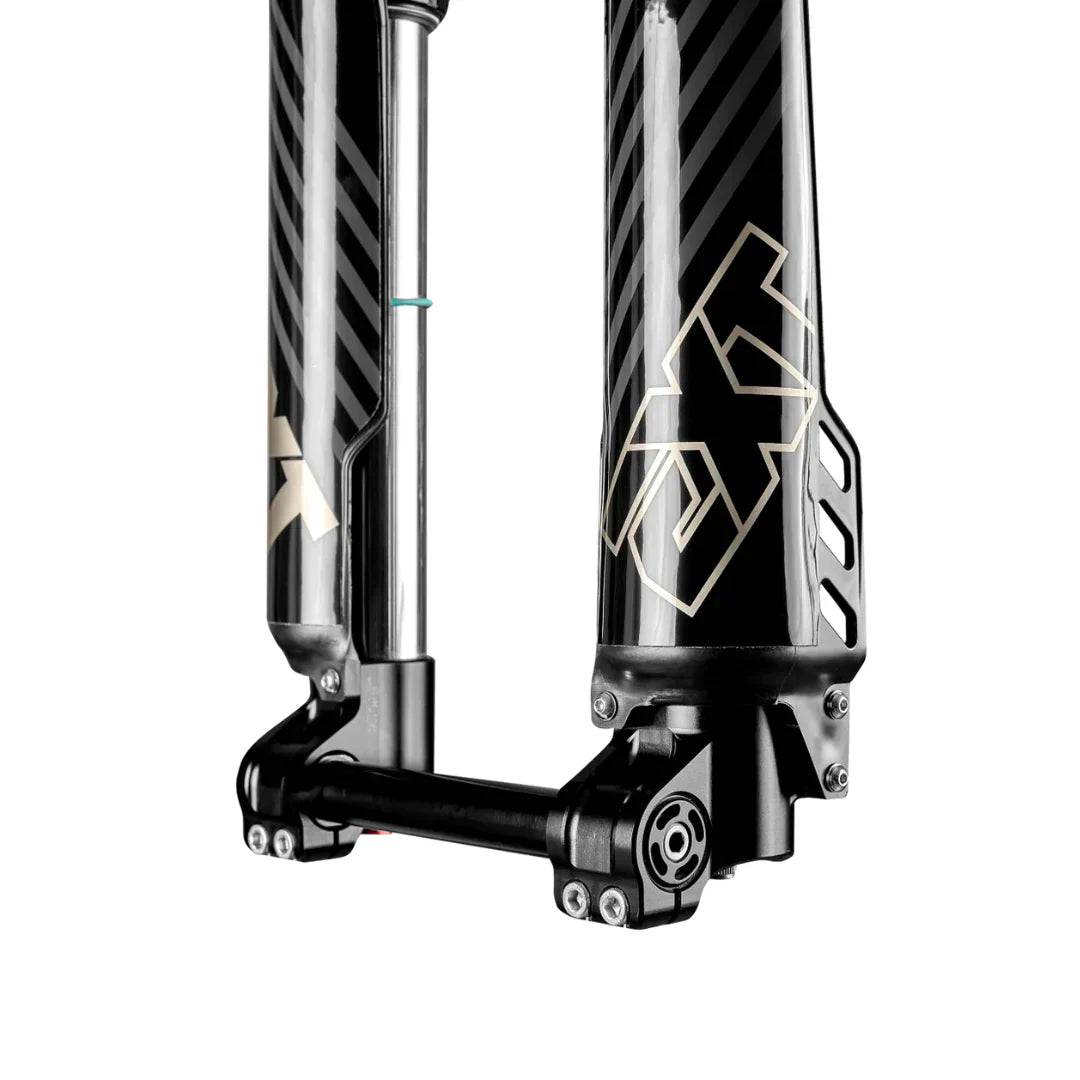

Wheel Axle: Twin hexagonal head floating wheel axle guarantees perfect wheel alignment, while assuring maximum torsional rigidity.

High Flow Damper Cartridge

The new FERRO USD 36 inherits the best technologies that made famous our well-known ERA V2 and it adopts an innovative radial floating shaft guide in the damper cartridge with a Super finish surface treatment with new aeronautical seals, which takes the friction to the lowest possible level. EXT high-volume cartridge uses a high flow piston to generate control for your bike, an important performance upgrade for your riding. The large piston design allows the best damping control. The cartridge is also equipped with a bump valve design (HDRV – High Dynamic Response Valve) with 2 different shim stacks for mid and high speed and an Internal Floating Piston (IFP) guided and combined with a bespoke thrust bearing to enhance fast response and guidance. Our goal has always been to find a balance between all the internal cartridge pressures and through a long development process we made possible the optimization of the internal forces reaching low values of hysteresis and no cavitation.


 Note 1: For the Sur Ron if you are not on the most current model a head tube reinforcement clamp is recommended. This item is standard equipment on the current model year bikes. We have them available for purchase on our accessories page.

Note 2:  Frame Bumpers from stock your forks will work on the EXT forks.

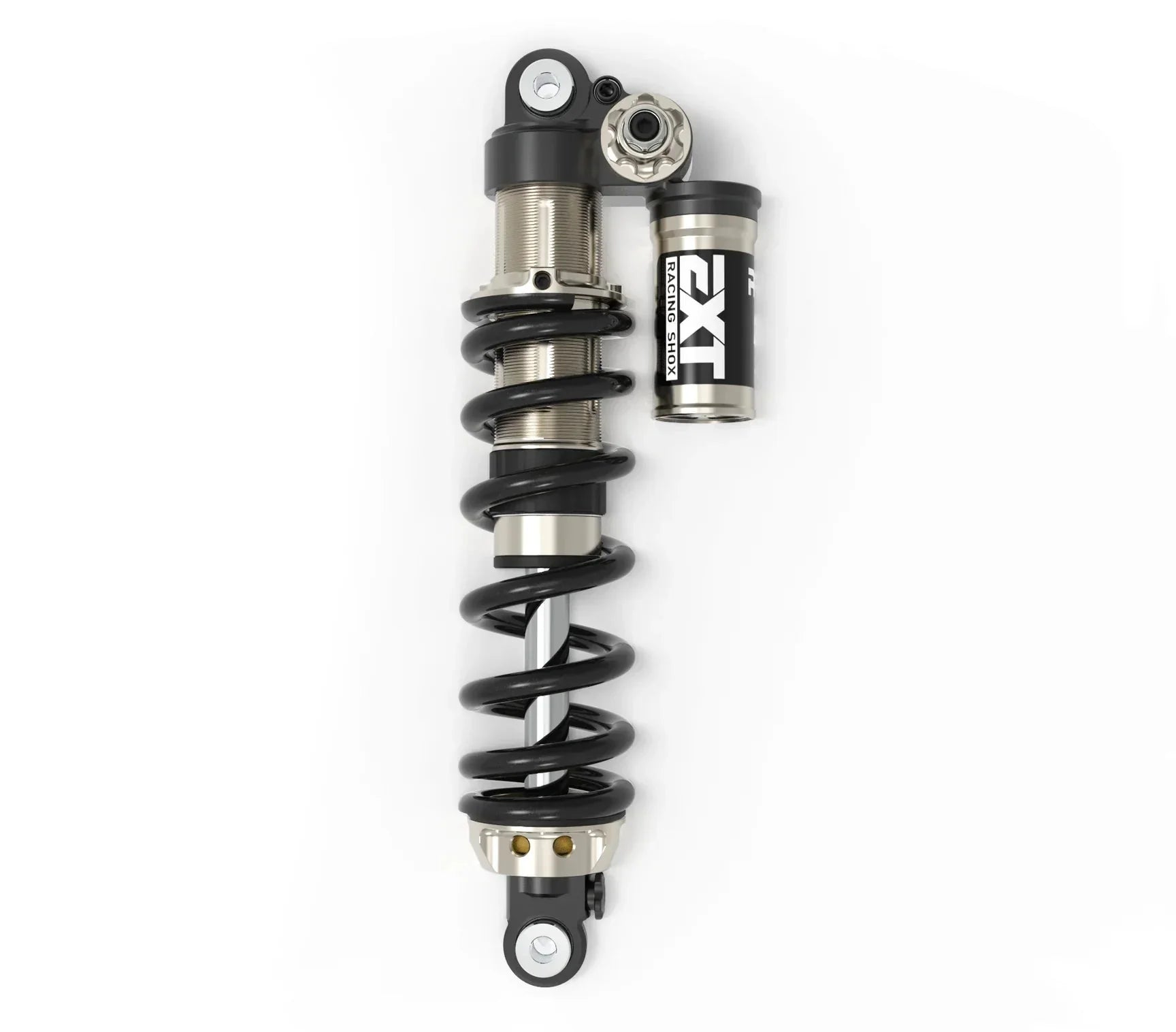

This is the best shock in the industry, Its the shock we run on all of our Personal Bikes. Its a night and day difference from the oem shock. And if your pair it to the EXT Ferro its unbelievable! if we could go back and start our upgrade process over again the EXT suspension would be one of the first upgrades we would do!



The Arma MX is a direct bolt-on replacement for the Sur Ron Light Bee X , Talaria Sting and E-Ride Pro SS. No additional Hardware is needed, simply bolt-on and go. Shock will be pre tuned by EXT-USA on the information you provide.



Bike Fitment:

Direct Bolt On - No additional parts necessary

Talaria Sting mx3

Talaria Sting mx4/R

Surron Light Bee

Segway X260

E-Ride Pro SS

Talaria XXX - it will be stiffer than your oem shock because there is no linkage. But it does fit!

Does not Fit 79 bike falcon m - you need extra shims to make it fit!

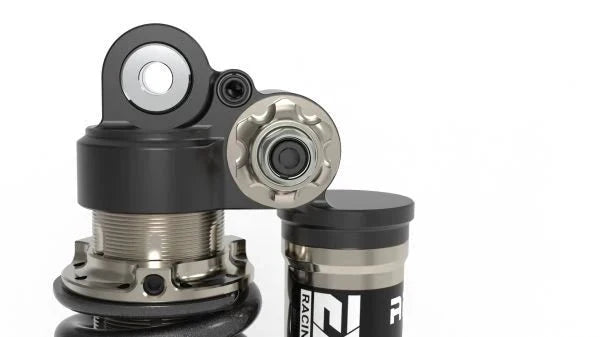

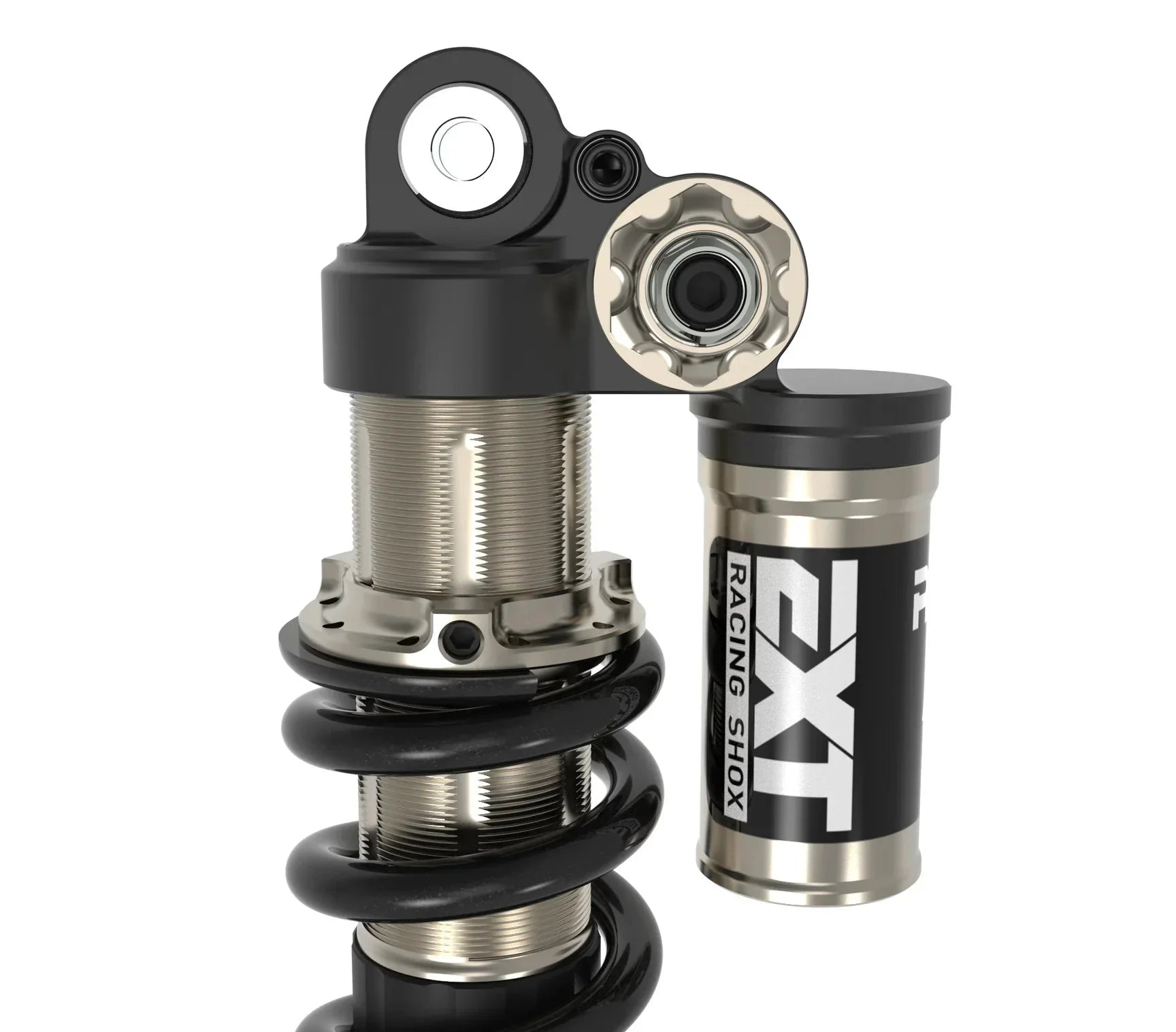

Engineered with performance and control as primary objectives, the shock structure has seen a redesign in order to be more robust. The Hydraulic Bottom-Out Circuit (HBC) has been enhanced with a wider range of adjustment, in order to prevent bottom-out issues, while allowing riders to use softer spring rates and providing excellent support and end stoke characteristics.



The Arma MX includes the following features

4 way adjustable: LSC-HSC-LSR-HBC (Hydraulic Bottom-Out Control)

High flow 29 mm main piston

24 mm valve piston

14 mm shaft (50% larger than most other coils on market to help deal with large side loading events)

Engineered rebound circuit to separate bump and rebound oil flow – Ultra low-friction coating

User adjustable HBC technology

Very low reservoir pressure for maximum sensitivity  and low cavitation(55 PSI)

Full custom hydraulic setup that is bike and rider specific for each shock

Very low hysteresis for high dynamic response

High turbulent flow for progressive dampening and mid stroke support

Low friction seal

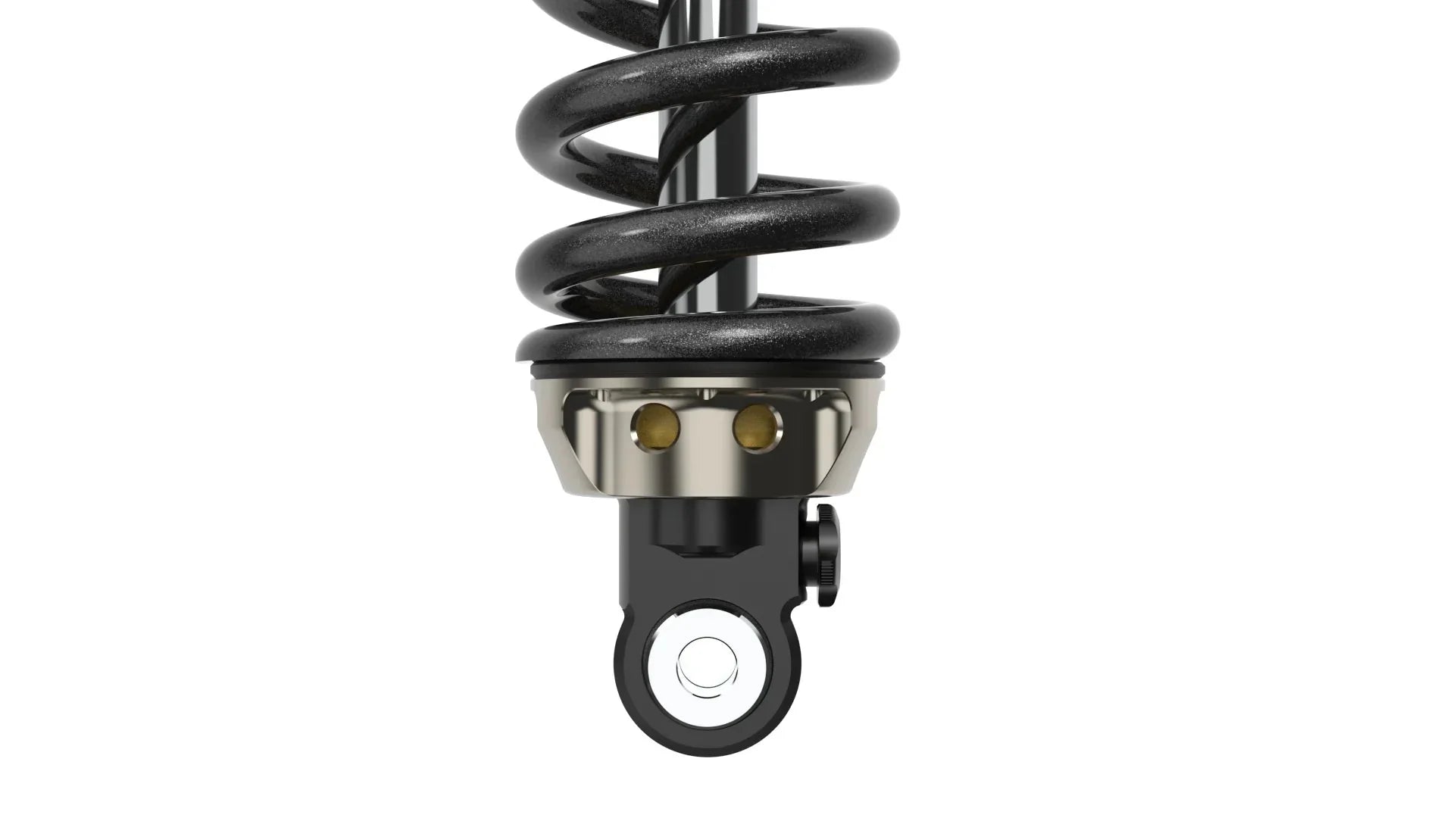

Thinner bottom-out bumper and debris clearing washer

New low profile rebound knob for easy spring swap

Included with 1 light weight spring available in 400lb, 450lb, 500lb, 550lb or 600lbs (Lower options may be available upon request)

Comes with specific mounting hardware for easy bolt in instillation.

*This is a special edition shock that will be built in limited runs.

Spring GuideRider WeightSpringUp to 140400140 to 180450180-210500210-240550240+600



This Chart is Great for Surron, E-Ride Pro and segway x260 however we recommend 1 spring rate higher for Talaria Sting MX4/R Models!



Note: This table is a general
guide. ALWAYS FACTOR IN YOURSELF WITH ALL GEAR!
For firmer or softer preference
select a spring weight above or below.
Feel free to contact us with questions.

Warning: Please refer to the Sur Ron guidance regarding maximum weight limit for the bike.
