Warp 9 Talaria Sting Upgraded Gearcase Vent

Warp 9SKU: T-VENT-2-Black
Price:
Sale price$28.00

Shipping

šŸ›» Ships within 24 Hours (M-F)

Color: Black
Price:
Sale price$28.00

Check Bike Fitment Before Purchasing

Warp 9 Upgraded Gearcase Vent for Talaria Sting

Protect your Sting's gearbox from water, dirt and mud while still letting the gearcase breathe. A molded snorkel top tube keeps the nasty stuff out of your oil, and a CNC anodized check valve keeps oil in if the bike falls over.

āœ… BIKE FITMENT

  • Talaria Sting MX3
  • Talaria Sting R / MX4
  • Talaria Sting MX5

Features

  • Molded snorkel top tube is the primary defense for keeping water, dirt and mud out of your gearcase oil
  • CNC anodized check valve keeps the oil in your gearcase when the bike falls over, but still lets air flow under pressure from heat expansion and contraction
  • Simple 5-minute install

Color Options

Every color is the same vent kit in a different anodized finish.

  • Black
  • Red
  • Blue
  • Purple
  • Magnesium
  • Gold

Best for: Sting riders who ride through water, mud or dust and want to keep their gearcase oil clean.

What's Included:

  • Warp 9 gearcase vent with molded snorkel top tube and CNC anodized check valve

Not included:

  • Gearcase oil

Installation Instructions (Talaria Sting MX3 and MX4)

1. Locate the gearcase vent hose routed from the gearcase up along the frame. On MX4 models, remove the pinch clamp if it's still installed: remove the line from both clamps, release the pinch clamp and the stock one-way valve, then slide the clamp off the hose.

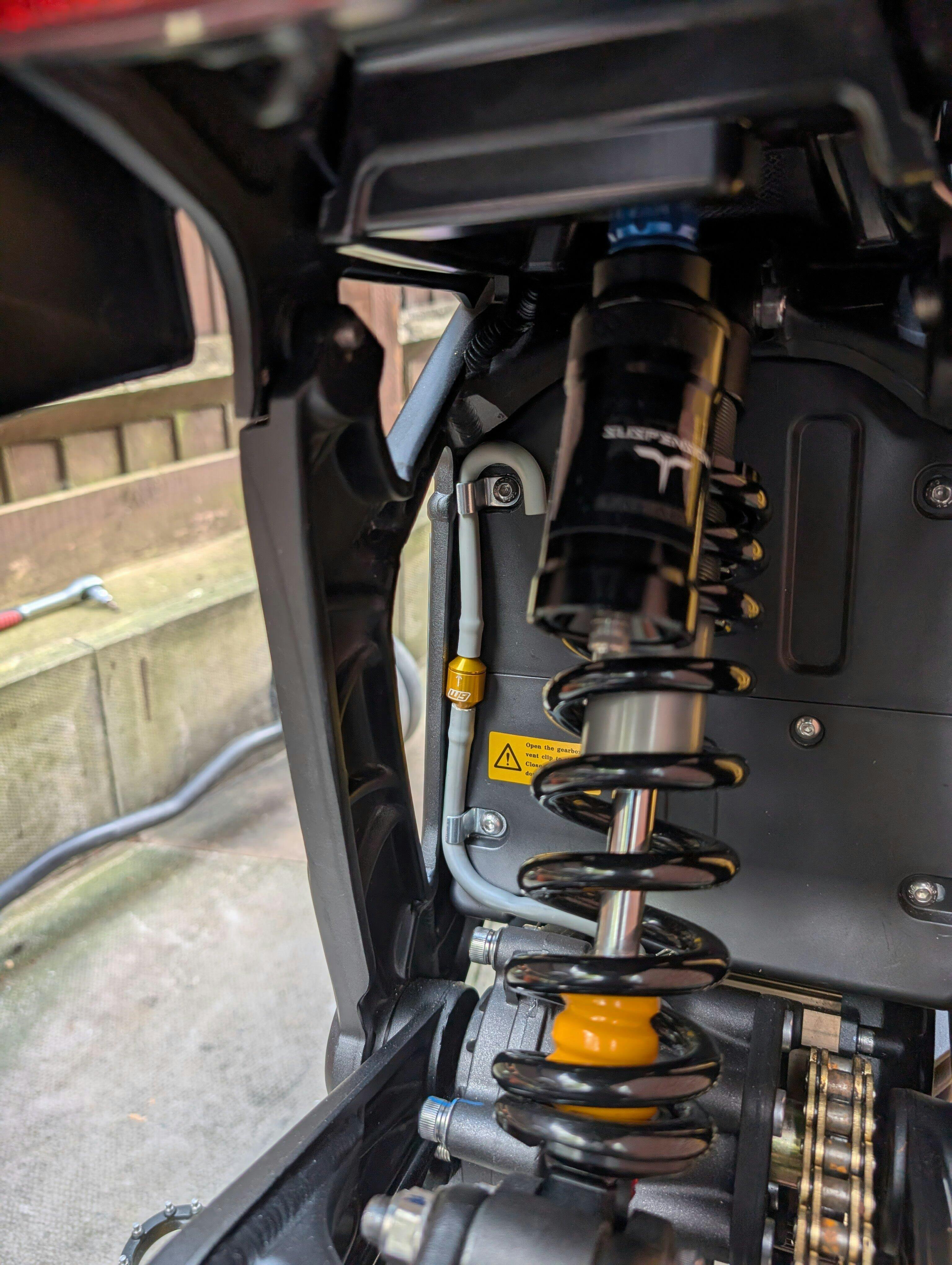

Gearcase vent hose routed along the frame of a Talaria Sting

2. Loosen the top Allen bolt securing the vent clamp just enough to remove the line. Before cutting the gearcase vent hose, install the Warp 9 gearcase vent system on the top clamp.

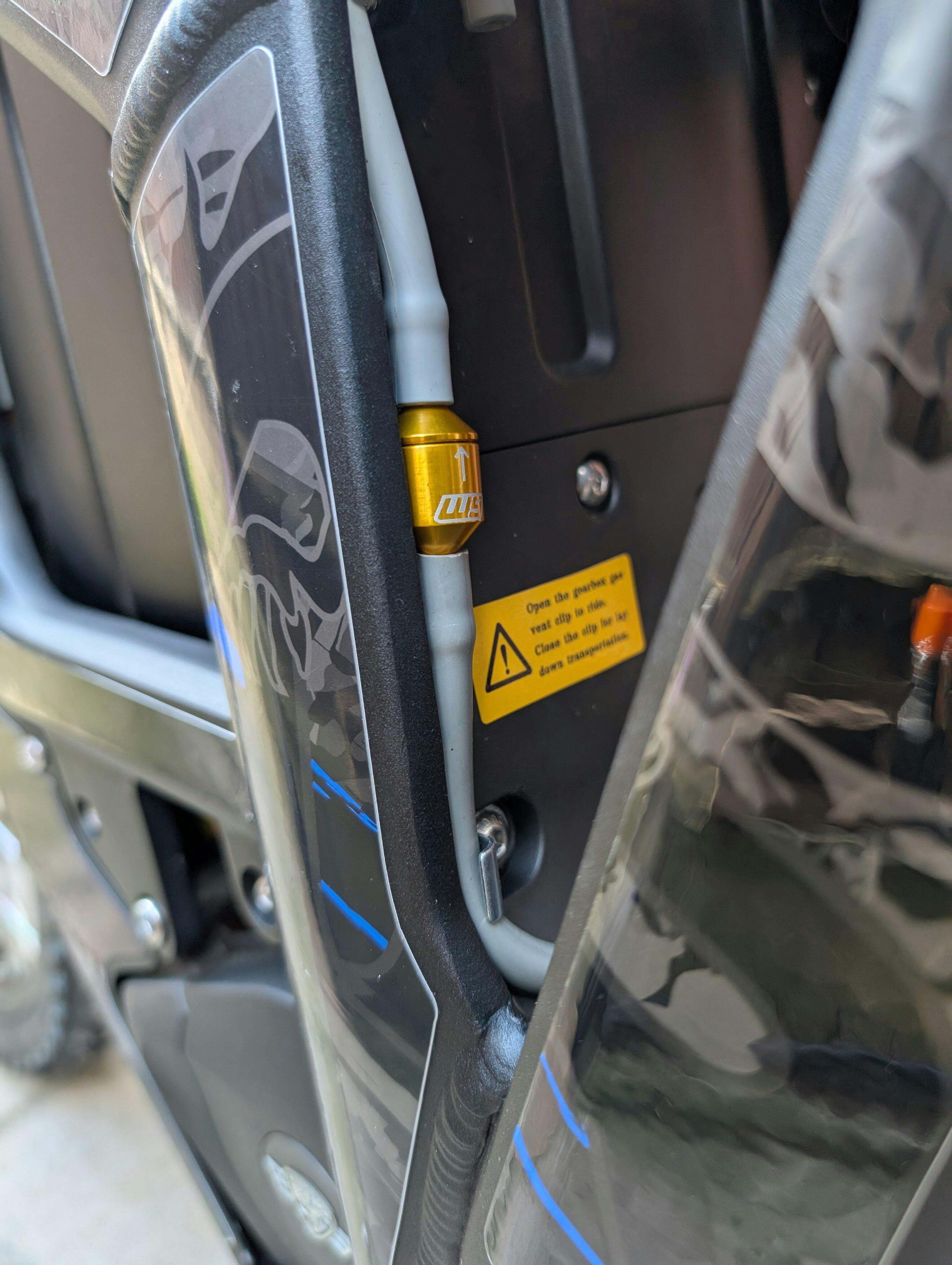

Warp 9 gearcase vent installed on the top clamp of a Talaria Sting

3. Cut the gearcase vent hose to length, approximately 52mm (2 in) from the top of the bottom clamp. Push the vent hose as far as possible onto the valve.

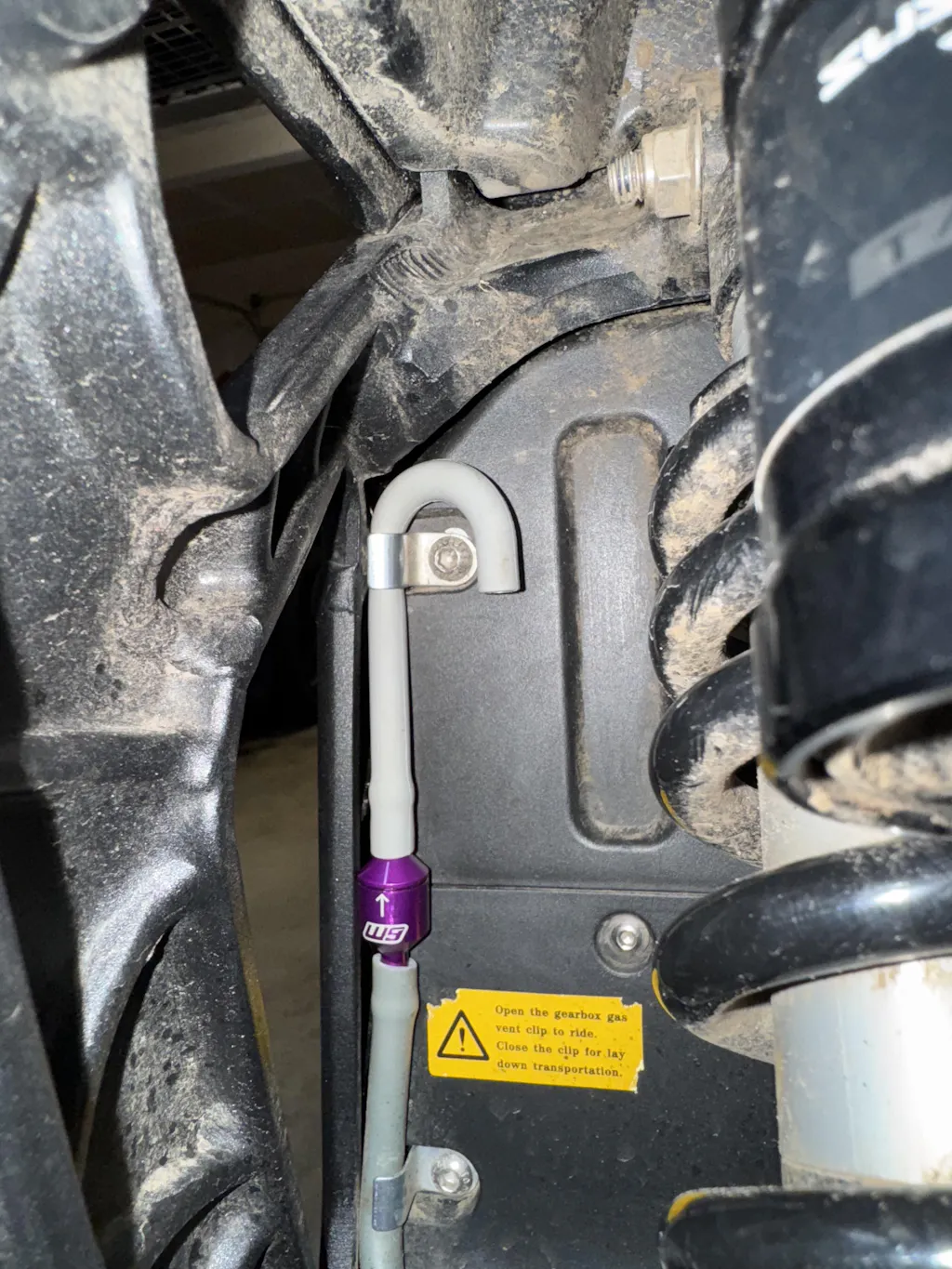

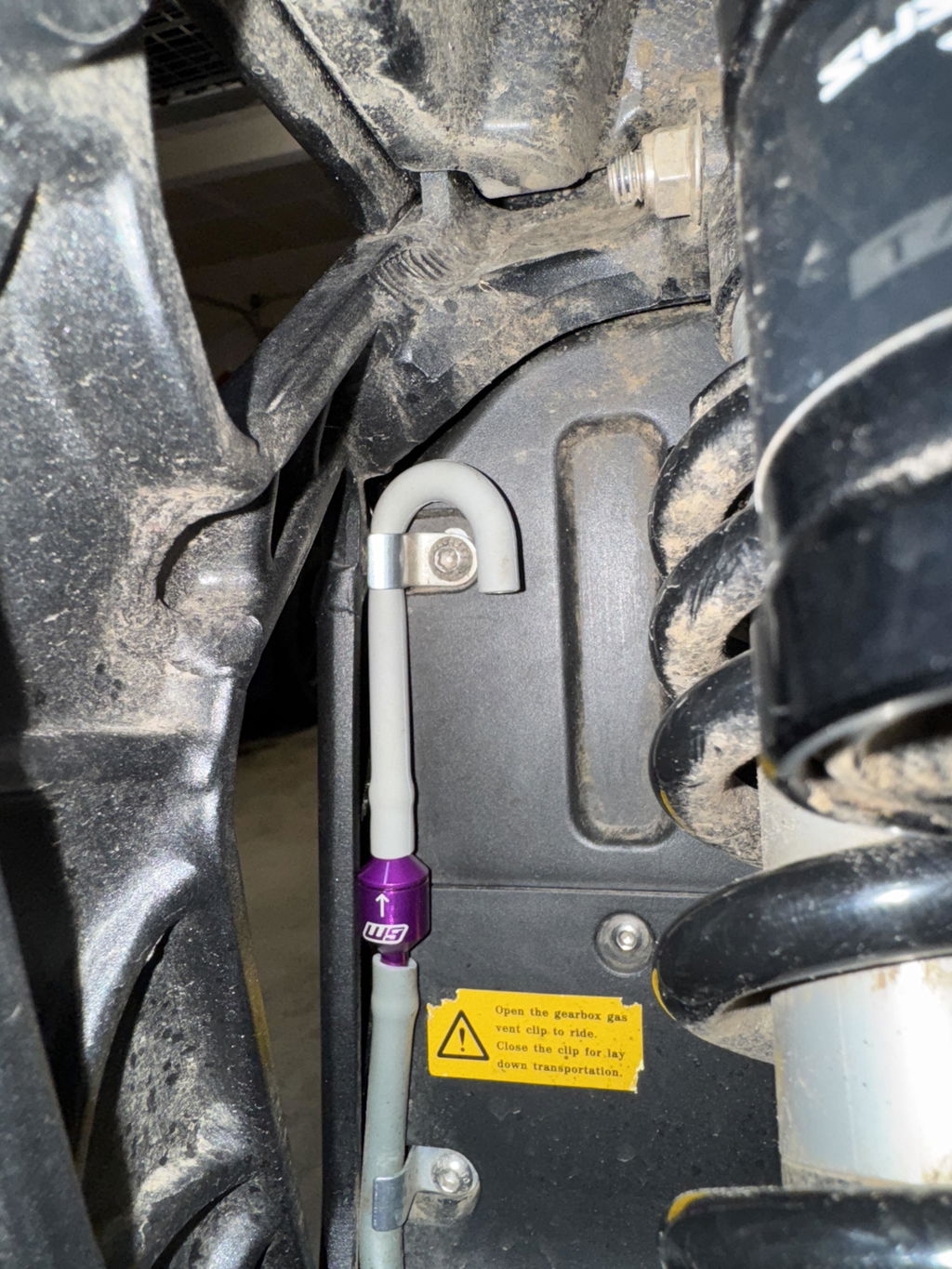

Gearcase vent hose cut to length and pushed onto the Warp 9 vent valve


FAQ

Q: What does the gearcase vent do?
A: It lets your gearcase breathe while keeping water, dirt and mud out of the oil.

Q: Will oil leak out if the bike falls over?
A: No. The CNC anodized check valve keeps oil in the gearcase when the bike falls over, but still lets air flow under pressure from heat expansion and contraction.

Q: How long does it take to install?
A: About 5 minutes. Follow the installation steps above.

Q: Do I need to cut the stock vent hose?
A: Yes. Cut it to approximately 52mm (2 in) from the top of the bottom clamp, after installing the vent on the top clamp.

Q: Which bikes does it fit?
A: Talaria Sting MX3, Sting R / MX4 and Sting MX5.

Q: What colors are available?
A: Black, Red, Blue, Purple, Magnesium and Gold.
